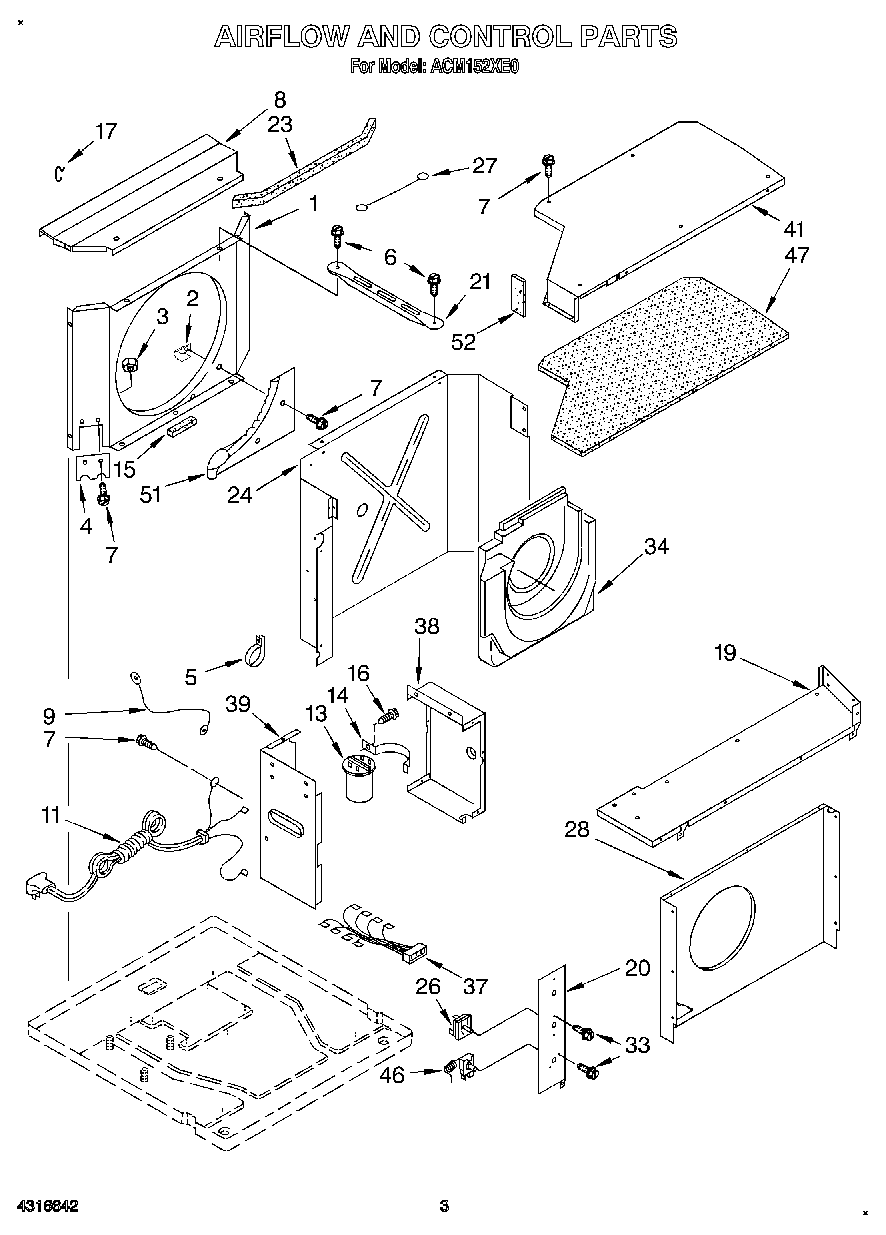

ACM152XE0 02 – AIRFLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Clip, Wet Loop
3WP488130 Whirlpool Air Conditioner Nut
4Clip, Nylon
5Clamp, Wiring
6WP308685 Whirlpool Microwave Screw
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Wire, Ground
11Cable, Appliance
13Capacitor, Running
14WP1160674 Whirlpool Bracket
15Seal, Condensate Cup
16Screw No.8 – 5/8
17Clip, Shroud (2)
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
27Wire, Thermostat To Switch
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
37Harness, Wiring – Control Box
38Control Box (R.S.)
39Control Box (L.S.)
41Cover, Top
46Control, Temperature
47Insulation, Top Cover
51Cup, Condensate
52Seal, Anti-Rub
