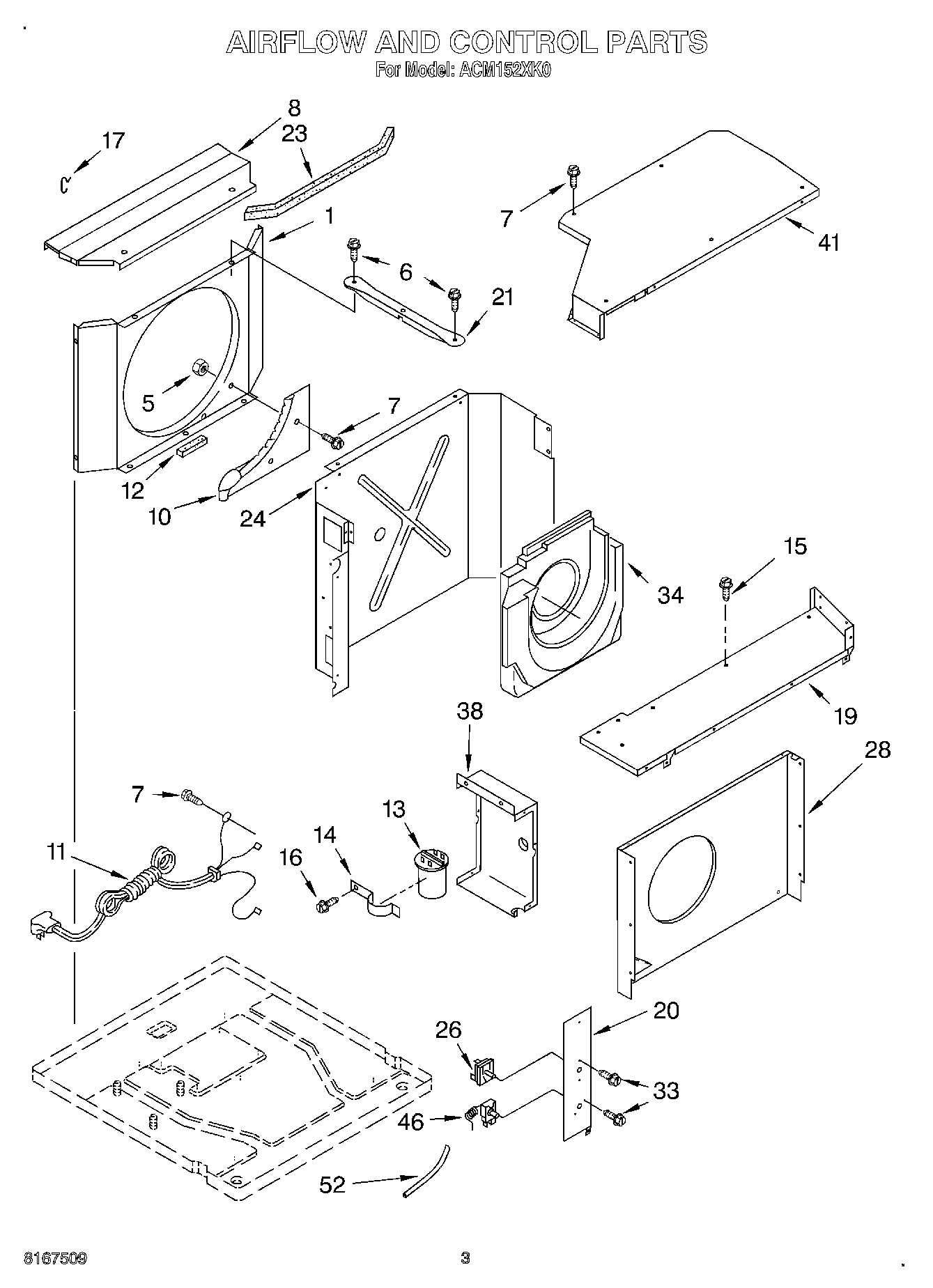

ACM152XK0 02 – AIRFLOW & CONTROL

Products

Position	Product
1	Shroud, Condenser
5	WP488130 Whirlpool Air Conditioner Nut
6	WP308685 Whirlpool Microwave Screw
7	Screw, 8 x 3/8
8	Top, Condenser
10	Cup, Condensate
11	Cable, Appliance
12	Seal, Condensate Cup
13	Capacitor
14	WP1160674 Whirlpool Bracket
16	WP489069 Whirlpool Compactor Screw
17	Clip, Shroud (2)
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch, Rotary
28	Shroud Assembly, Evaporator
33	Screw, 6-32 x .175
34	Housing, Air
38	Control Box (R.S.)
41	Cover, Top
46	Control, Temperature
52	Sleeve, Insulating
