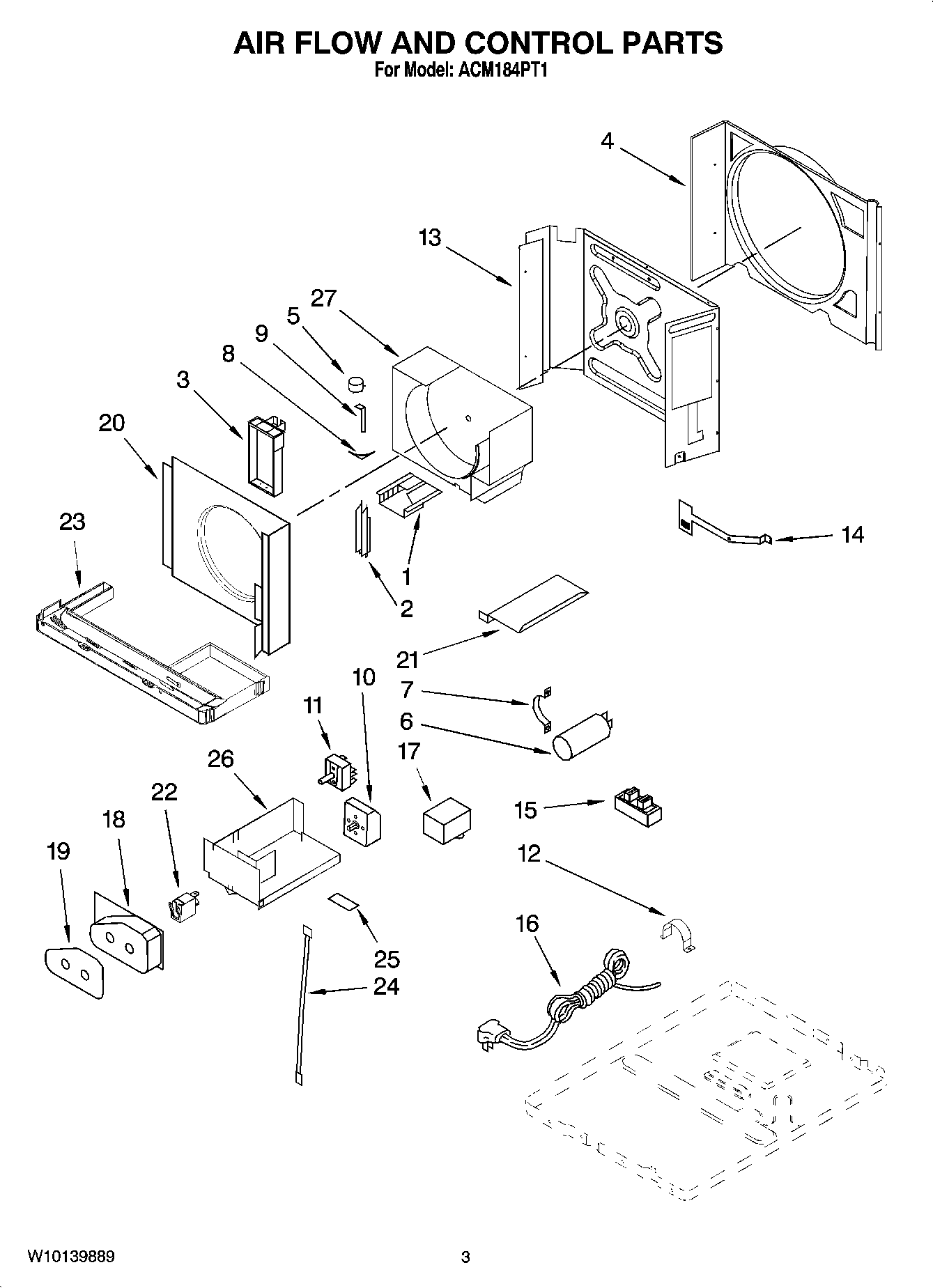

ACM184PT1 02 – AIR FLOW AND CONTROL PARTS

ACM184PT1 02 – AIR FLOW AND CONTROL PARTS

Written by

in

ACM184PT1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Housing, Air
2	Louver
3	Cartridge, Louver
4	Shroud, Evaporator
5	Motor, Louver
6	Capacitor, Running
7	Bracket, Capacitor
8	Linkage, Louver
9	Linkage, Louver
10	THERMOSTAT
11	Switch, Rotary
12	Wire Clamp
13	Wall, Dividing
14	Door, Exhaust
15	Terminal Board
16	Cord, Appliance
17	CAPACITOR
18	Cover, Control
19	ESCUTCHEON
20	Shroud, Condenser
21	Cover, Air Duct
22	Switch
23	Pan, Evaporator
24	Thermistor
25	WASHER
26	Box, Control
27	Housing, Air
