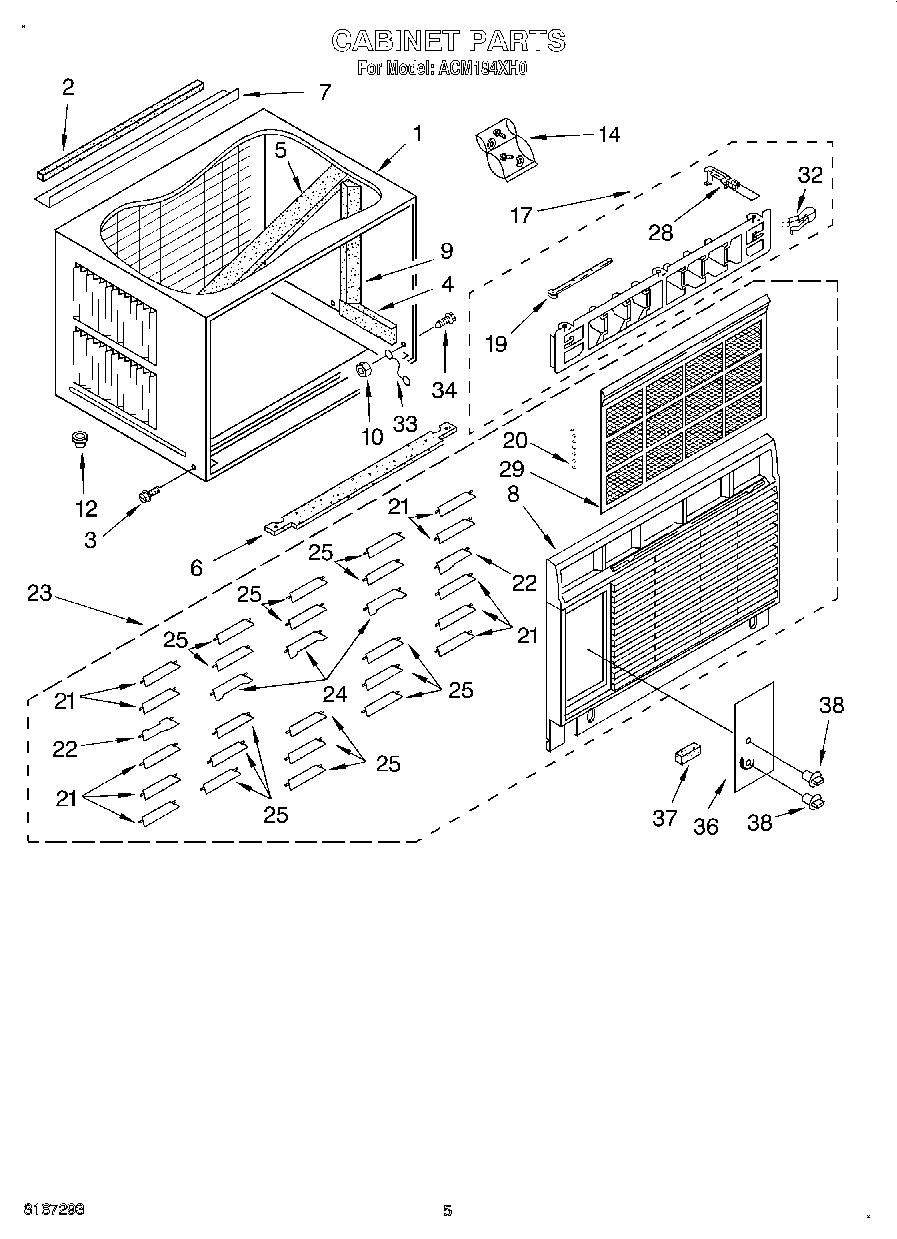

ACM184XH0 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Insulation, Cabinet (Top)
6	Seal
7	Angle (Top)
8	Front, Cabinet
9	Insulation, Cabinet Side (2)
10	WP486255 Whirlpool Air Conditioner Nut
12	Cup, Condensate Drain
14	Bag, Accessory
17	Vertical, Louver
19	Link, Verticle Louver (2)
20	Link, Horizontal Louver (5)
21	Louver, Horizontal (10)
22	Louver, Horizontal W/ Handle (2)
23	Front, Complete
24	Louver, Horizontal W/Handles (3)
25	Louver, Horizontal (15)
28	Actuator, Louver
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	Knobs (3)
