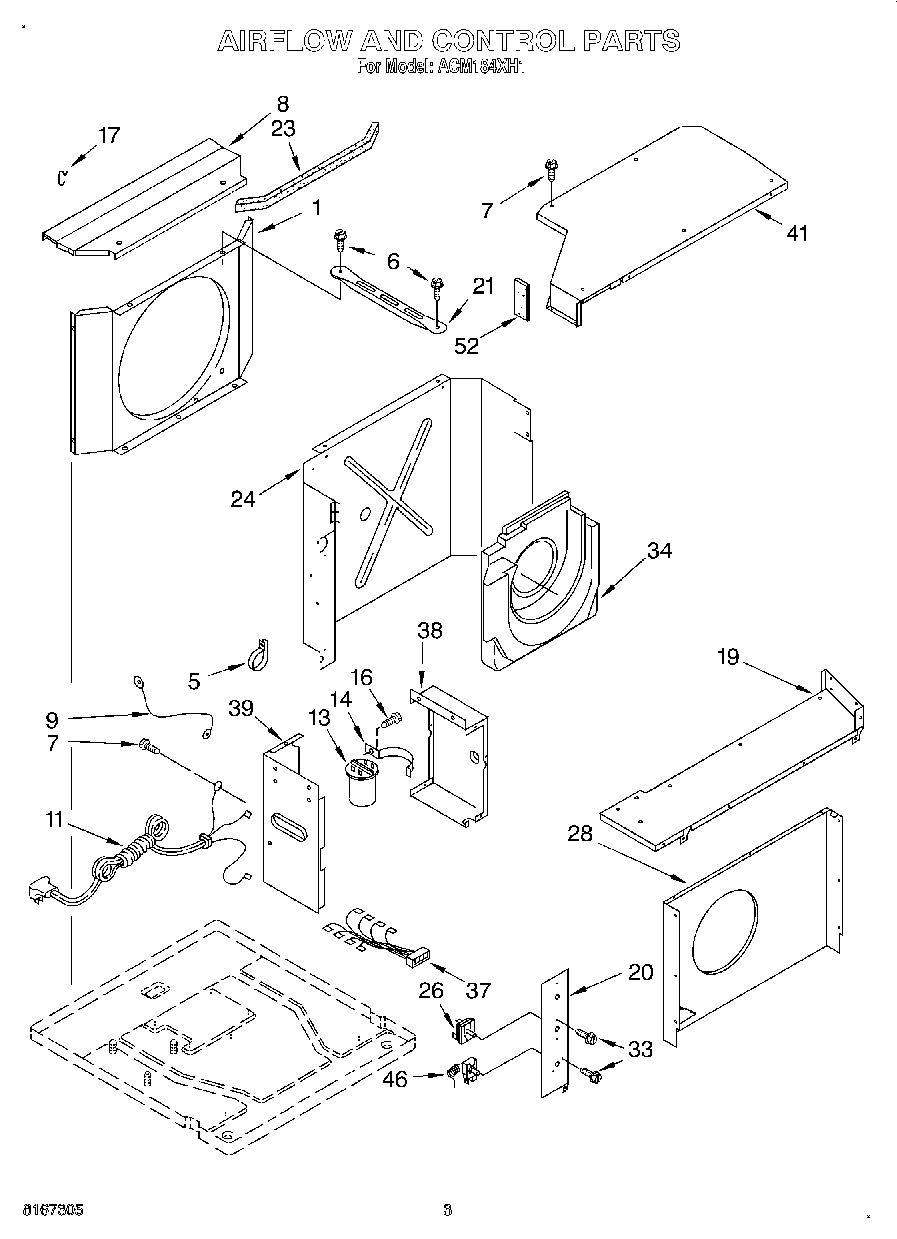

ACM184XH1 02 – AIRFLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
5Clamp, Wiring
6WP308685 Whirlpool Microwave Screw
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Wire, Ground
11Cord, Appliance
13Capacitor, Running
14Bracket, Capacitor
16WP488787 Whirlpool Refrigerator Screw
17Clip, Shroud (2)
19Evap. Shroud Top
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
37Harness, Wiring – Control Box
38Control Box (R.S.)
39Control Box (L.S.)
41Cover, Top
46Control, Temperature
52Seal, Anti-Rub
