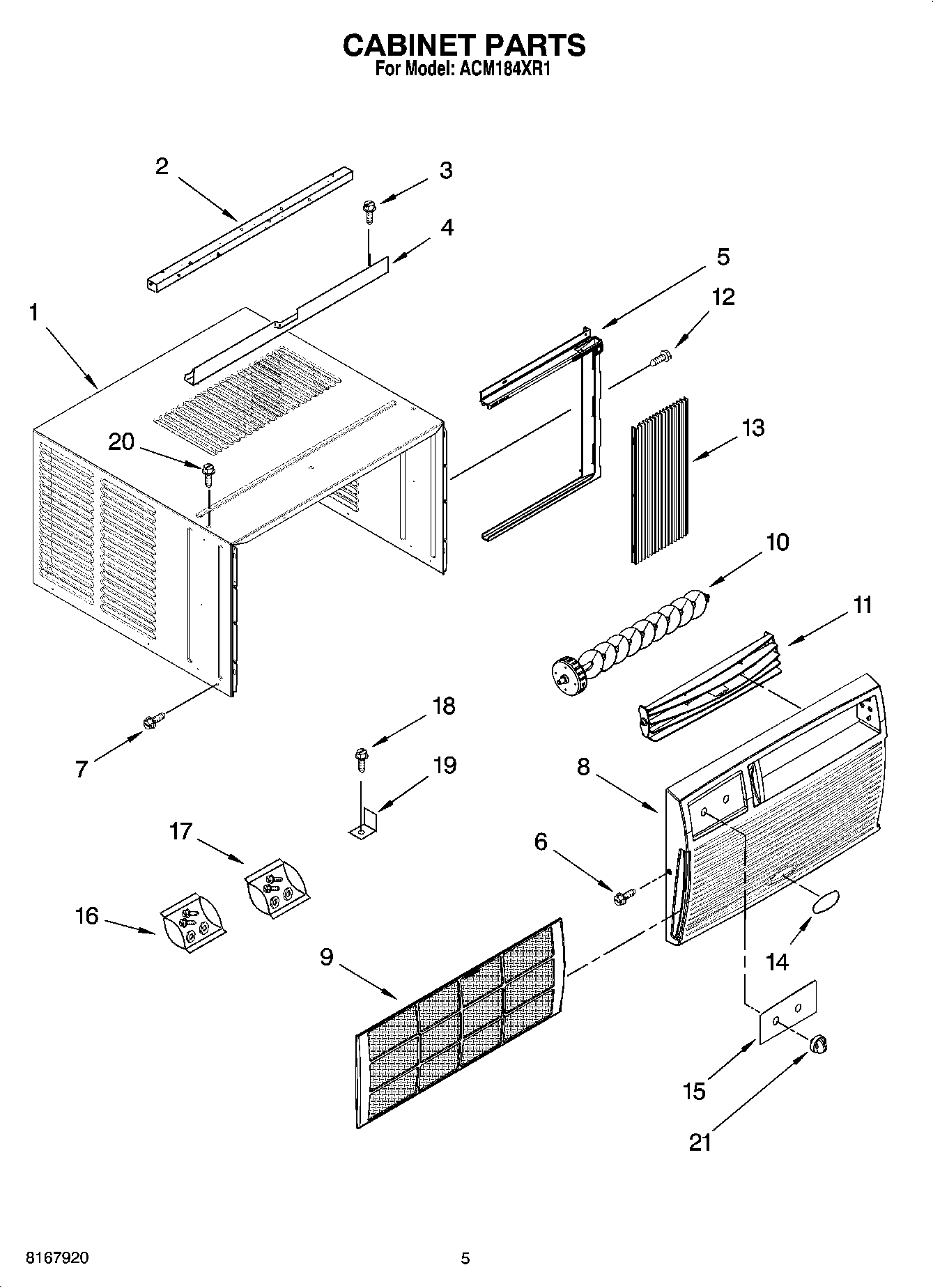

ACM184XR1 03 – CABINET PARTS
Written by
in
ACM184XR1 03 – CABINET PARTS
Products
Position
Product
1
CABINET
2
Gasket, Meeting Rail
3
WP3390631 Whirlpool Screw
4
Channel, Top
5
Frame, Curtain (Left Side)
5
Frame, Curtain (Right Side)
6
WP3196557 Whirlpool Screw
7
Screw, 8 x 3/8
8
FRONT
9
Filter
10
Louver, Vertical
11
Louver Horizontal
12
WP965173 Whirlpool Dishwasher Screw
13
CURTAIN
14
WP2213265 Whirlpool Refrigerator Nameplate
15
ESCUTCHEON
16
Bag, Accessory
17
Bag, Accessory (for Curtains)
18
Screw, Wood 8-15 x .750
19
Bracket
20
WP9740848 Whirlpool Dishwasher Screw
21
Knob, Control
←
