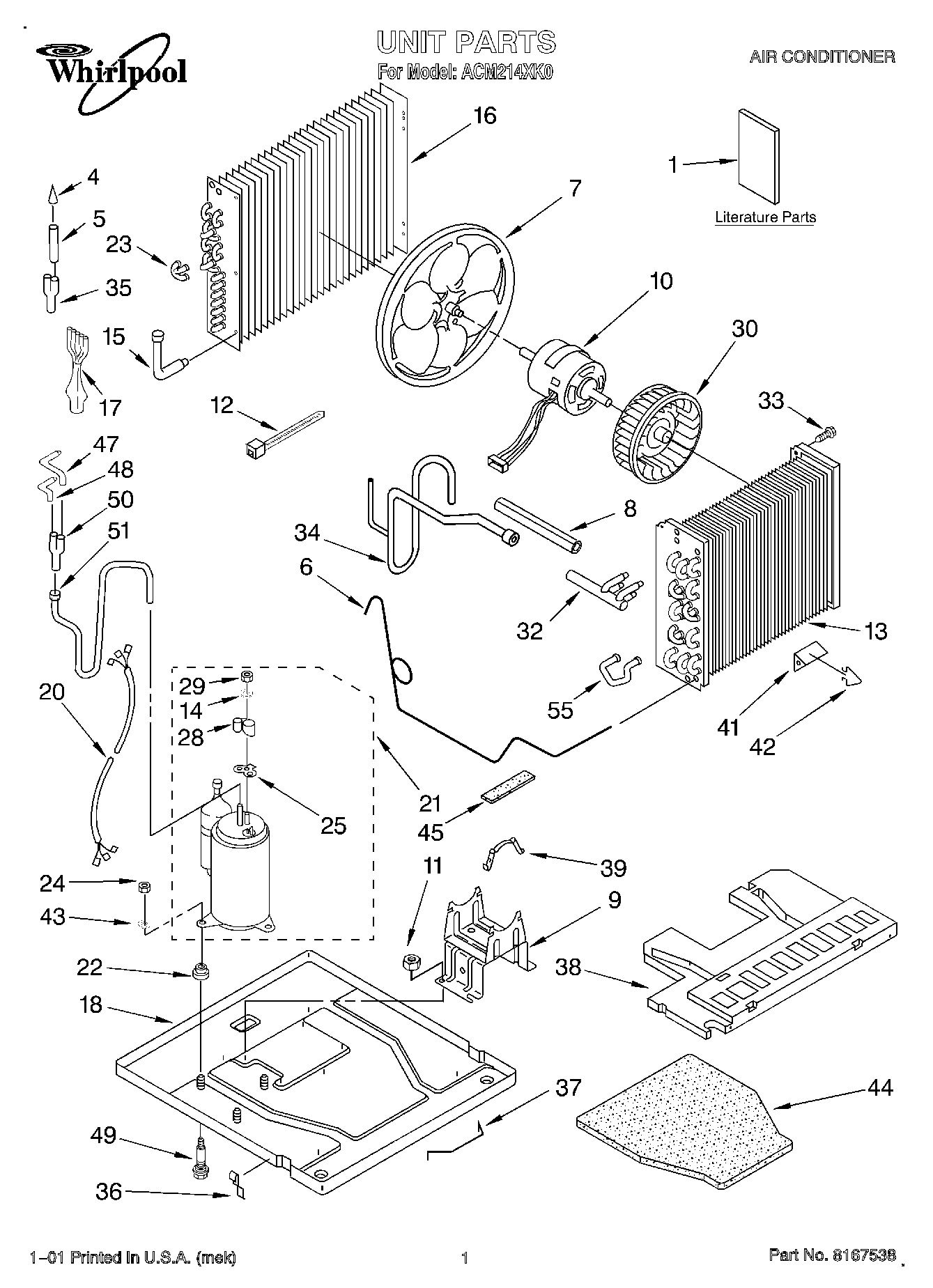

ACM214XK0 01 – UNIT, LITERATURE

Products

Position	Product
1	Wiring Diagram
1	Energy Guide
1	Use & Care Guide
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (5)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket
15	Tube, Connecting
16	Condenser
17	Distributor
18	Base
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Bend, Return (3-Way)
24	Locknut (3)
25	Gasket, Terminal Cover
28	Cover, Terminal
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator, Temperature
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Insulation, Base (Bottom)
45	Seal, Restrictor Tube
47	Tube, Feeder
48	Tube, Feeder
49	Bolt, Compressor
50	Tube, Flow Divider
51	Tube, Discharge
55	Bend, Return (Evaporator – 2)
