ACM214XK0 02 – AIR FLOW AND CONTROL

ACM214XK0 02 – AIR FLOW AND CONTROL

Written by

in

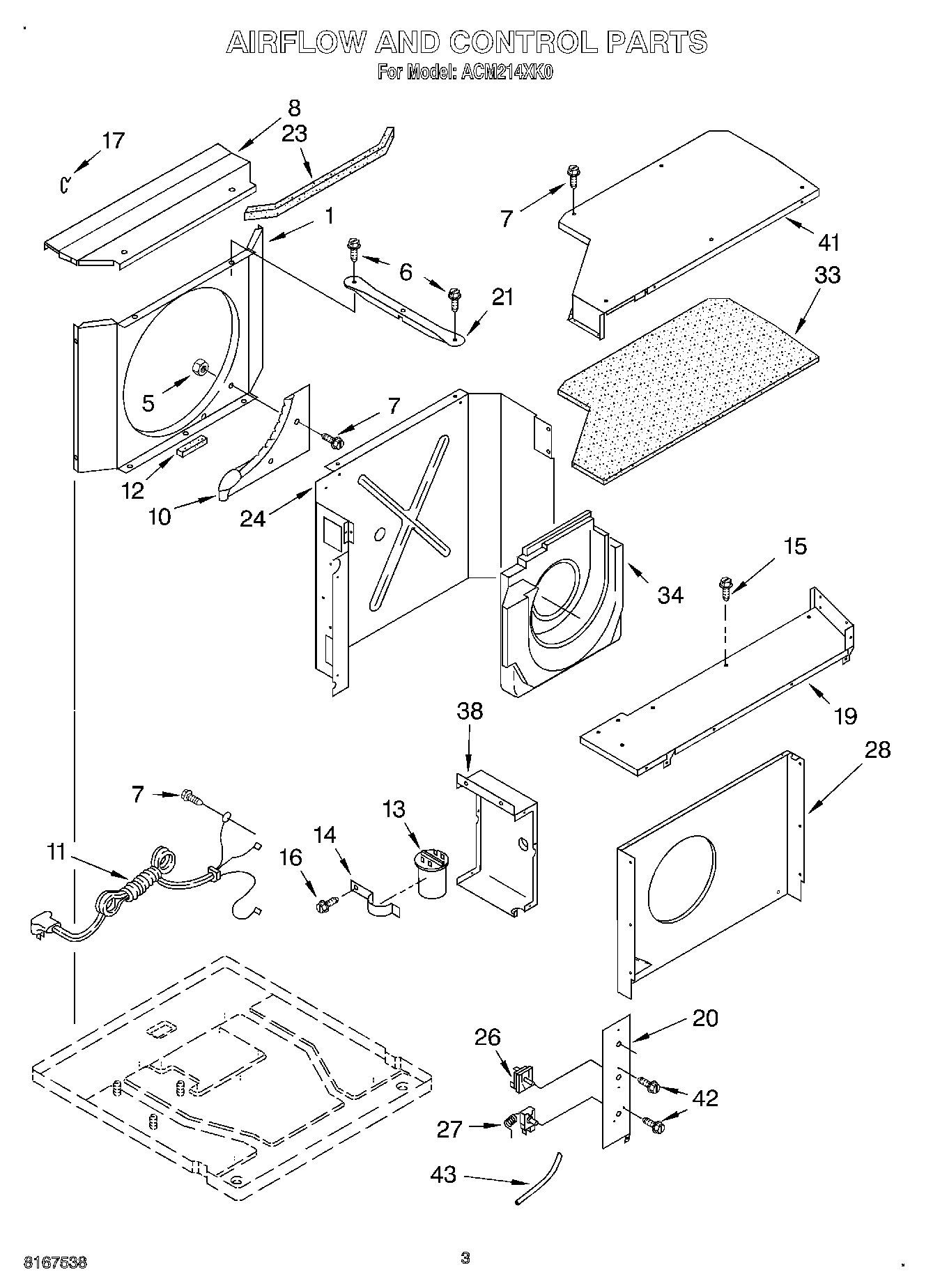

ACM214XK0 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
5WP488130 Whirlpool Air Conditioner Nut
6WP308685 Whirlpool Microwave Screw
8Top, Condenser
10Cup, Condensate
11Cord, Appliance
12Seal, Condensate Cup
13Capacitor
14WP1160674 Whirlpool Bracket
16WP489069 Whirlpool Compactor Screw
17Clip, Shroud (2)
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
27Control, Temperature
28Shroud Assembly, Evaporator
33Insulation, Top Cover
34Housing, Air
38Control Box (R.S.)
41Cover, Top
42Screw, 6-32 x .175
43Sleeve, Insulating
