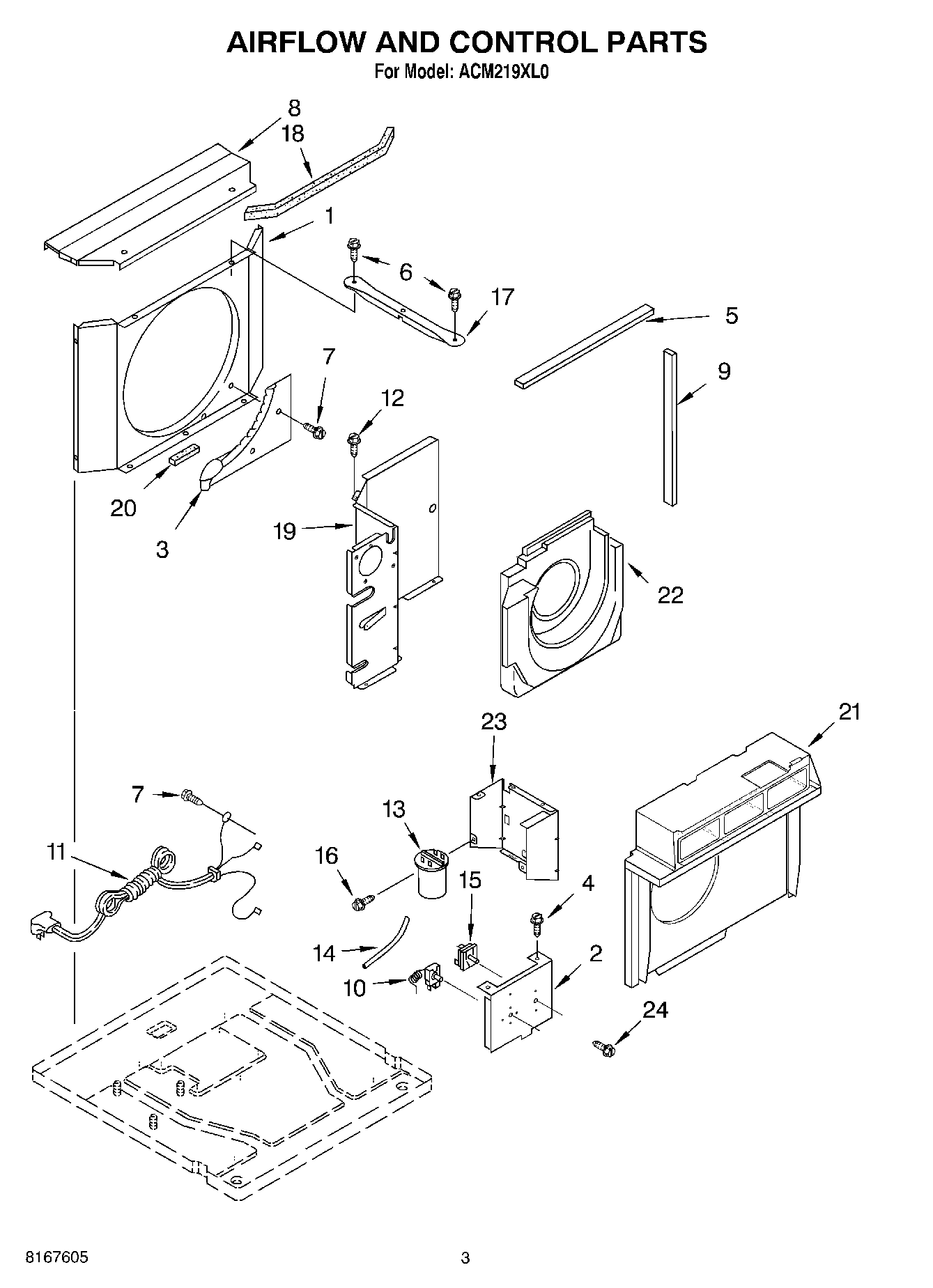

ACM219XL0 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Panel, Control
3Cup, Condensate
4Screw 8-18 x .295
5Seal (Top)
6WP308685 Whirlpool Microwave Screw
8Top, Condenser
9Seal (Side)
10Thermostat
11Cord, Appliance
12Screw, 8 x 3/8
13CAPACITOR
14Sleeve, Insulator
15Switch, Rotary
16WP489069 Whirlpool Compactor Screw
17Support, Unit (2)
18Seal, Shroud
19Dividing Wall
20Seal, Condensate Cup
21Shroud Assembly, Evaporator
22Housing, Air
23Control Box
24Screw, 6-32 x .175
