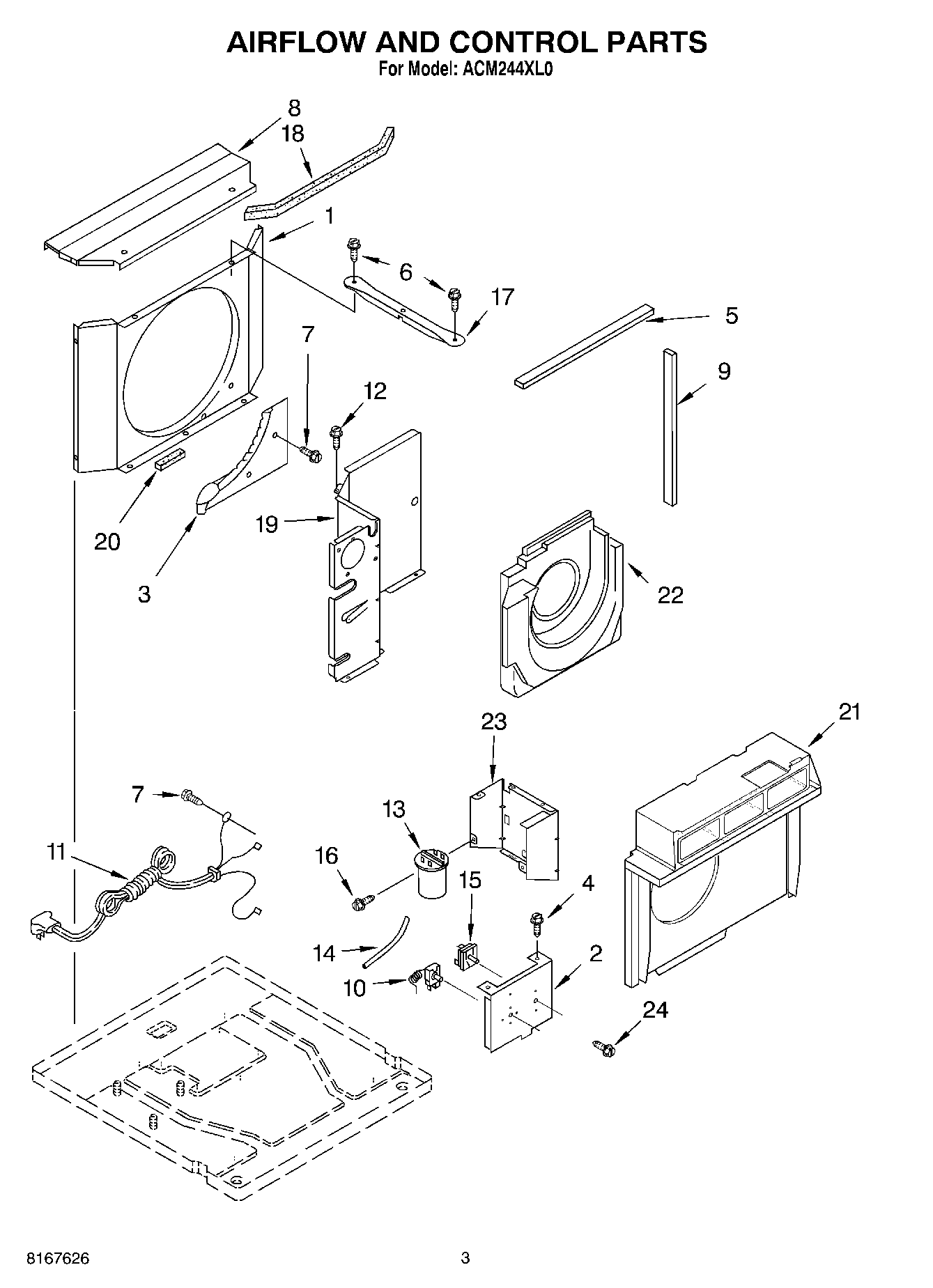

ACM244XL0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Panel, Control
3	Cup, Condensate
4	Screw 8-18 x .295
5	Seal (Top)
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
9	Seal (Side)
10	Thermostat
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor
14	Sleeve, Insulator
15	Switch, Rotary
16	WP489069 Whirlpool Compactor Screw
17	Support, Unit (2)
18	Seal, Shroud
19	Dividing Wall
20	Seal, Condensate Cup
21	Shroud Assembly, Evaporator
22	Housing, Air
23	Control Box
24	Screw, 6-32 x .175
