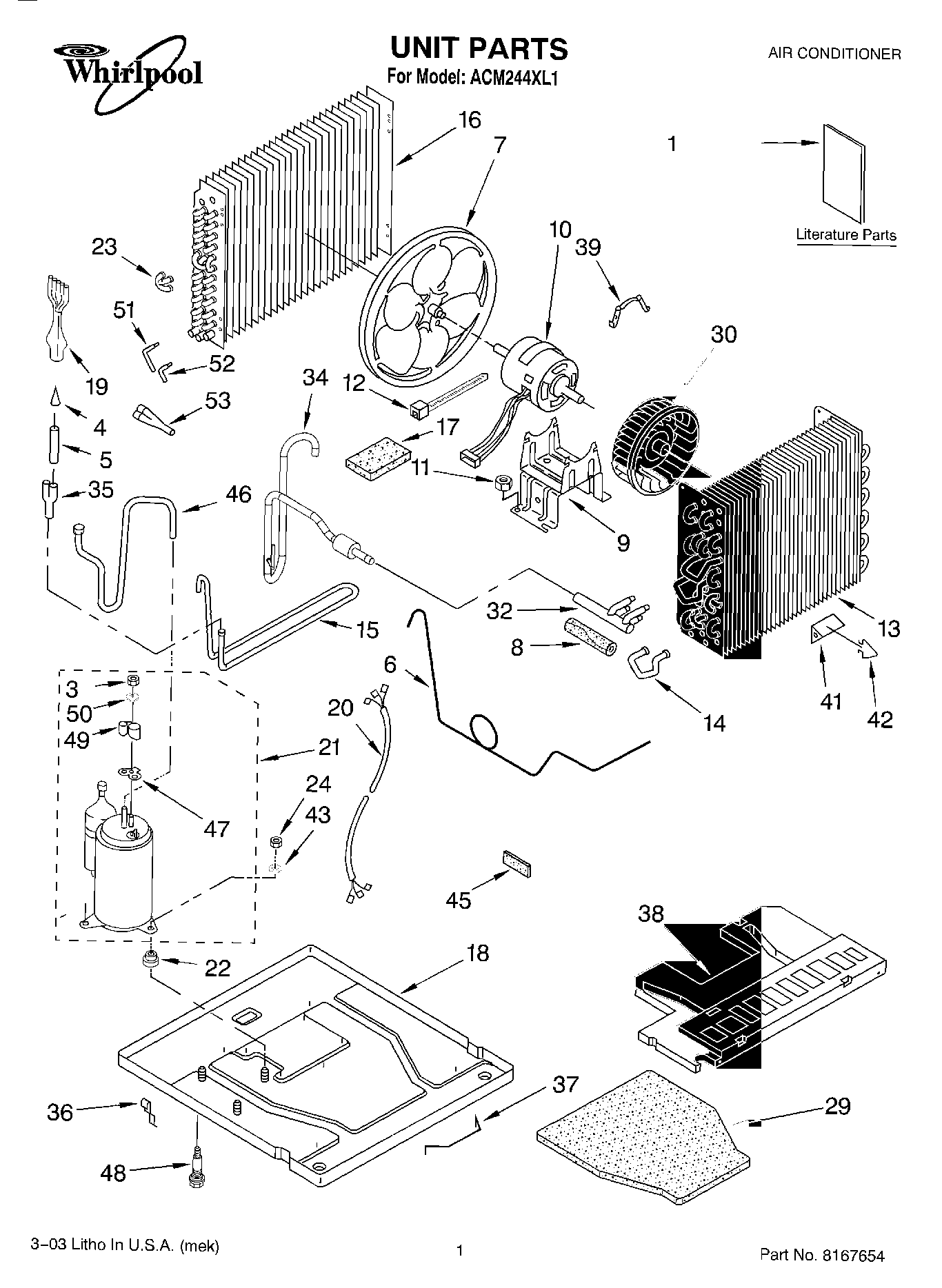

ACM244XL1 01 – UNIT PARTS

ACM244XL1 01 – UNIT PARTS

Written by

in

ACM244XL1 01 – UNIT PARTS

Products

PositionProduct
1Energy Guide
1Literature Parts (Use & Care Guide)
1Wiring Diagram
3W10833054 Whirlpool Air Conditioner Mounting Nut
4Strainer
5Tube, Outlet (Includes Illus. 4)
6Tube, Restrictor
7Blade, Fan (Condenser)
8Seal, Suction Tube Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Tube, Crossover
15Wet, Loop
16Condenser
17Putty, Sound Dampener
18Base
19Distributor
20Harness, Wiring (Compressor)
21Compressor
22Grommet (3)
23Bend, Return (3-Way)
24Locknut (3)
29Insulation, Base (Bottom)
30Wheel, Blower (Evaporator)
32Manifold, Suction
34Tube, Suction
35Tube, Flow Divider
36Clamp (2)
37WPL 647971
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
41Anticipator, Temperature
42Clip, Anticipator
43W11236646 Whirlpool Washer Assembly
45Seal, Restrictor Tube
46Tube, Discharge
47Gasket, Terminal Cover
48Bolt, Compressor
49Cover, Terminal
50Gasket
51Tube, Feeder
52Tube, Feeder
53Tube, Flow Divider
53REFRIGERANT CHARGE 42.0 OZ.
