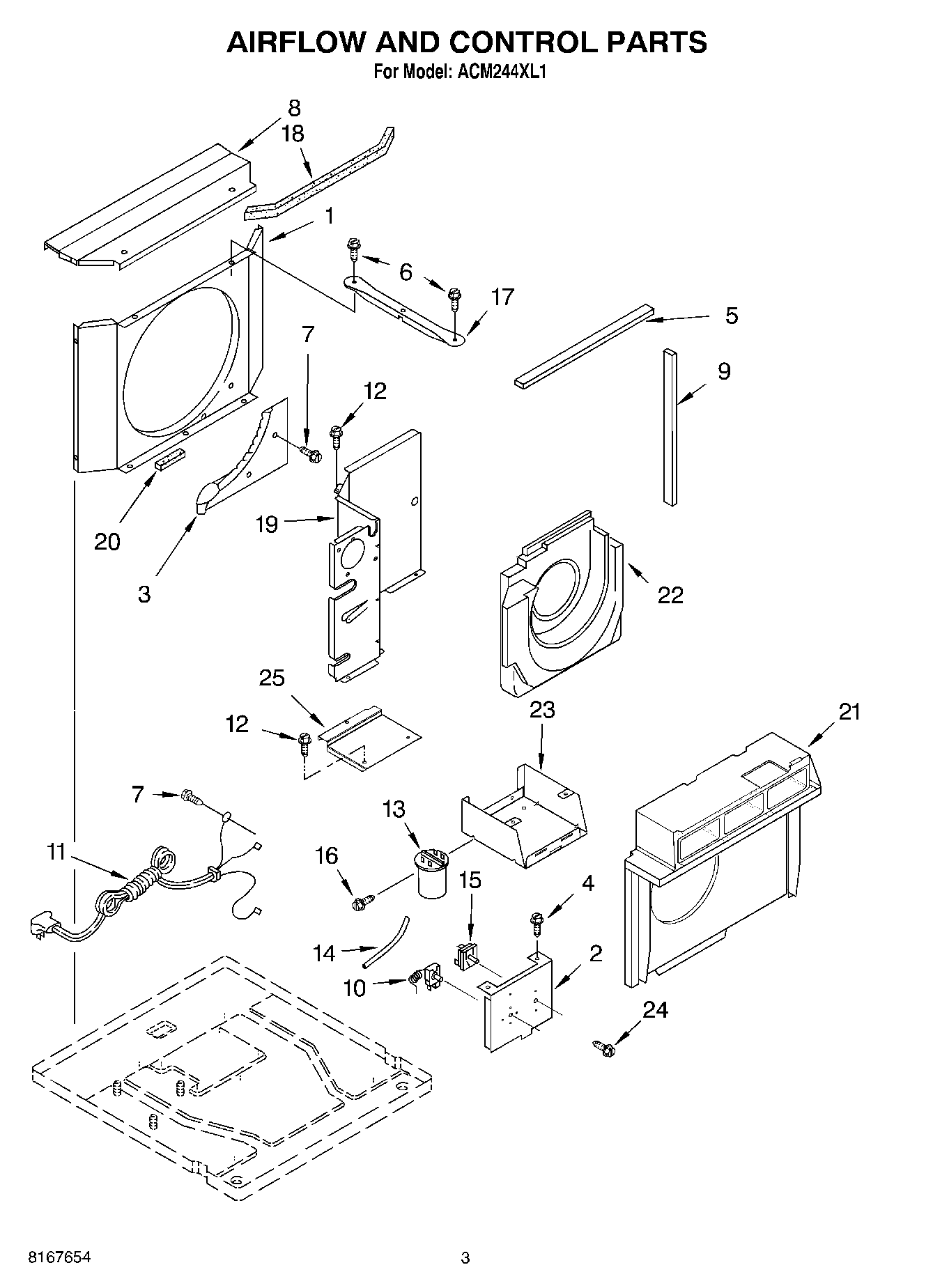

ACM244XL1 02 – AIRFLOW AND CONTROL PARTS
Written by
in
ACM244XL1 02 – AIRFLOW AND CONTROL PARTS
Products
Position
Product
1
Shroud, Condenser
2
Panel, Control
3
Cup, Condensate
4
Screw 8-18 x .295
5
Seal (Top)
6
WP308685 Whirlpool Microwave Screw
7
WP489069 Whirlpool Compactor Screw
8
Top, Condenser
9
Seal (Side)
10
Thermostat
11
Cord, Appliance
12
Screw, 8 x 3/8
13
Capacitor
14
Sleeve, Insulator
15
Switch, Rotary
16
WP489478 Whirlpool Refrigerator Screw
17
Support, Unit (2)
18
Seal, Shroud
19
Dividing Wall
20
Seal, Condensate Cup
21
Shroud Assembly, Evaporator
22
Housing, Air
23
Control Box
24
Screw, 6-32 x .175
25
Cover, Control Box
←
