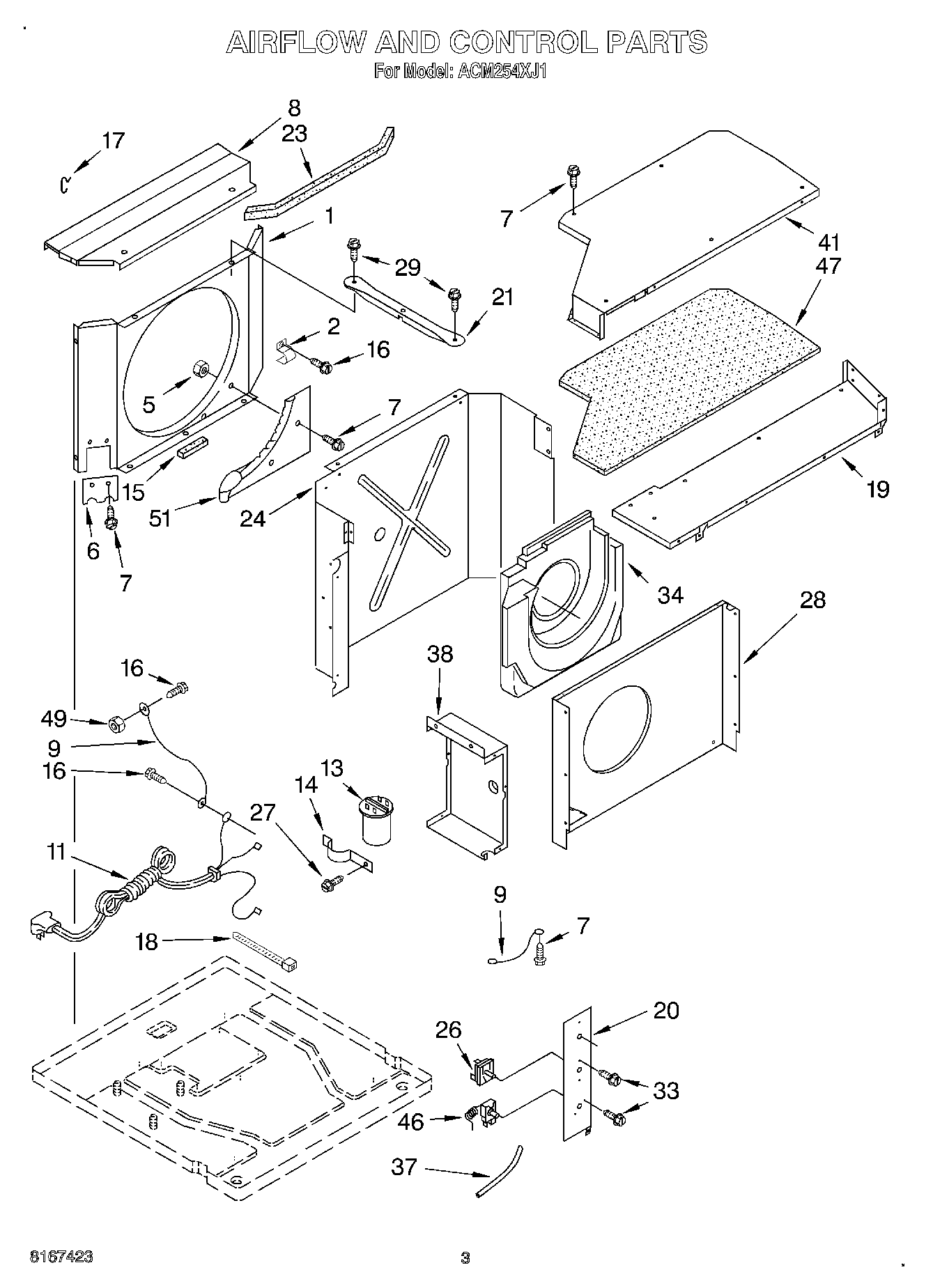

ACM254XJ1 02 – AIR FLOW AND CONTROL

ACM254XJ1 02 – AIR FLOW AND CONTROL

Written by

in

ACM254XJ1 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Clip, Wet Loop
5WP488130 Whirlpool Air Conditioner Nut
6Clip, Nylon
8Top, Condenser
9Wire, Ground
11Cable, Appliance
13Capacitor
14Bracket, Capacitor
15Seal, Condensate Cup
17Clip, Shroud (2)
18WPW10339879 Whirlpool Wire Tie
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
27WP489069 Whirlpool Compactor Screw
28Shroud Assembly, Evaporator
29WP308685 Whirlpool Microwave Screw
33Screw, 6-32 x .175
34Housing, Air
37Sleeve, Insulating
38Control Box (R.S.)
41Cover, Top
46Control, Temperature
47Insulation, Top Cover
49WP486255 Whirlpool Air Conditioner Nut
51Cup, Condensate
