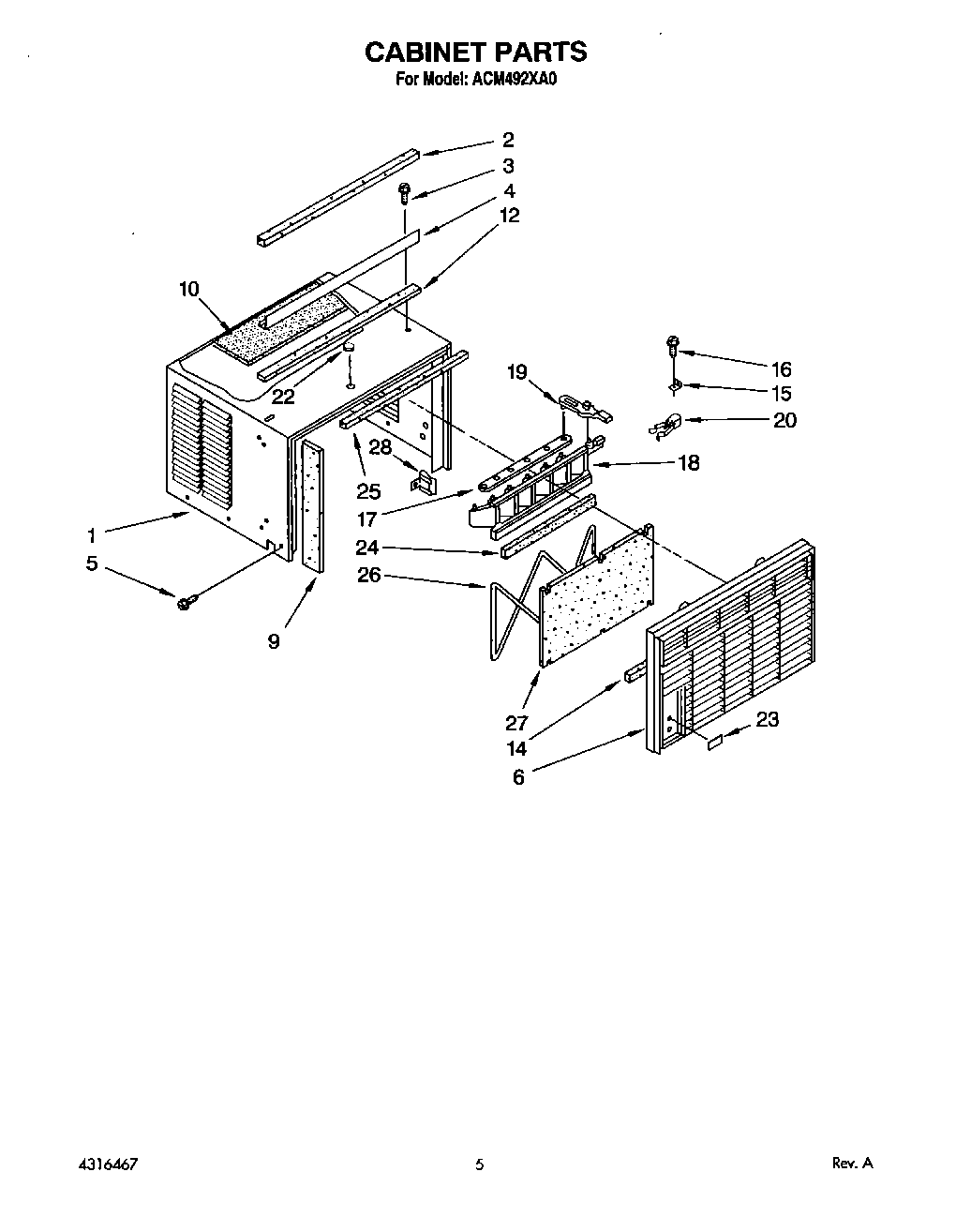

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | Screw, 10 x 3/4 |
| 4 | Channel, Top |
| 5 | WP489069 Whirlpool Compactor Screw |
| 6 | Front, Cabinet |
| 9 | Insulation, Side |
| 10 | Insulation, Top |
| 12 | Seal, Strip |
| 14 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 15 | Bracket |
| 16 | Screw, Wood 8-15 x .750 |
| 17 | Link, Louver (2) |
| 18 | Louver, Vertical |
| 19 | Handle, Louver (2) |
| 20 | Detent Spring (2) |
| 22 | Cover, Hole |
| 23 | Nameplate |
| 24 | Seal, Vertical Louver |
| 25 | Seal |
| 26 | Retainer, Filter |
| 27 | Filter |
| 28 | Clip, Vertical Louver |
