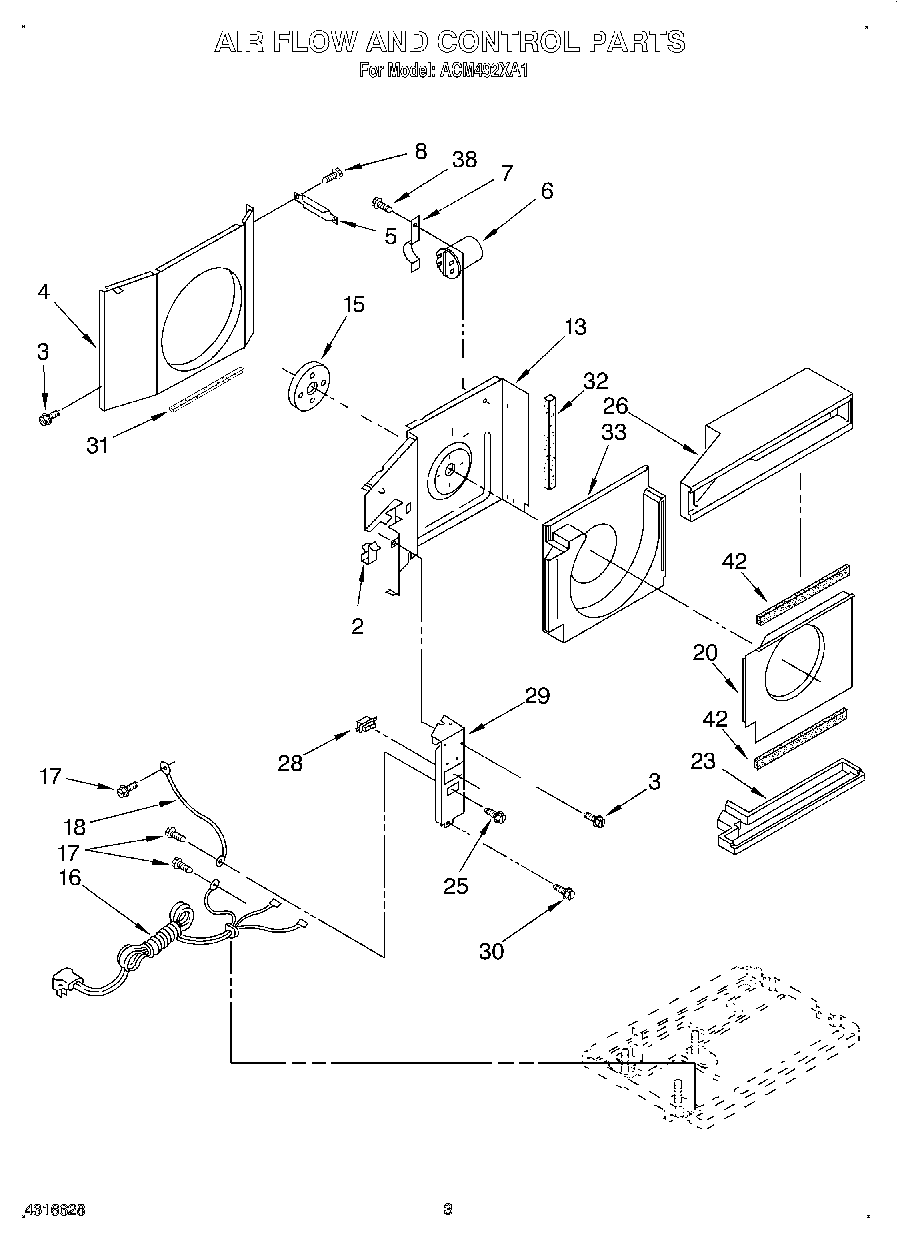

ACM492XA1 02 – AIR FLOW AND CONTROL

Products

Position	Product
2	Clamp, Wiring
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor
7	Bracket, Capacitor
8	WP1163283 Whirlpool Air Conditioner Screw
13	Wall, Dividing
15	Insulation, Motor
16	Cord, Appliance
18	Wire, Ground
20	Shroud, Evaporator
23	Pan, Evaporator
25	Screw, 6-32 x .175
26	Hood, Air Housing
28	Switch, Rocker
29	Panel, Control
30	Screw 8-18 x .295
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
38	Screw, 8 x 3/8
42	Seal (2)
