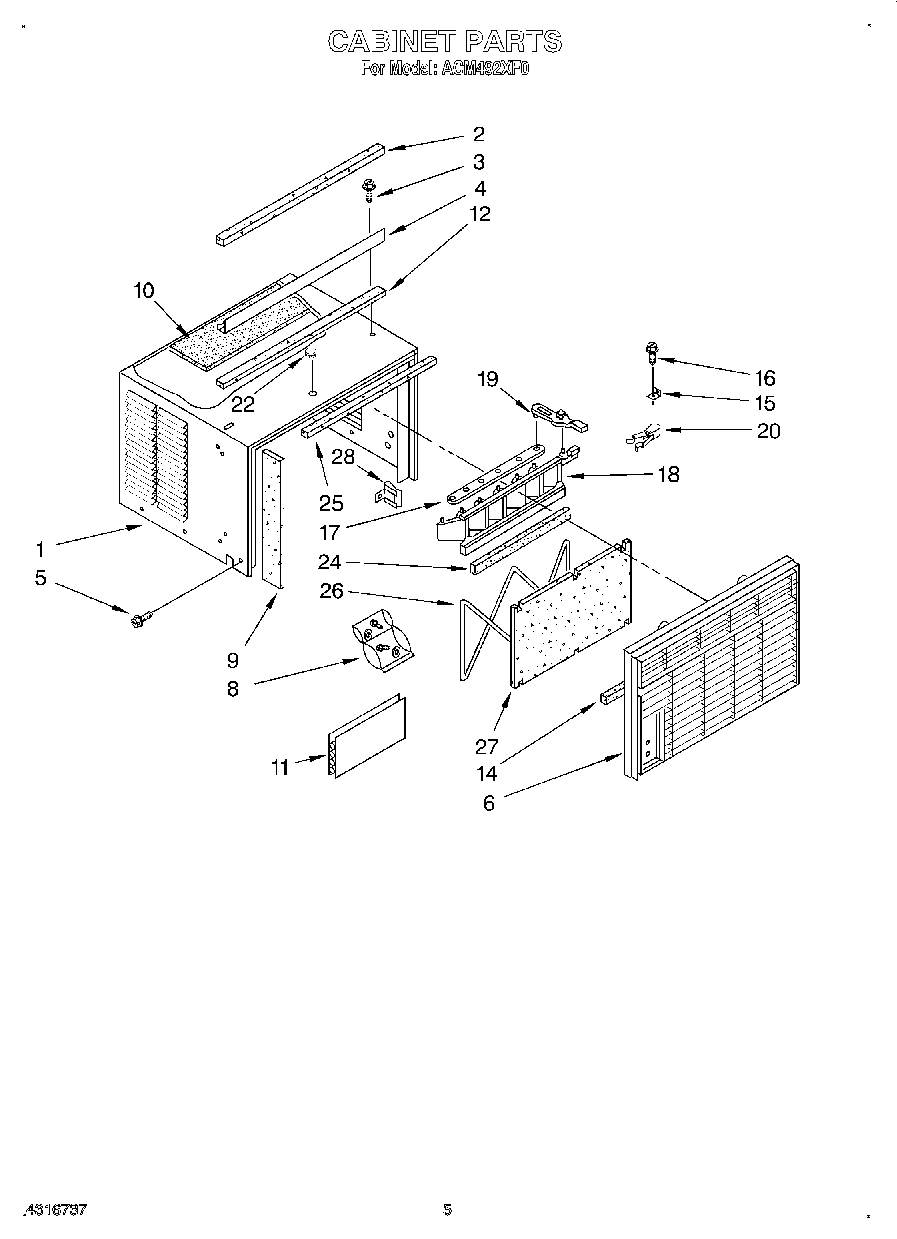

ACM492XF0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Screw, 10 x 3/4
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet
8	Bag, Accessory
9	Insulation, Side
10	Insulation, Top
11	212643 Whirlpool Refrigerator Permagum Sealer
12	Seal, Strip
14	WP854334 Whirlpool Air Conditioner Sealing Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
22	Cover, Hole
24	Seal, Vertical Louver
25	Seal
26	Retainer, Filter
27	Filter
28	Clip, Vertical Louver
