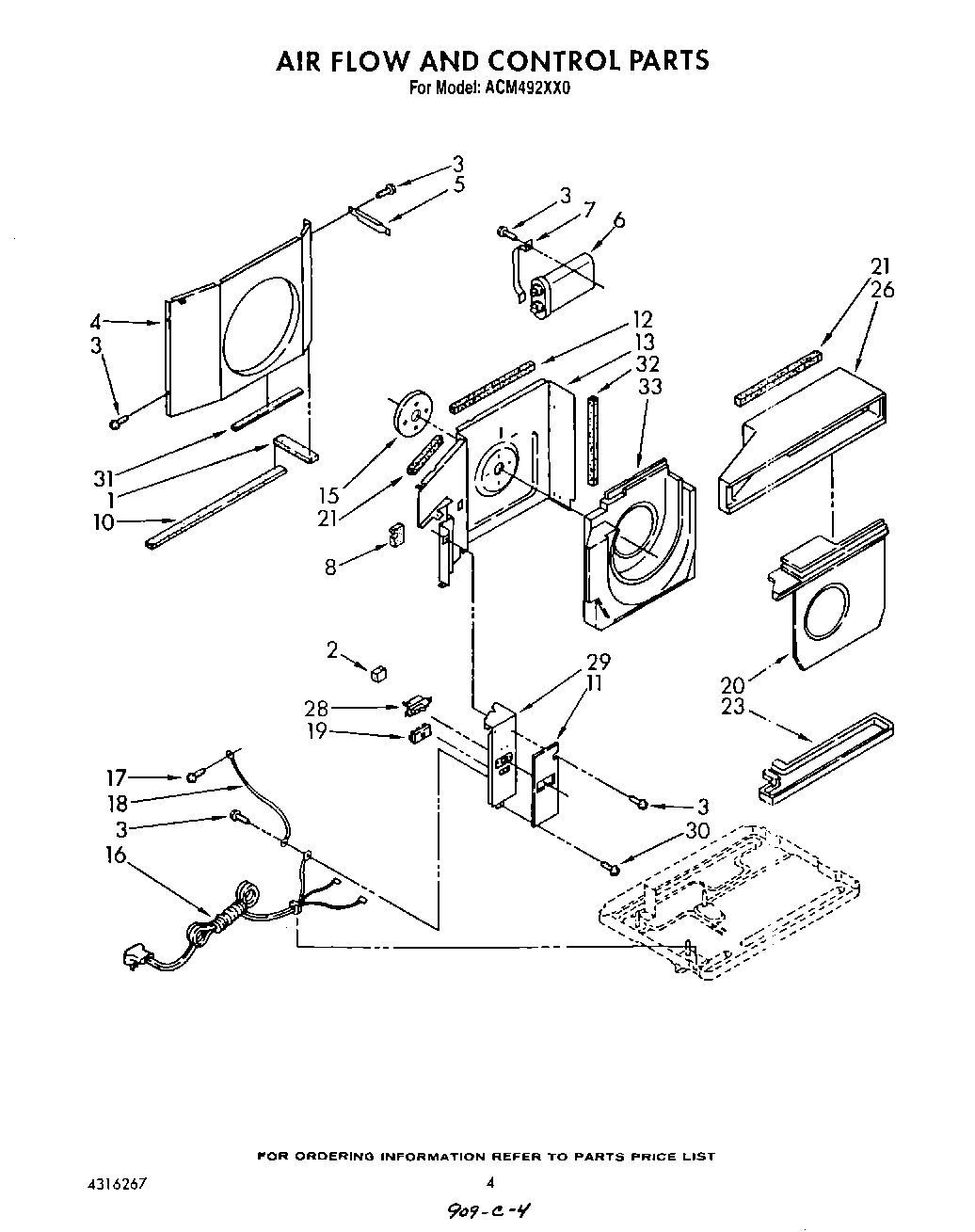

ACM492XX0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Tube
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Sealer, Tube
10	Seal
11	Insulation, Control Panel
12	WP854334 Whirlpool Air Conditioner Sealing Strip
13	Wall, Dividing
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Board, Terminal
20	Orifice, Air Housing
23	Pan, Evaporator
26	Hood, Air Housing
28	Switch, Rocker
29	Panel, Control
30	Screw, 6-32 x .175
33	Housing, Air
