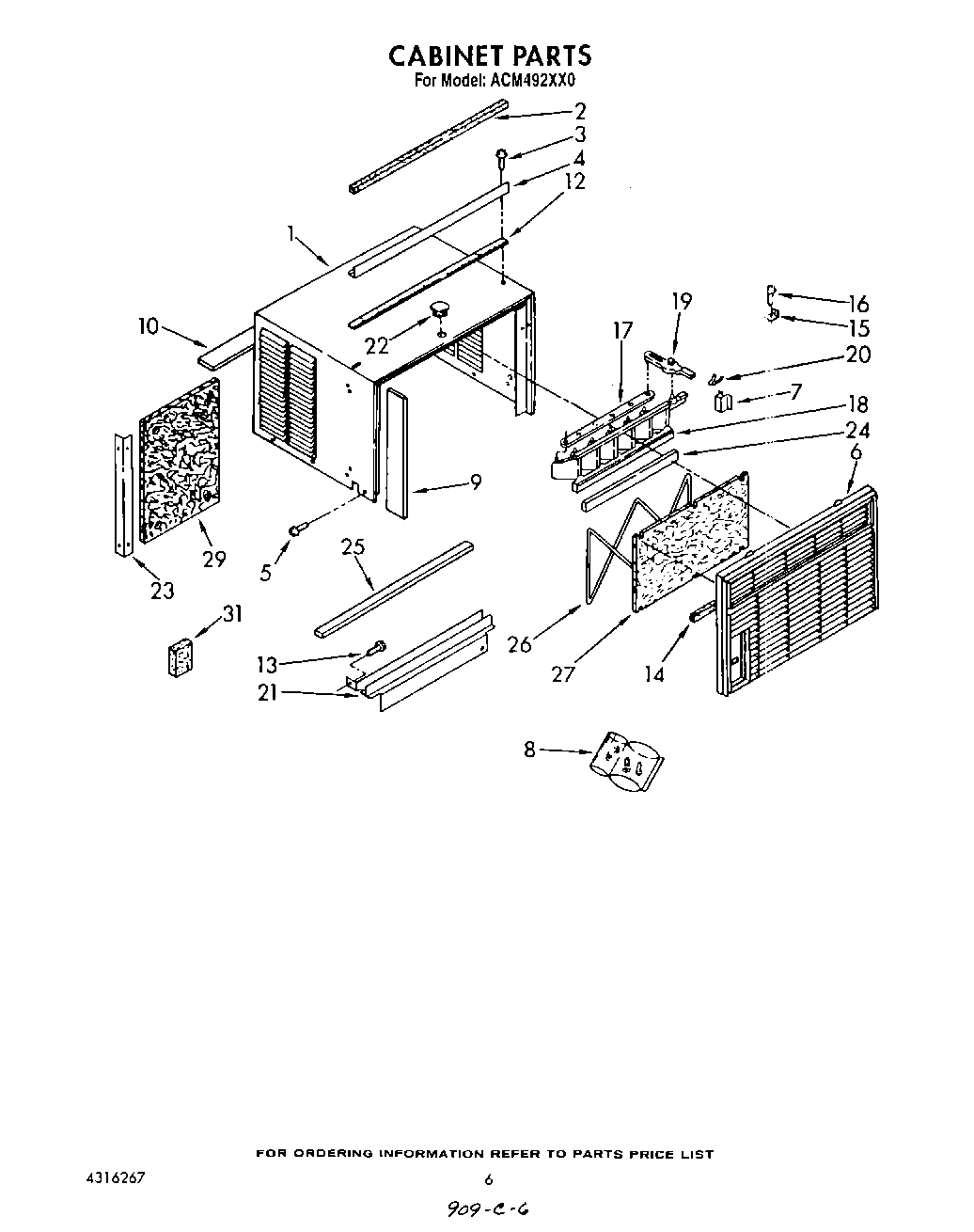

ACM492XX0 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3Screw, 10 x 3/4
4Channel, Top
5WP489128 Whirlpool Refrigerator Screw
6Front, Cabinet
7Clip, Vertical Louver
8Bag, Accessory
9Insulation, Side
10Insulation, Top
12Seal, Strip
13WP965173 Whirlpool Dishwasher Screw
14WP854334 Whirlpool Air Conditioner Sealing Strip
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver (2)
20Detent Spring (2)
21Bracket, R.S.
21Bracket, L.S.
22Cover, Hole
23Angle, Side (2)
24Seal, Vertical Louver
25Strip, Seal
26Retainer, Filter
27Filter
29Board, Filler (2)
31Spacer, Block (4)
