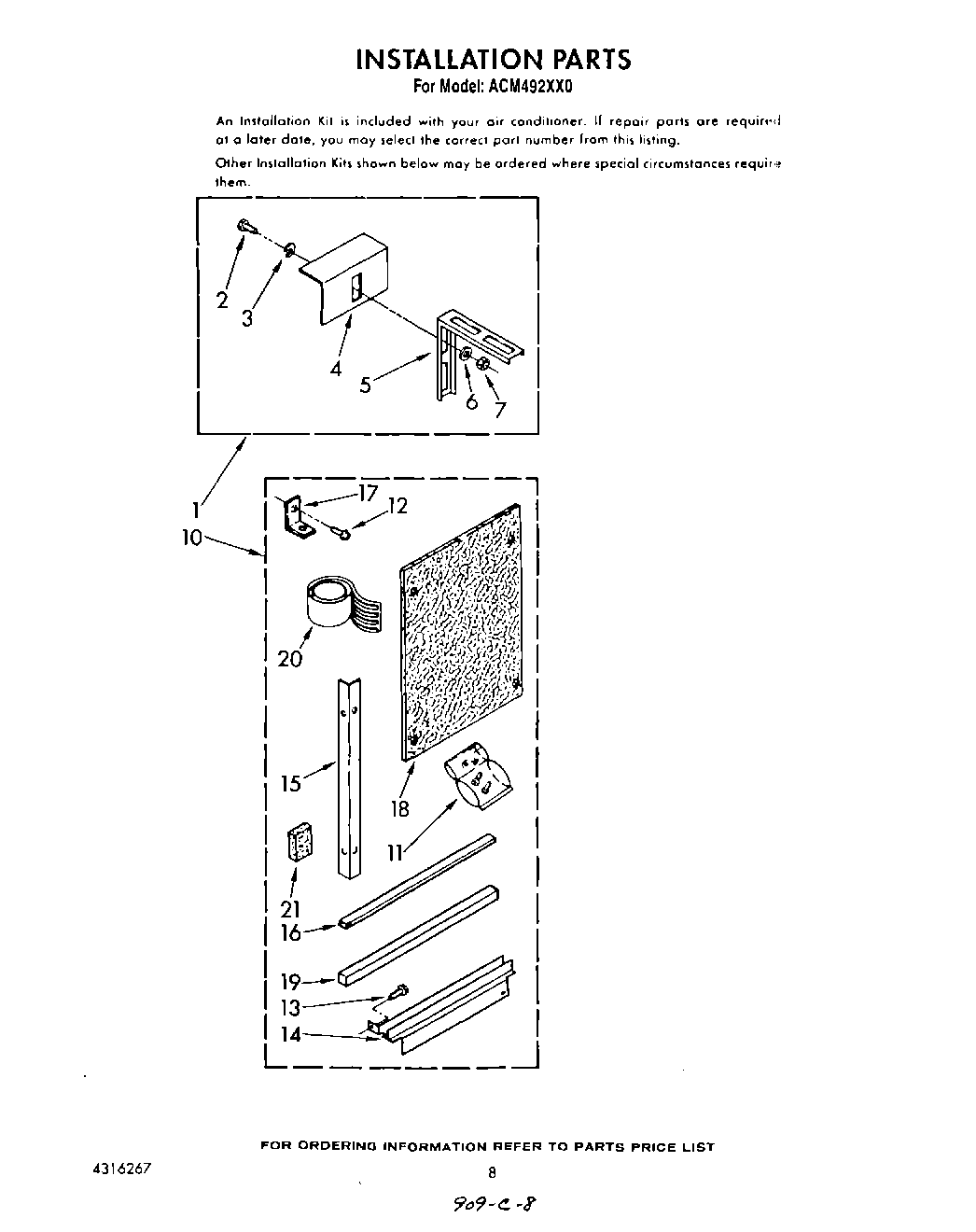

ACM492XX0 06 – INSTALLATION

Products

Position	Product
	Instructions, Installation (Outside Sill Kit)
1	Kit, Outside Sill Bracket
2	Bolt, 1/4 x 3/4 (6)
3	WP120393 Whirlpool Washer Assembly
4	Bracket, Sill Mounting (2)
5	Bracket, Rail Support (2)
6	Lockwasher (6)
7	Nut, Hex (6)
10	Kit, Standard Window Installation
11	Bag, Accessory
12	Screw, Wood 8-15 x .750
13	WP965173 Whirlpool Dishwasher Screw
14	Bracket, R.S.
14	Bracket, L.S.
15	Angle, Side (2)
16	Strip, Seal
17	Bracket
18	Board, Filler (2)
19	Gasket, Meeting Rail
20	212643 Whirlpool Refrigerator Permagum Sealer
21	Spacer, Block (4)
