ACM492XX1 03 – AIR FLOW AND CONTROL

ACM492XX1 03 – AIR FLOW AND CONTROL

Written by

in

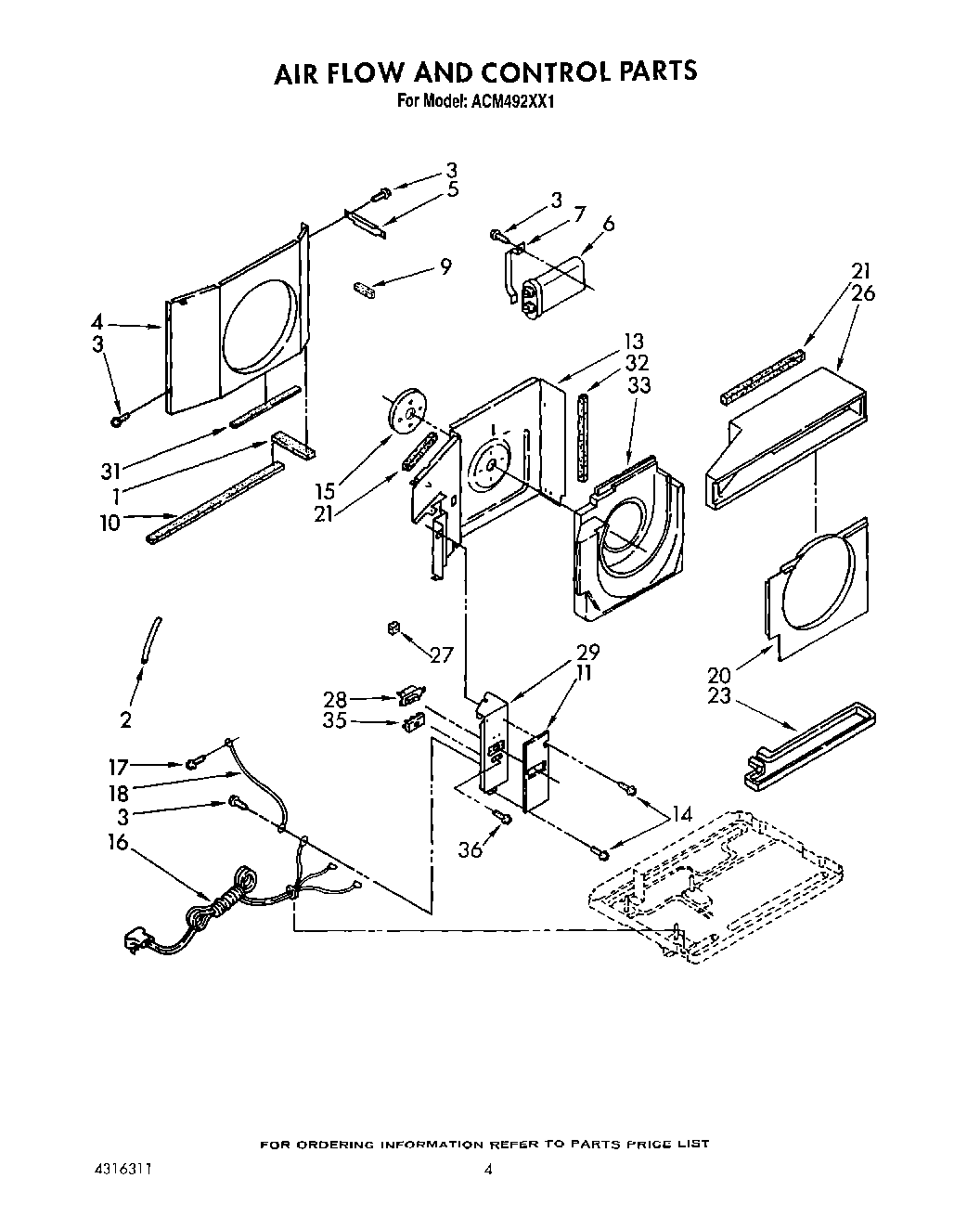

ACM492XX1 03 – AIR FLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
2Sealer, Tube
3WP489069 Whirlpool Compactor Screw
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
9Seal, Condenser (R.S.)
10Seal
11Insulation, Control Panel
13Wall, Dividing
14Screw, 8-18 x 3/8
15Insulation, Motor
16Cord, Appliance
17Screw, 8 x 3/8
18Wire, Ground
20Shroud, Evaporator
21Seal
23Pan, Evaporator
26Hood, Air Housing
27Sealer, Tube
28Switch, Rocker
29Panel, Control
32WP854334 Whirlpool Air Conditioner Sealing Strip
33Housing, Air
35Board, Terminal
36WPL 488966
