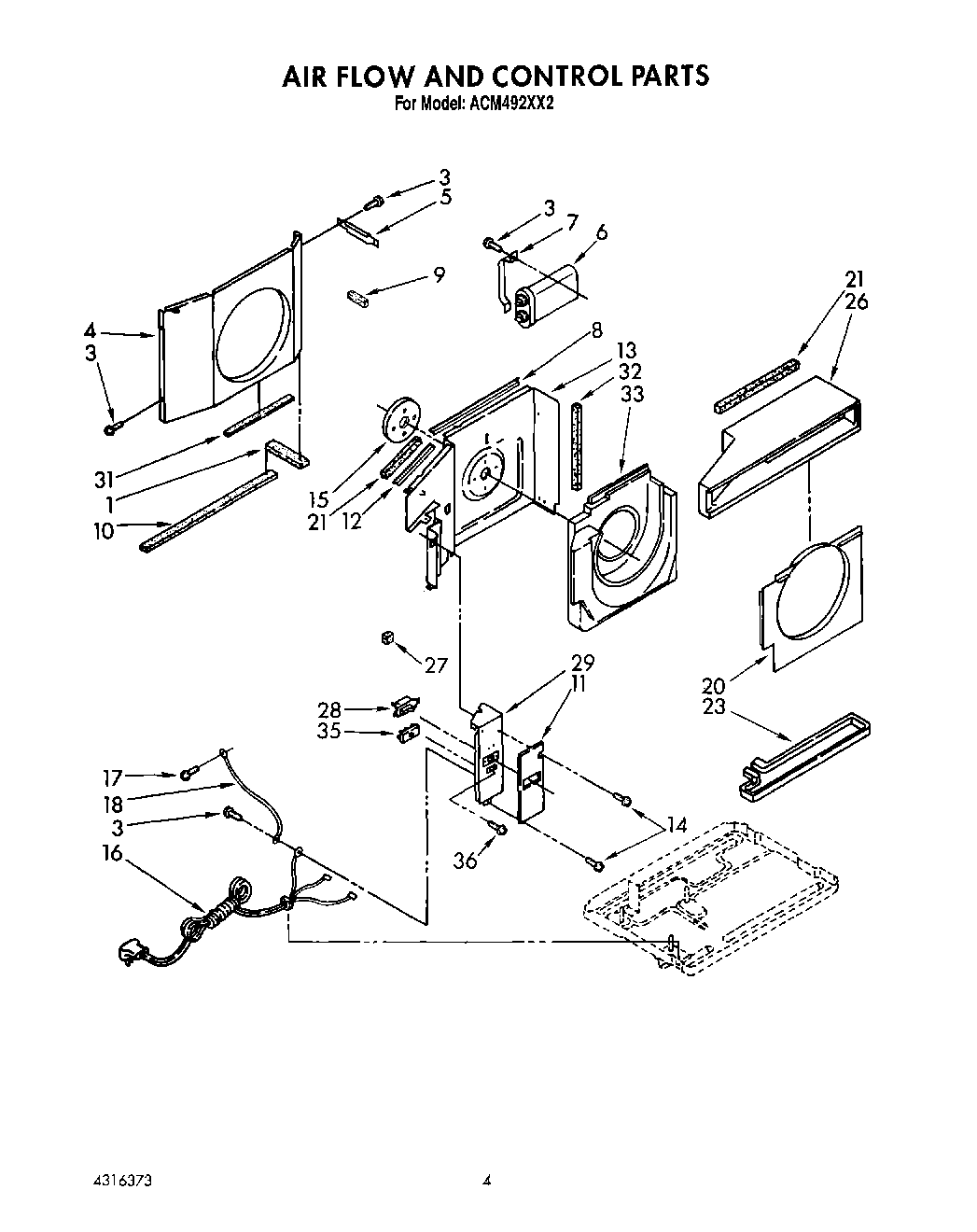

ACM492XX2 02 – AIRFLOW AND CONTROLadmin2025-04-26T10:54:50+00:00ACM492XX2 02 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Seal, Condensate |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Shroud, Condenser |
| 5 | Support, Unit |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 8 | Guard, Edge Seal |
| 9 | Seal, Condenser (R.S.) |
| 10 | Seal |
| 11 | Insulation, Control Panel |
| 12 | Guard, Edge Seal |
| 13 | Wall, Dividing |
| 14 | Screw 10-16 x .375 |
| 15 | Insulation, Motor |
| 16 | Cord, Appliance |
| 17 | Screw, 8 x 3/8 |
| 18 | Wire, Ground |
| 20 | Shroud, Evaporator |
| 21 | Seal |
| 23 | Pan, Evaporator |
| 26 | Hood, Air Housing |
| 27 | Sealer, Tube |
| 28 | Switch, Rocker |
| 29 | Panel, Control |
| 32 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 33 | Housing, Air |
| 35 | Board, Terminal |
| 36 | WPL 488966 |
