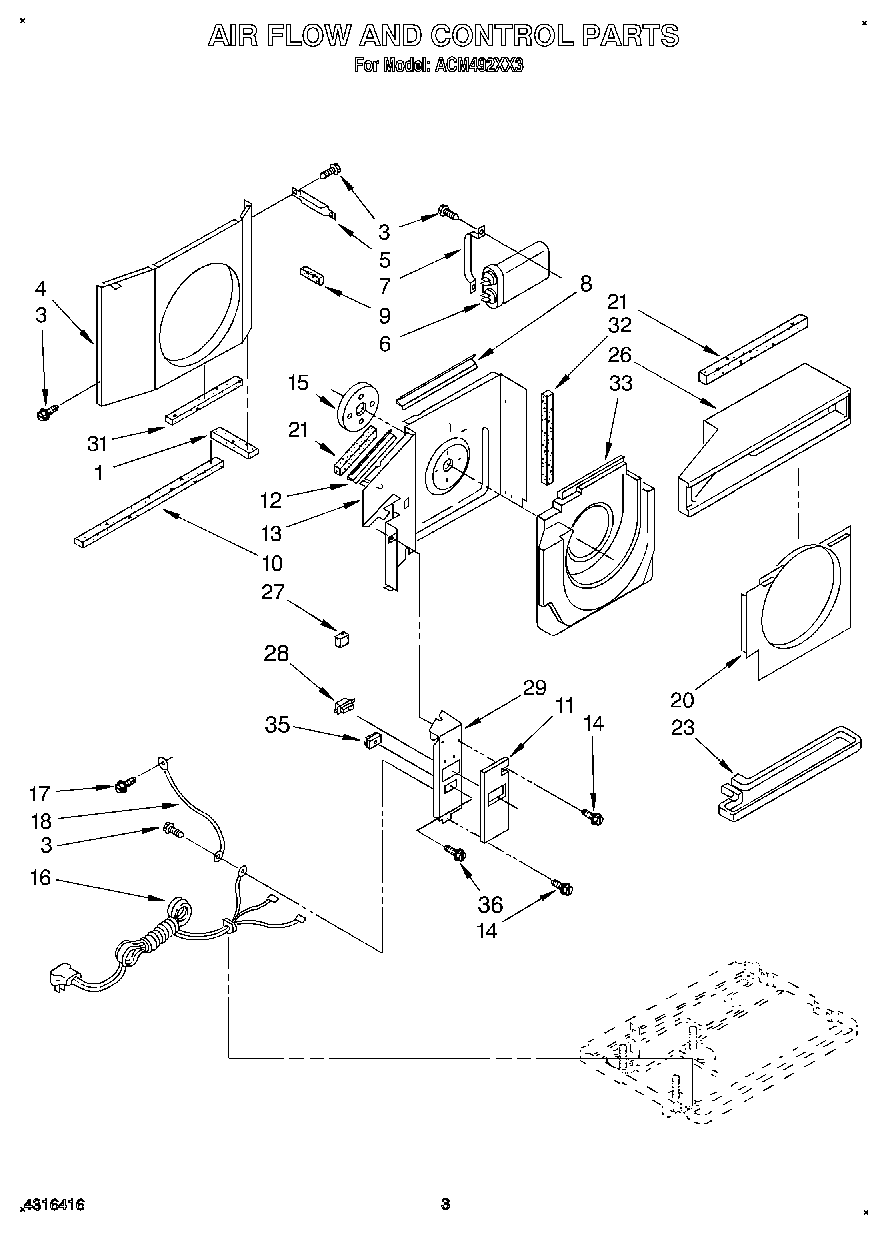

ACM492XX3 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
3WP489069 Whirlpool Compactor Screw
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Guard, Edge Seal
9Seal, Condenser (R.S.)
10Seal
11Insulation, Control Panel
12Guard, Edge Seal
13Wall, Dividing
14Screw 10-16 x .375
15Insulation, Motor
16Cord, Appliance
17Screw, 8 x 3/8
18Wire, Ground
20Shroud, Evaporator
21Seal
23Pan, Evaporator
26Hood, Air Housing
27Sealer, Tube
28Switch, Rocker
29Panel, Control
32WP854334 Whirlpool Air Conditioner Sealing Strip
33Housing, Air
35Board, Terminal
36WPL 488966
