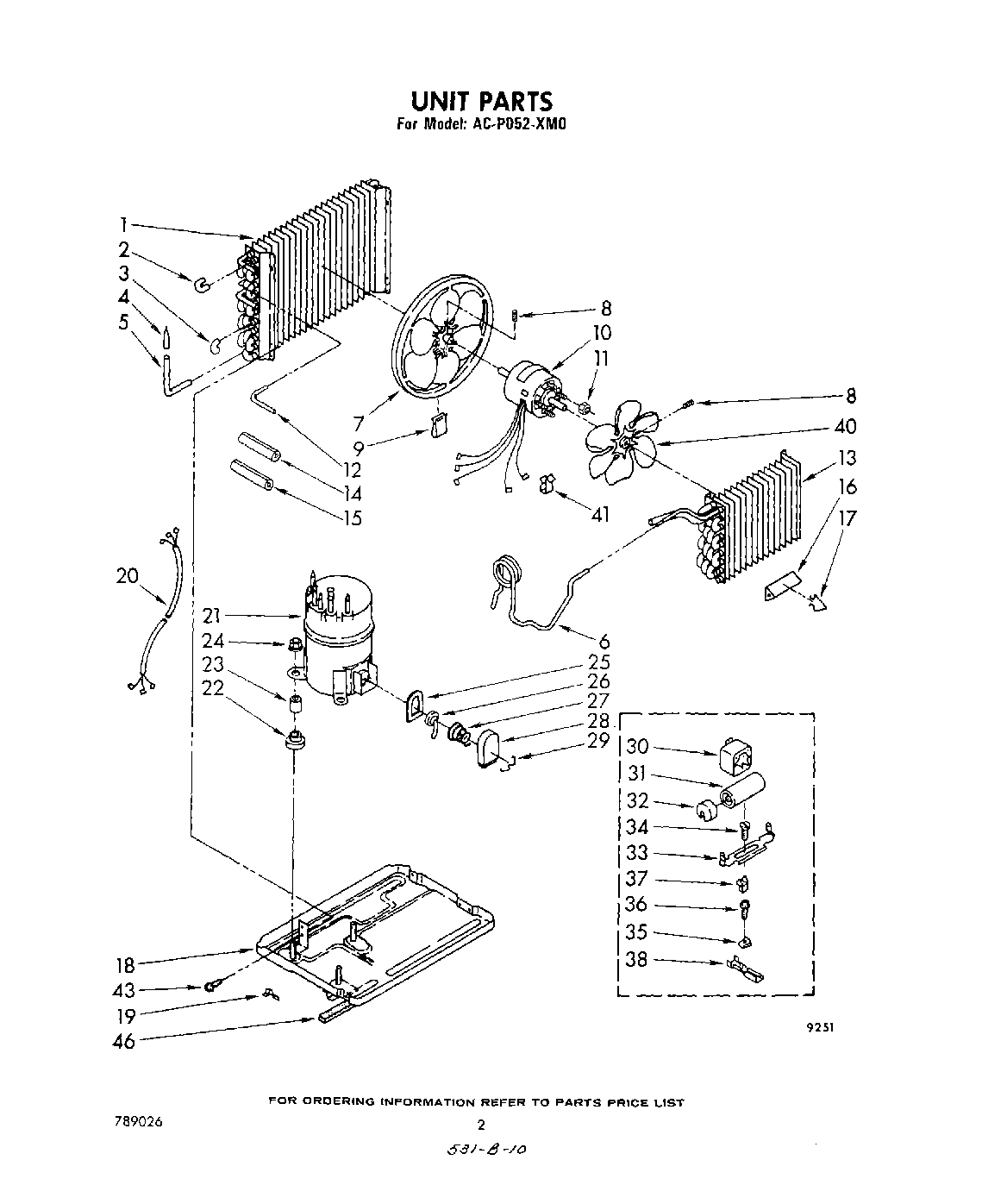

ACP052XM0 02 – UNIT PARTS

Products

Position	Product
1	Condenser
2	Bend, Return
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 33.0“)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, 90~ Connect (1)
13	Evaporator
14	Damper, Split
15	Damper, Split
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet (4)
23	Sleeve (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	Relay (Component Of Start Kit)
31	capacitor (component of start kit)
32	cap, capacitor (component of start kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
36	WP965173 Whirlpool Dishwasher Screw
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	Screw, Repair
43	WP489069 Whirlpool Compactor Screw
46	WPL 485608
46	978026 Whirlpool Refrigerator Primary Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	WP978025 Whirlpool Refrigerator Valve
46	VALVE, ACCESS (1/2“)
46	978030 Whirlpool Refrigerator Valve
46	VALVE, ACCESS (5/8“)
46	Kit, Evaporator Repair (Aluminum Epoxy)
46	Cover, Winter (19“x12“x14“)
46	Seal, Base (R.S.)
46	WPL 484220
