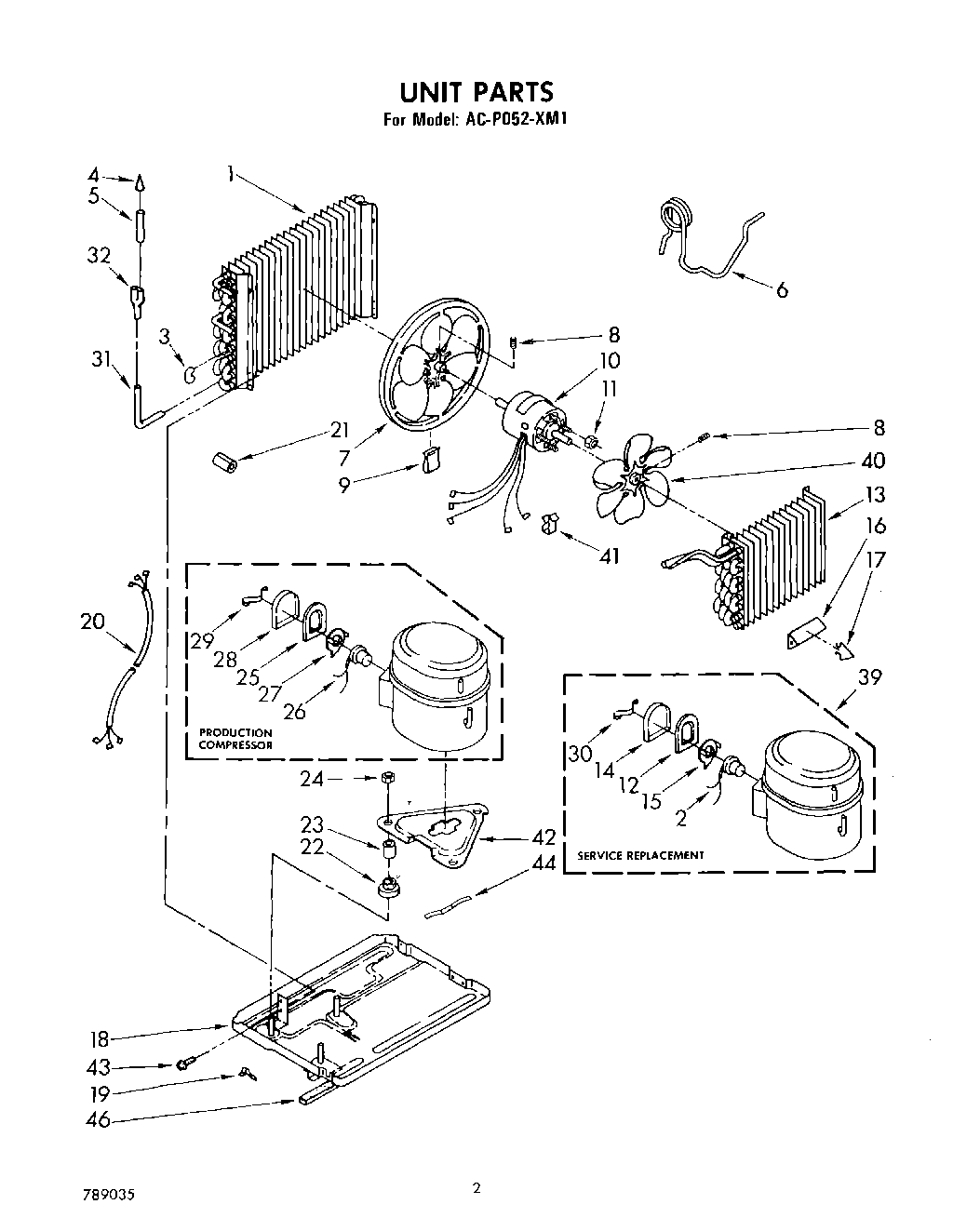

ACP052XM1 02 – UNIT PARTS

Products

Position	Product
1	Condenser
2	WPL 643295
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 40.0“)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
13	Evaporator
14	Cover, Terminal
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Dampener, Split
22	Grommet (4)
23	Sleeve (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Retainer, Terminal Cover
30	Retainer, Terminal Cover
31	Tube, Outlet
32	Tube, Flow Divider
39	Compressor Assembly
40	Fan, Blade Evaporator
41	Clamp, Wiring
42	Plate, Mounting Compressor
43	WP489069 Whirlpool Compactor Screw
43	Screw, Repair
44	Spring, Clip
46	978026 Whirlpool Refrigerator Primary Valve
46	978030 Whirlpool Refrigerator Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	WP978025 Whirlpool Refrigerator Valve
46	VALVE, ACCESS (1/2“)
46	VALVE, ACCESS (5/8“)
46	Cover, Winter (19“x12“x14“)
46	Seal, Base (R.S.)
46	Kit, Evaporator Repair (Aluminum Epoxy)
