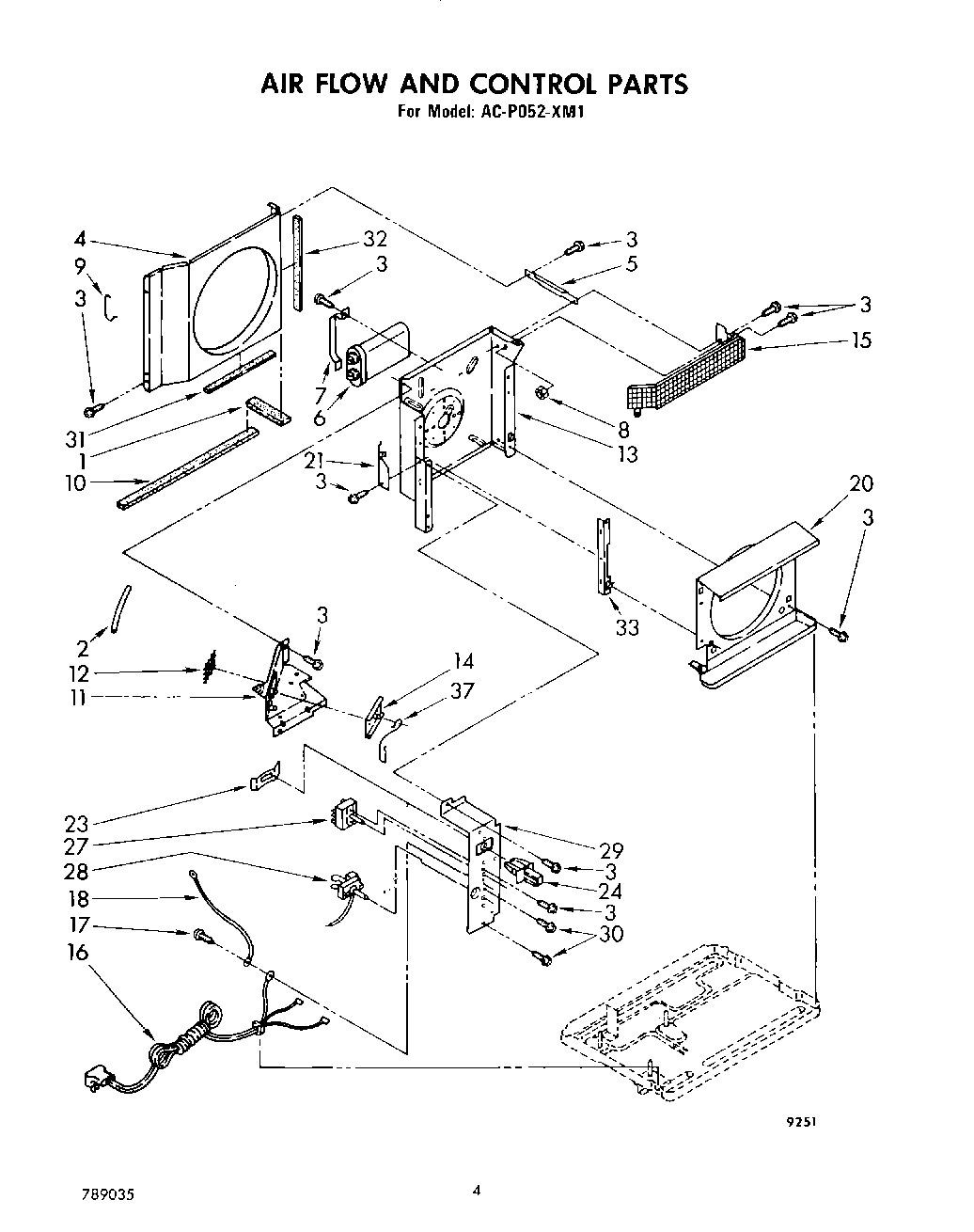

ACP052XM1 03 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Seal, Condensate
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	Seal, Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Retainer, Detent Spring
24	Actuator, Exhaust Door
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
33	Bracket, Evaporator Mounting
37	WPL 950318
37	No Drip Tape (Sweating Tubes)
37	Sheet, Tech And Wiring Diagram
37	WPL 950317
37	WPL 950316
37	Arm, Exhaust Door
37	212643 Whirlpool Refrigerator Permagum Sealer
37	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
37	WPL 649939
37	Wire, 25“ Roll (Black 12 GA.)
37	Wire, 25“ Roll (White 12 GA.)
37	Oil, Turbine 1 Fl. Oz.
37	Insulation, Fiberglass (1/4“ x 24“ x 48“)
37	Wire, Red, (25 Ft.)
37	Lacquer, Starlight Gray (1/2 Pt. Uncut)
37	WPL 799351
37	List, Repair Parts
