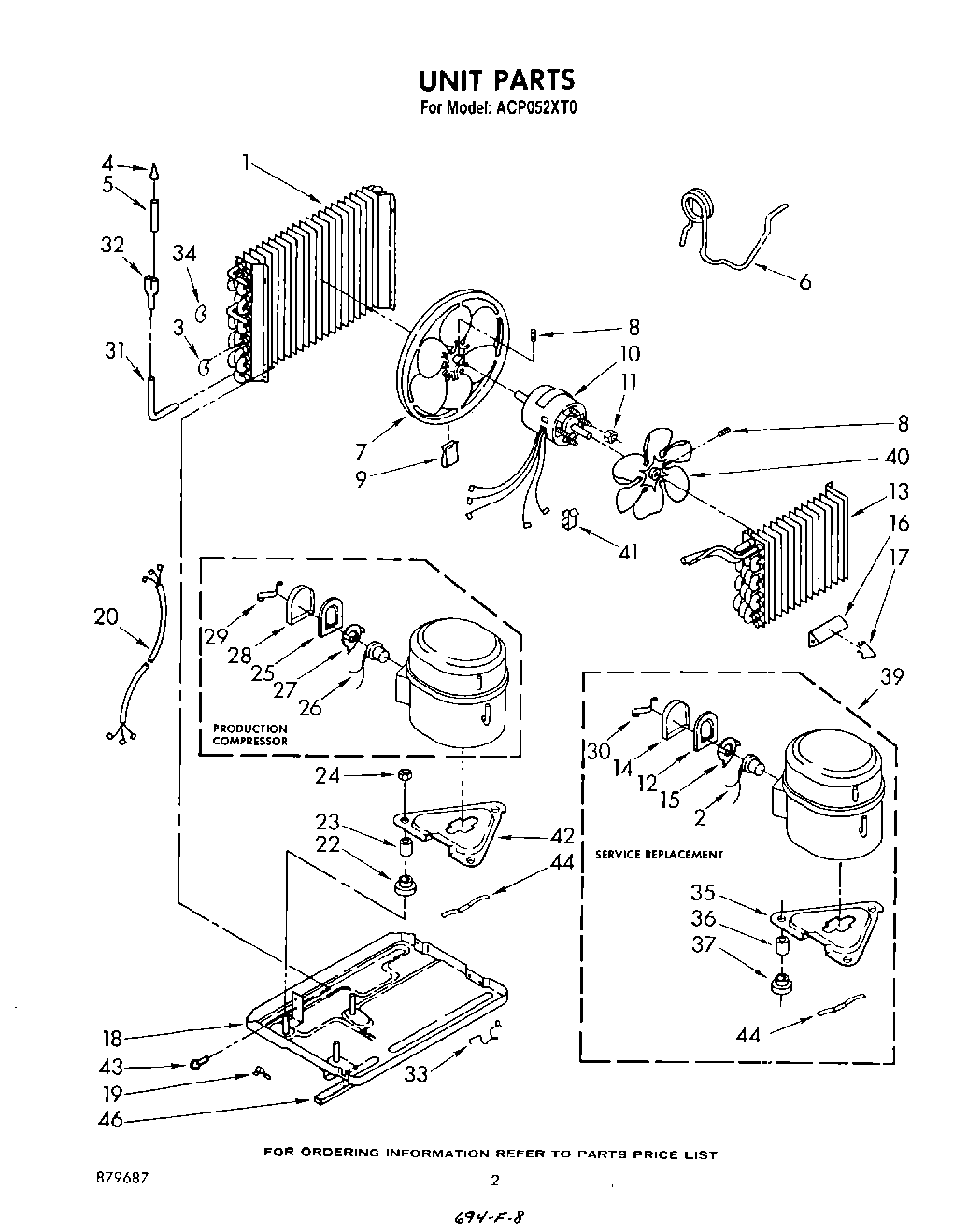

ACP052XT0 02 – UNIT
Written by
in
ACP052XT0 02 – UNIT
Products
Position
Product
1
Condenser
2
WPL 643295
3
Bend, Return Condenser (10)
4
Strainer
5
Tube & Strainer (Includes Item 23)
6
Tube, Restrictor (Length 40.0“)
7
Blade, Fan
8
Setscrew, 5/16 x 1/4
9
Clip, Balancing
10
Motor, Fan
11
WP488130 Whirlpool Air Conditioner Nut
13
Evaporator
14
Cover, Terminal
15
Spring, Overload
16
Anticipator, Temperature
17
Clip, Anticipator
18
Base
19
Clamp, Tube (2)
20
Harness, Wiring
22
Grommet (4)
23
Sleeve (3)
24
Locknut (3)
25
Gasket, Terminal Cover
26
Overload
27
Spring, Overload
28
Cover, Terminal
29
Retainer, Terminal Cover
30
Retainer, Terminal Cover
31
Tube, 90~ Connect
32
Tube, Flow Divider
33
Clip, Mtg. (2) (Base to Front)
34
Bend, Return Condenser (4)
35
Plate, Mtg
36
Sleeve (4)
37
Grommet (4)
39
Compressor Assembly
40
Fan, Blade Evaporator
41
Clamp, Wiring
42
Plate, Mounting Compressor
43
Screw, Repair
43
WP489069 Whirlpool Compactor Screw
44
Spring, Clip
46
Literature Parts (Use & Care Guide)
46
Sheet, Tech And Wiring Diagram
46
Seal, Base (R.S.)
46
Guide, Energy
46
Literature Parts (List, Repair Parts)
←
