ACP052XT0 03 – AIRFLOW AND CONTROL
Written by
in

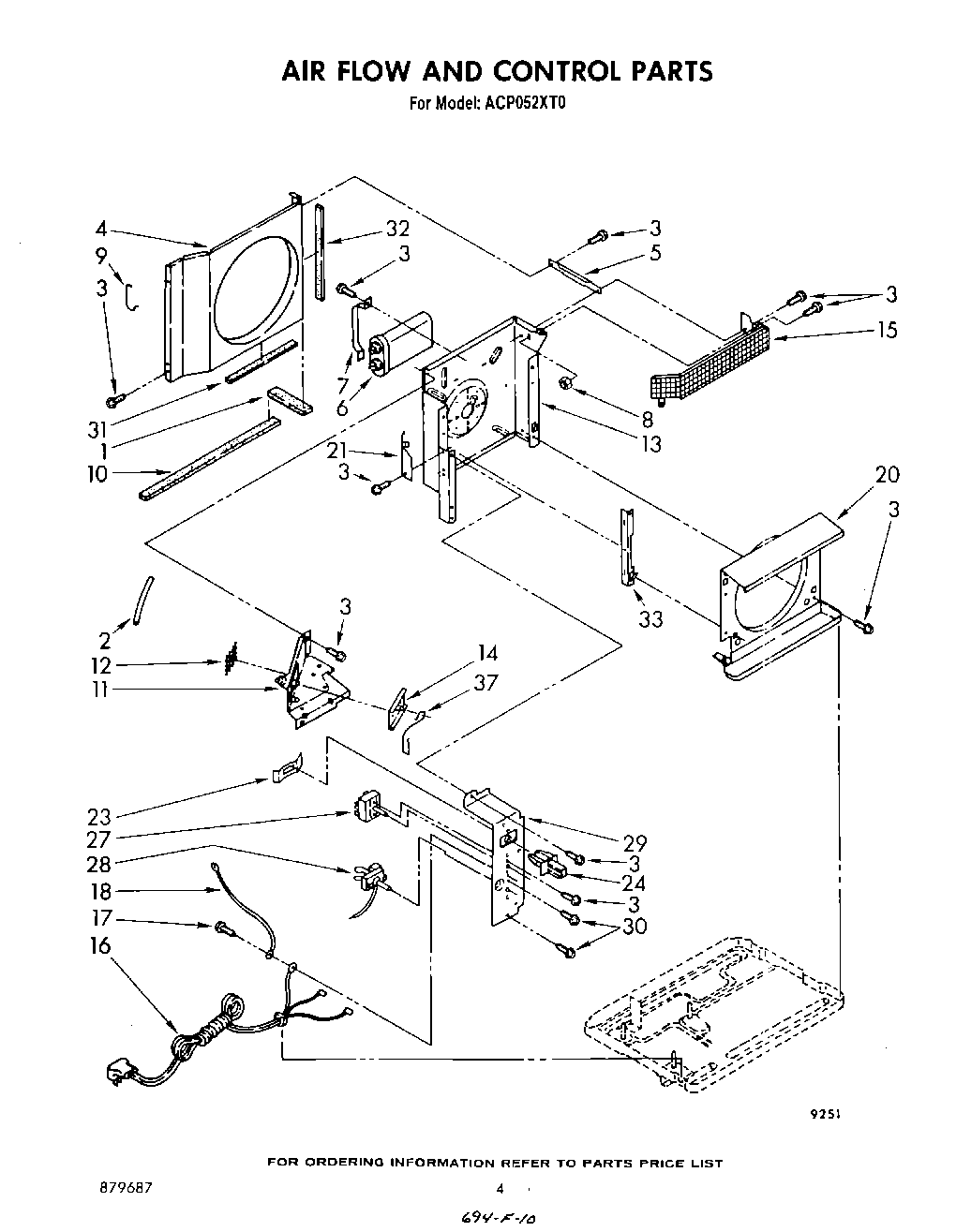

ACP052XT0 03 – AIRFLOW AND CONTROL
Products
Position
Product
1
Seal, Condensate
2
212643 Whirlpool Refrigerator Permagum Sealer
3
WP489069 Whirlpool Compactor Screw
3
Screw, Repair
4
Shroud, Condenser
5
Support, Unit
6
Capacitor, Running
7
Bracket, Capacitor
8
Nut, Speed No.8A
9
Clip, Shroud (2)
10
Seal, Strip
11
Extension, Dividing Wall (Requires Insulation Part No. 469938)
12
Screen, Exhaust Door
13
Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14
Door, Exhaust
15
Guard, Evaporator Impeller
16
Cord, Appliance
17
WPW10141604 Whirlpool Screw
18
Wire, Ground
20
Shroud, Evaporator
21
Plate, Dividing Wall
23
Retainer, Detent Spring
24
Actuator, Exhaust Door
27
Switch, Rotary
28
Control, Temperature
29
Panel, Control
30
Screw, 6-32 x .175
31
Seal, Condenser
32
Seal, Condenser (R.S.)
33
Bracket, Evaporator Mounting
37
Arm, Exhaust Door
←
