ACP052XT0 06 – LIT/OPTIONAL

ACP052XT0 06 – LIT/OPTIONAL

Written by

in

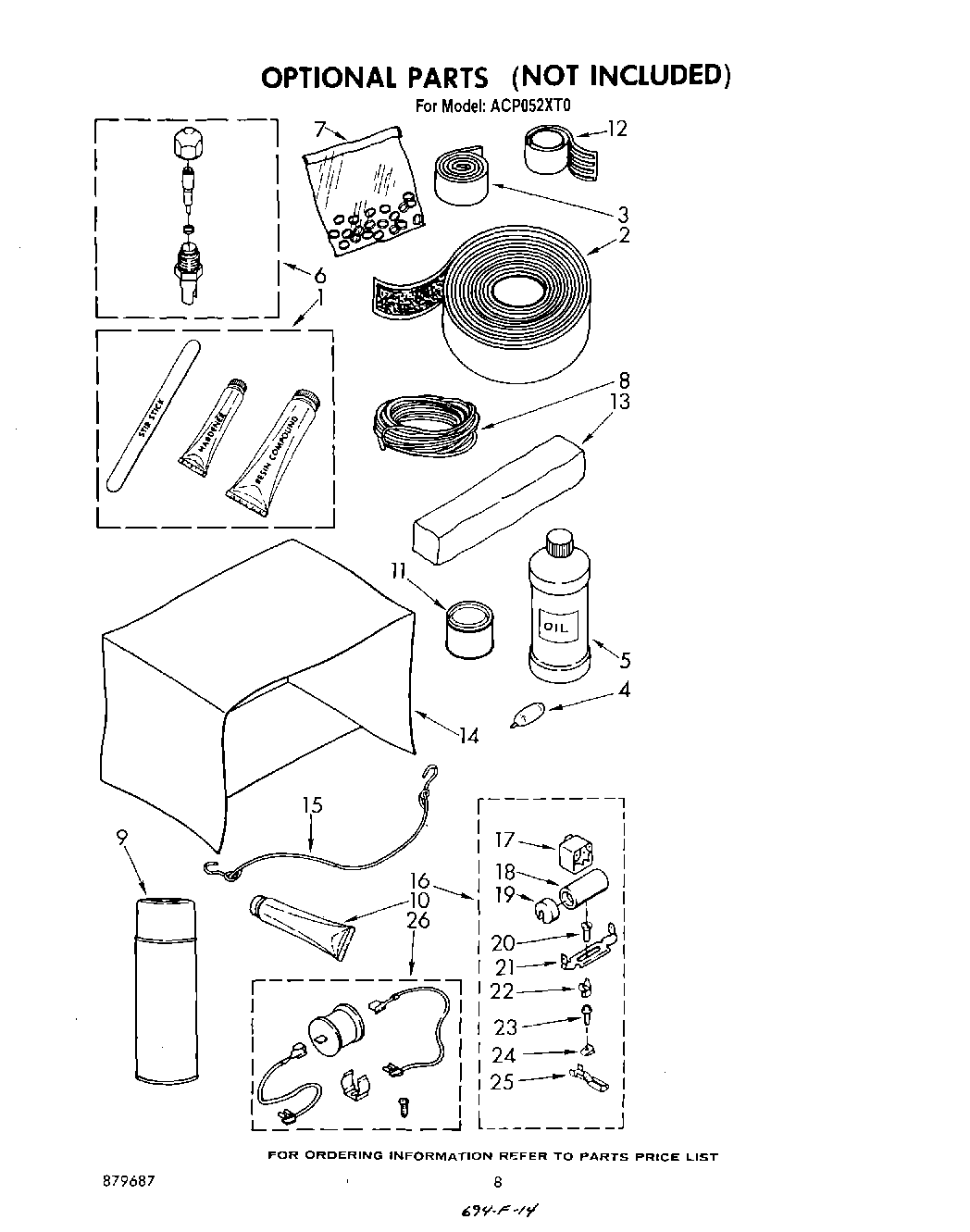

ACP052XT0 06 – LIT/OPTIONAL

Products

PositionProduct
1WPL 799833
2No Drip Tape (For Sweating Tubes)
3TAPE, VINYL (3/4 X 108“)
4Oil, Turbine 1 Fl. Oz.
5Oil, Turbine 8 Fl. Oz.
6VALVE, ACCESS (5/8“)
6VALVE, ACCESS (1/2“)
6WP978025 Whirlpool Refrigerator Valve
6978030 Whirlpool Refrigerator Valve
6978027 Whirlpool Refrigerator Primary Valve
6978026 Whirlpool Refrigerator Primary Valve
6876764 Whirlpool Refrigerator Primary Valve
7Seal, Ring (Access Valve) (20 – Pack)
8Wire, 25“ Roll (White 12 GA.)
8Wire, 25“ Roll (Black 12 GA.)
8Wire, 25` Roll (Red 12 Ga.)
8Wire, 25“ Roll (White 14 GA.)
8Wire, 25` Roll (Red 14 Ga.)
8Wire, 25` Roll (Black 14 Ga.)
8Wire, 25` Roll (Blue 16 Ga.)
9Adhesive, Insulation (24 Oz. Spray)
10WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
11Lacquer, Starlight Gray (1/2 Pt. Uncut)
12212643 Whirlpool Refrigerator Permagum Sealer
134318168 Whirlpool Refrigerator Primary Permagum Sealer
14Cover, Winter (19“x12“x14“)
15Retainer, Cord (Winter Cover)
16Hard Start Kit (Use With 485595 Compressor)
17Relay (Component Of Start Kit)
18Capacitor, Start
20WP965173 Whirlpool Dishwasher Screw
21Bracket, Capacitor (Component Of Start Kit)
22Adapter
23Screw, 10 x 5/8 (Component Of Start Kit)
24488660 Whirlpool Refrigerator Nut
25WP90028 Whirlpool Terminal
26WPL 484220
