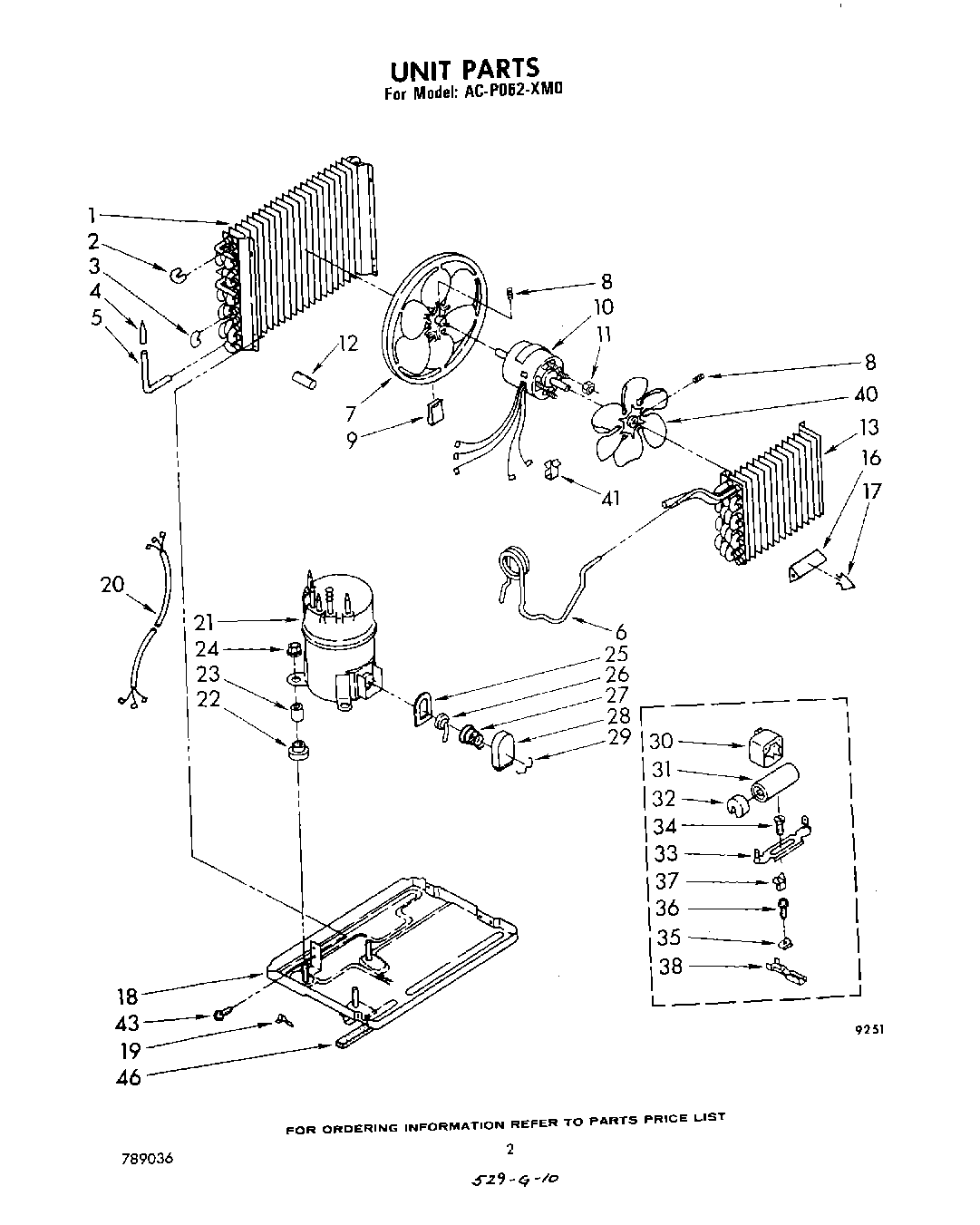

ACP062XM0 02 – UNIT PARTS
Written by
in
ACP062XM0 02 – UNIT PARTS
Products
Position
Product
1
condenser
2
Bend, Return Evaporator (4)
3
Bend, Return Evaporator (11)
4
Strainer
5
Tube & Strainer (Includes Item 23)
6
tube restrictor (length 40.0“)
7
Blade, Fan
8
Setscrew, 5/16 x 1/4
9
Clip, Balancing
10
Motor, Fan
11
WP488130 Whirlpool Air Conditioner Nut
12
dampener, split
13
Evaporator
16
Anticipator, Temperature
17
Clip, Anticipator
18
Base
19
Clamp, Tube (2)
20
Harness, Wiring
21
compressor
22
Grommet (4)
23
Sleeve (3)
24
Locknut (3)
25
Gasket, Terminal Cover
26
Overload
27
Spring, Overload
28
Cover, Terminal
29
Strap, Terminal Cover
30
Relay, Start
31
capacitor (component of start kit)
32
cap, capacitor (component of start kit)
33
Bracket, Capacitor (Component Of Start Kit)
34
Screw, 10 x 5/8 (Component Of Start Kit)
35
488660 Whirlpool Refrigerator Nut
36
WP965173 Whirlpool Dishwasher Screw
37
Multiplier, Terminal (Component Of Start Kit)
38
Clip, Terminal (Component Of Start Kit)
40
Fan, Blade Evaporator
41
Clamp, Wiring
43
WP489069 Whirlpool Compactor Screw
43
Screw, Repair
46
VALVE, ACCESS (5/8“)
46
compressor start kit
46
978026 Whirlpool Refrigerator Primary Valve
46
WP978025 Whirlpool Refrigerator Valve
46
978027 Whirlpool Refrigerator Primary Valve
46
VALVE, ACCESS (1/2“)
46
Seal, Base (R.S.)
46
Kit, Evaporator Repair (Aluminum Epoxy)
46
Cover, Winter (19“x12“x14“)
46
WPL 484220
46
valve, access (3/4“)
←
