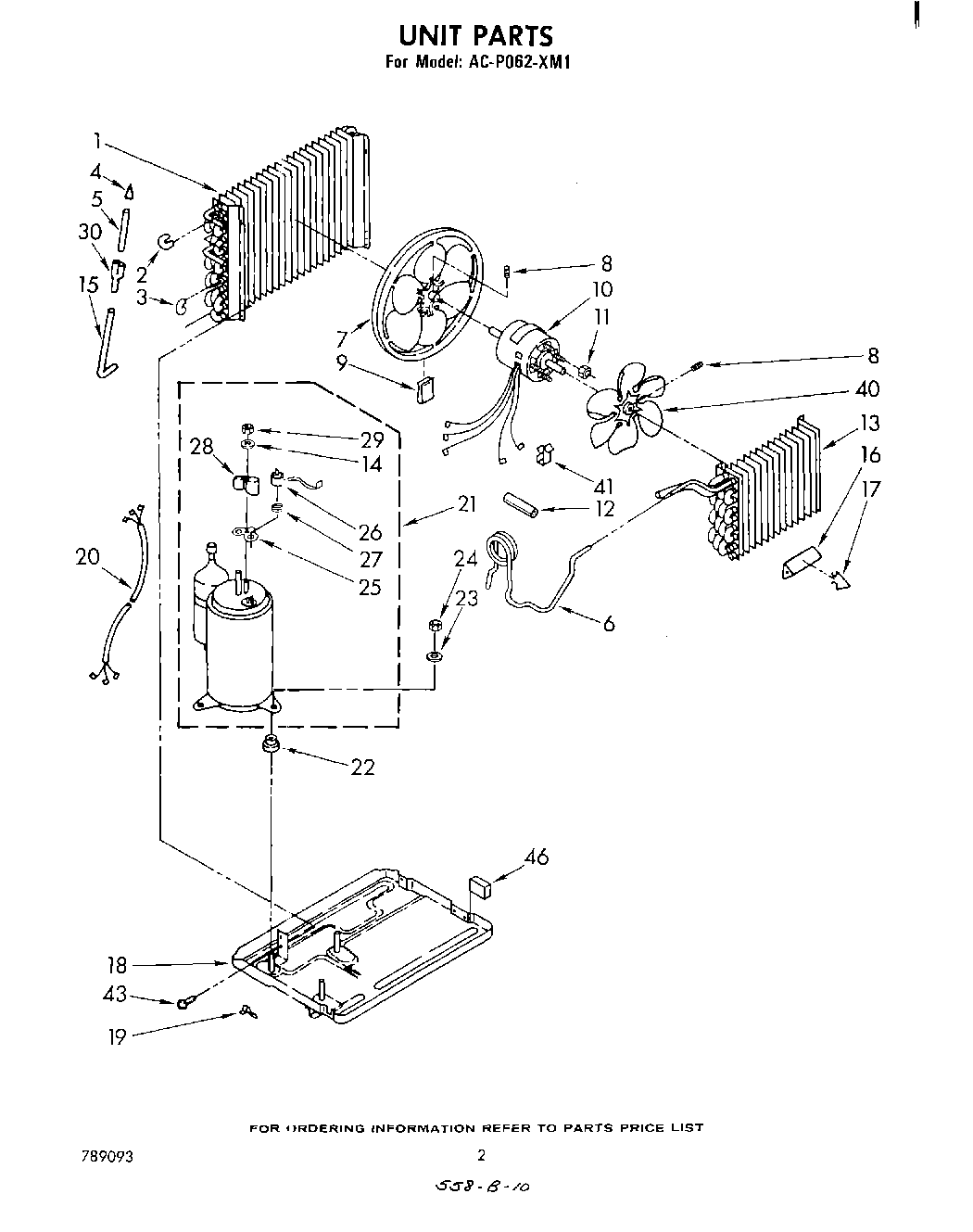

ACP062XM1 02 – UNIT PARTS

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 33.0“)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Dampener, Split
13	Evaporator
14	Gasket, Nut
15	Tube, Outlet
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Tube, Flow Divider
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
43	Screw, Repair
46	Kit, Evaporator Repair (Aluminum Epoxy)
46	978026 Whirlpool Refrigerator Primary Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	WP978025 Whirlpool Refrigerator Valve
46	978030 Whirlpool Refrigerator Valve
46	VALVE, ACCESS (1/2“)
46	Seal, Base (R.S.)
46	VALVE, ACCESS (5/8“)
46	No Drip Tape (For Sweating Tubes)
46	Oil, Turbine 1 Fl. Oz.
