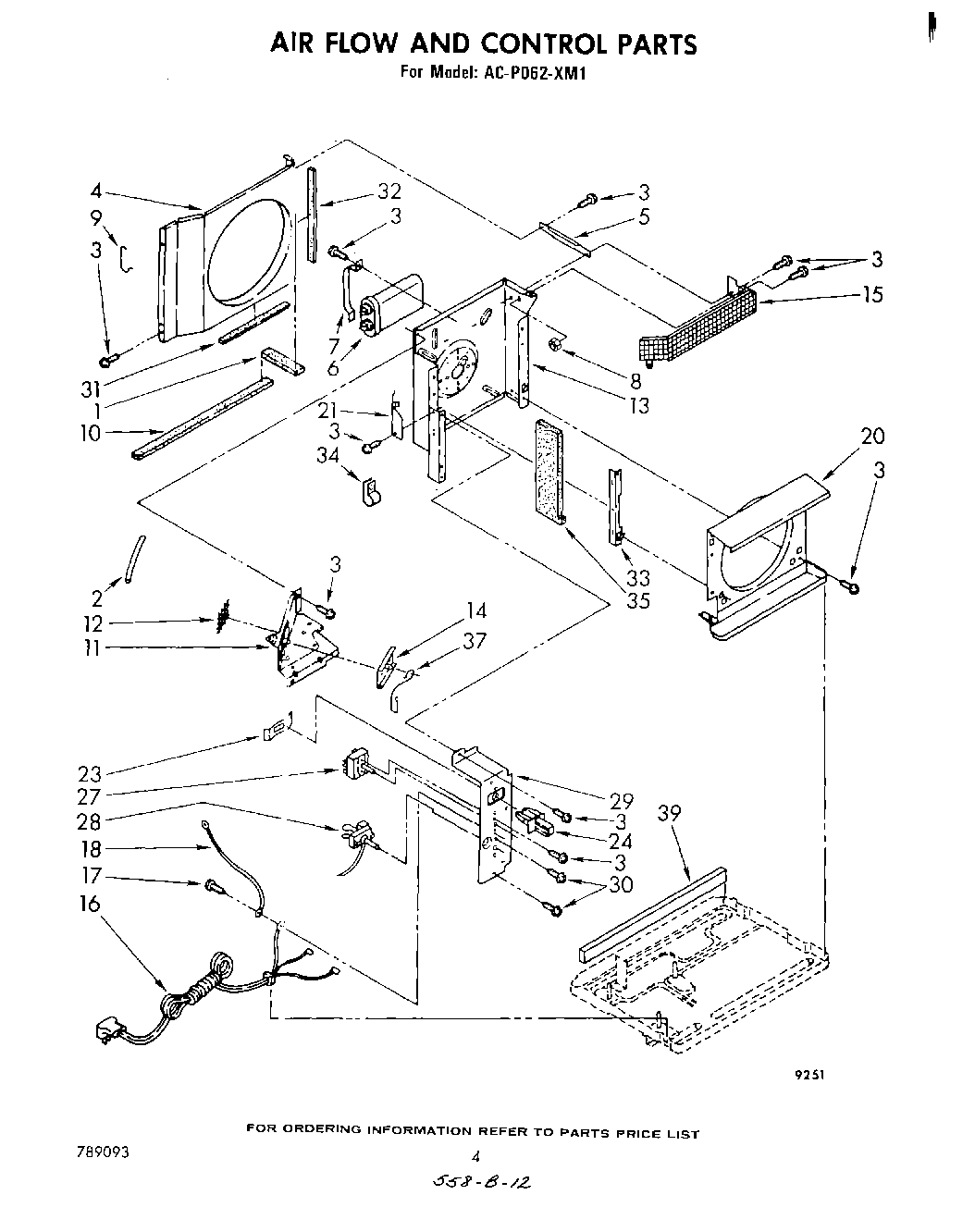

ACP062XM1 03 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
	List, Repair Parts
	WPL LIT951233
	Guide, E
	Literature Parts (Use & Care Guide)
1	Seal, Condensate
3	Screw, Repair
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	WP854334 Whirlpool Air Conditioner Sealing Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Retainer, Detent Spring
24	Actuator, Exhaust Door
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
33	Bracket, Evaporator Mounting
34	Clamp, Cable
35	Cut-Off, Evaporator Fan
37	Arm, Exhaust Door
39	Wire, Red, (25 Ft.)
39	212643 Whirlpool Refrigerator Permagum Sealer
39	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
39	Wire, 25“ Roll (Black 12 GA.)
39	Insulation, Fiberglass (1/4“ x 24“ x 48“)
39	Lacquer, Starlight Gray (1/2 Pt. Uncut)
39	Cover, Winter (19“x12“x14“)
39	Seal, Base, Flange
39	Wire, 25“ Roll (White 12 GA.)
39	WPL 649939
