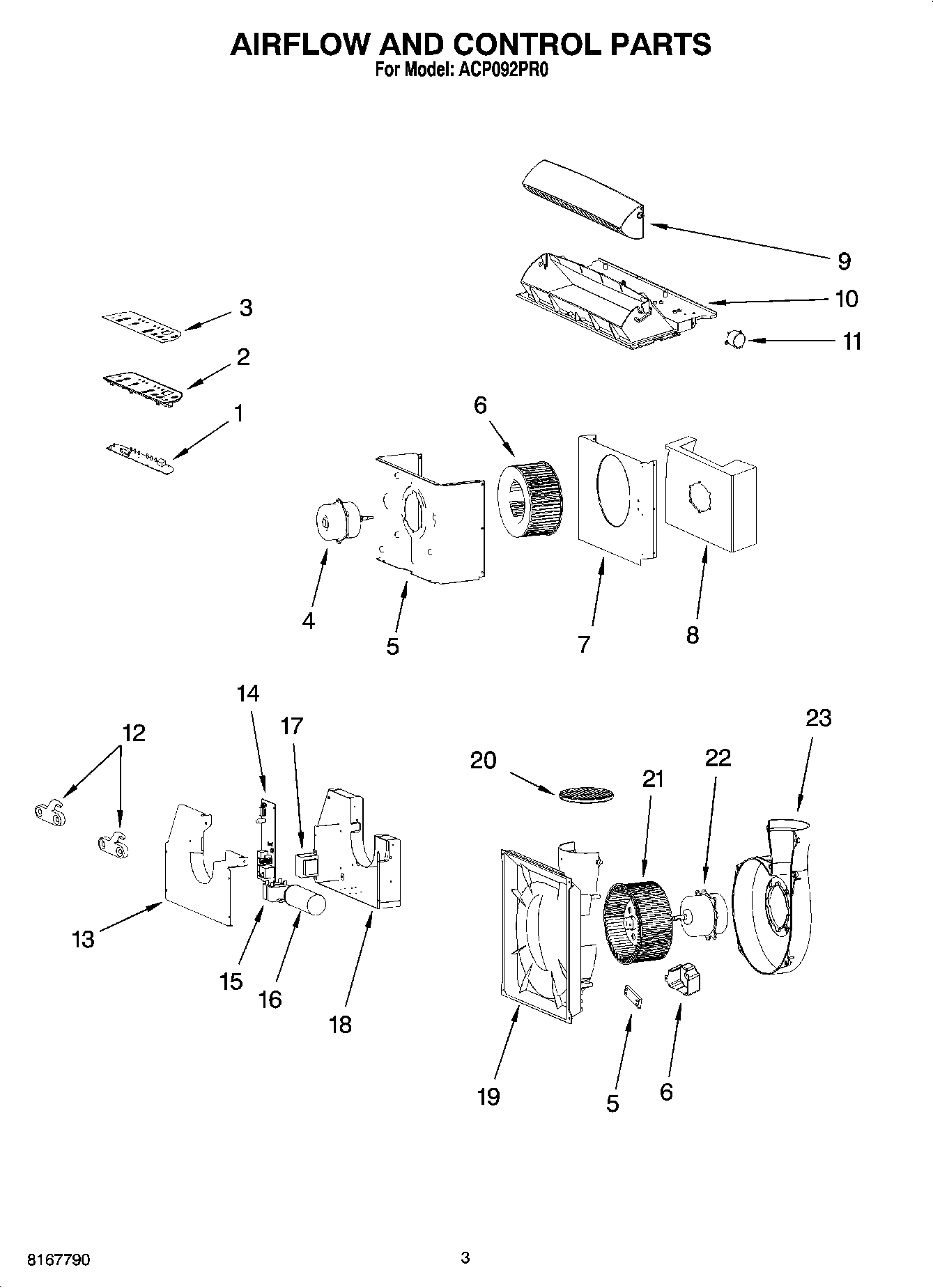

ACP092PR0 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1PC-Board, Control
2Base, Control Panel
3Overlay
4Motor, Upper
5Plate, Motor
6Wheel Blower, Upper
7Dividing Wall
8Housing, Air
9Louver Assembly
10Base, Louver
11Motor, Louver
12Clip, Left
13Cover, Control Box
14PC-Board, Power
15WP2201147 Whirlpool Refrigerator Capacitor
16Capacitor, Compressor
17Transformer
18Box, Control
19Shroud, Condenser Front
20Grate, Condenser Shroud
21Wheel Blower, Lower
22Motor, Lower
23Shroud, Condenser Back
