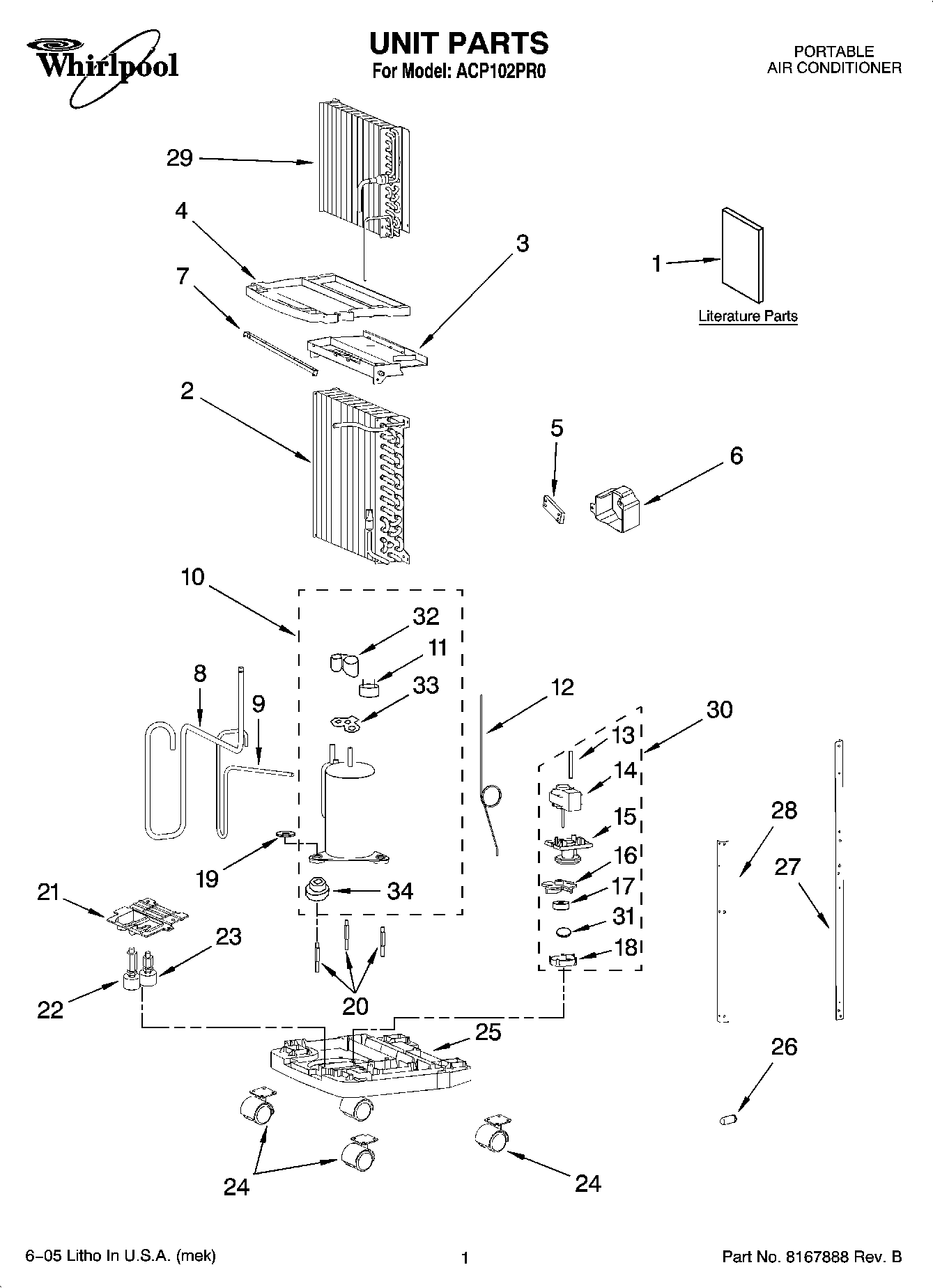

ACP102PR0 01 – UNIT PARTS

ACP102PR0 01 – UNIT PARTS

Written by

in

ACP102PR0 01 – UNIT PARTS

Products

Position	Product
1	Guide, Use & Care
1	Guide, Energy
1	Diagram, Wiring
2	Condenser
3	Sprinkler, Water
4	Base, Middle- Section
5	Terminal
6	Cover, Terminal
7	Support, Horizontal
8	Tube, Suction
9	Tube, Discharge
10	Compressor
11	OVERLOAD
12	Tube, Restrictor
13	Tubing, Pump
14	Motor, Pump
15	Base, Pump Motor
16	Impeller
17	Nut
18	Cover, Impeller
19	Nut
20	Bolt, Compressor
21	Base, Water Level Switch
22	Switch, Pumping
23	Switch, Warning
24	Roller
25	Base
26	Plug, Water
27	Support, Back
28	Support, Front
29	Evaporator
30	Pump Assembly
31	O-Ring, Gasket
32	Cover, Terminal
33	Gasket, Terminal Cover
34	GROMMET
34	REFRIGERANT CHARGE 21.6 oz.
