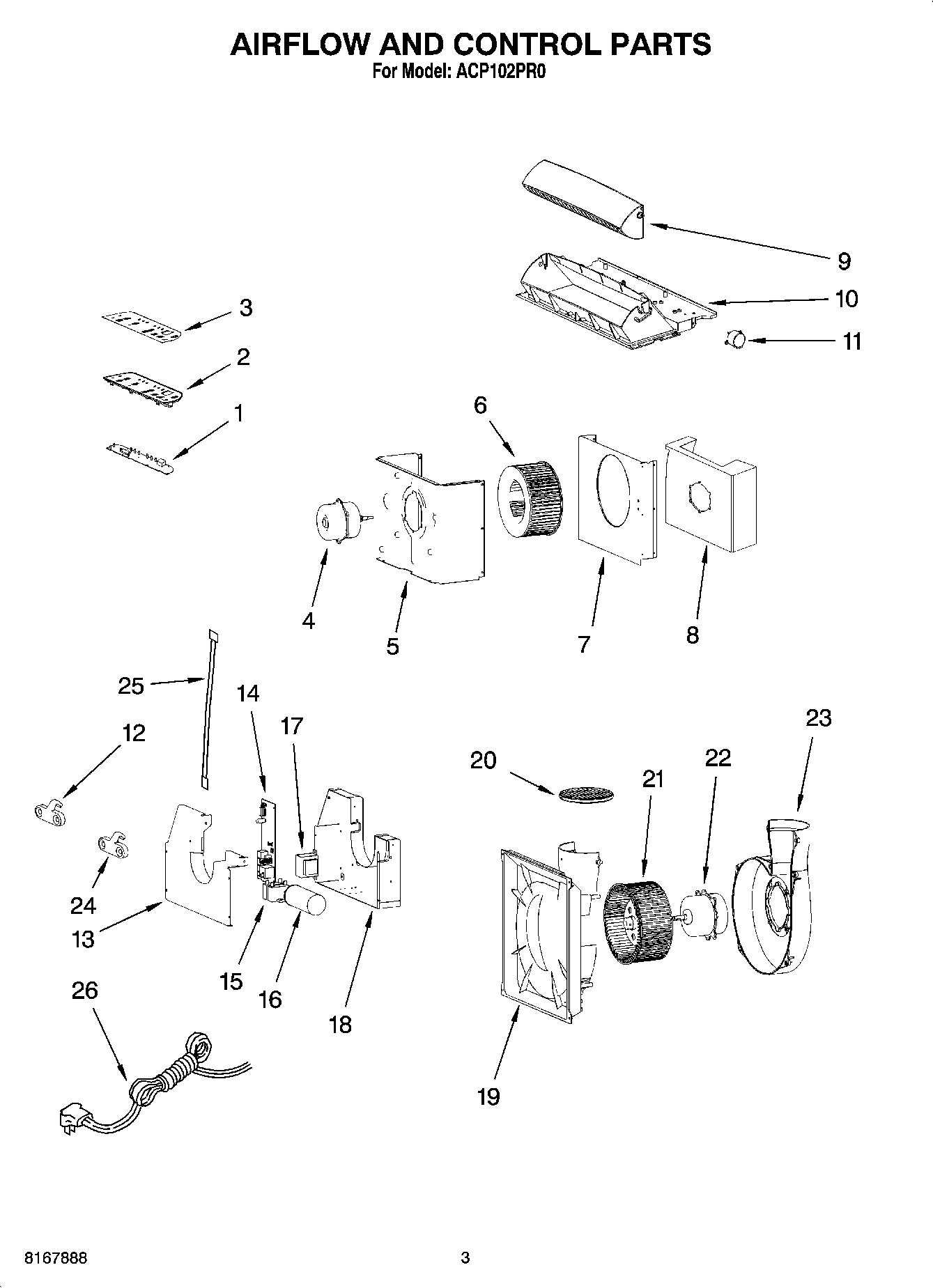

ACP102PR0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	PC-Board, Control
2	Base, Control Panel
3	Overlay
4	Motor, Upper
5	Plate, Motor
6	Wheel Blower, Upper
7	Dividing Wall
8	Housing, Air
9	Louver Assembly
10	Base, Louver
11	Motor, Louver
12	Clip, Left
13	Cover, Control Box
14	PC-Board, Power
15	WP2201147 Whirlpool Refrigerator Capacitor
16	Capacitor, Compressor
17	Transformer
18	Box, Control
19	Shroud, Condenser Front
20	Grate, Condenser Shroud
21	Wheel Blower, Lower
22	Motor, Lower
23	Shroud, Condenser Back
24	Clip, Right
25	Thermistor
26	Cord-Power
