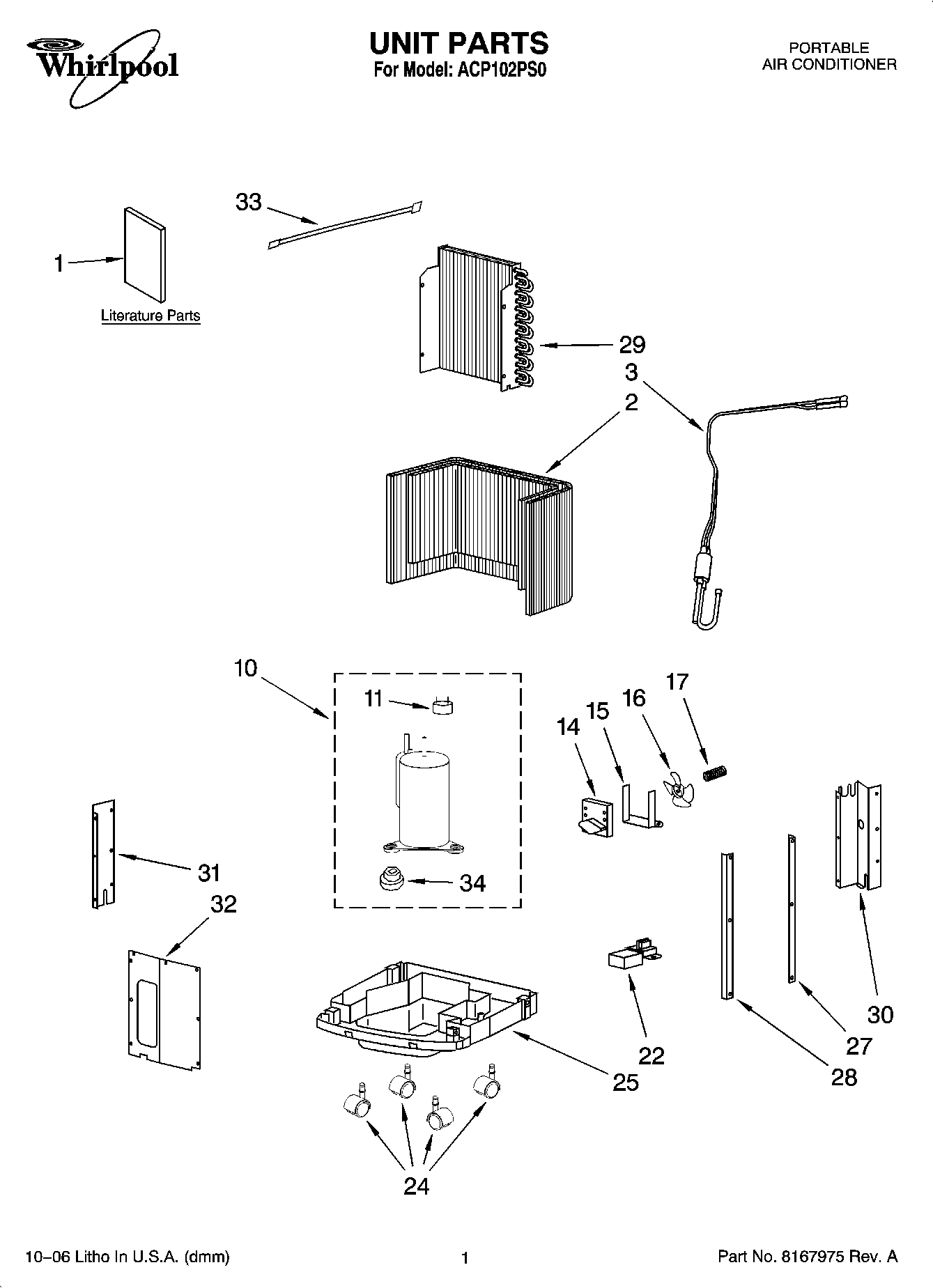

ACP102PS0 01 – UNIT PARTSadmin2025-04-26T10:55:08+00:00ACP102PS0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Guide, Use & Care |
| 1 | Diagram, Wiring |
| 2 | Condenser |
| 3 | Tube Restrictor Assembly |
| 10 | Compressor, Assembly |
| 11 | Overload |
| 14 | Motor, Fan |
| 15 | Base, Motor |
| 16 | Fan |
| 17 | Spring |
| 22 | Switch, Level |
| 24 | Roller |
| 25 | BASE |
| 27 | Support, Back (Left) |
| 27 | Support, Back (Right) |
| 28 | Support, Front (Left) |
| 28 | Support, Front (Right) |
| 29 | Evaporator |
| 30 | Support (Right) |
| 31 | Support (Left) |
| 32 | Support (Front) |
| 33 | Thermistor |
| 34 | Grommet |
| 34 | REFRIGERANT CHARGE 21.6 oz. |
