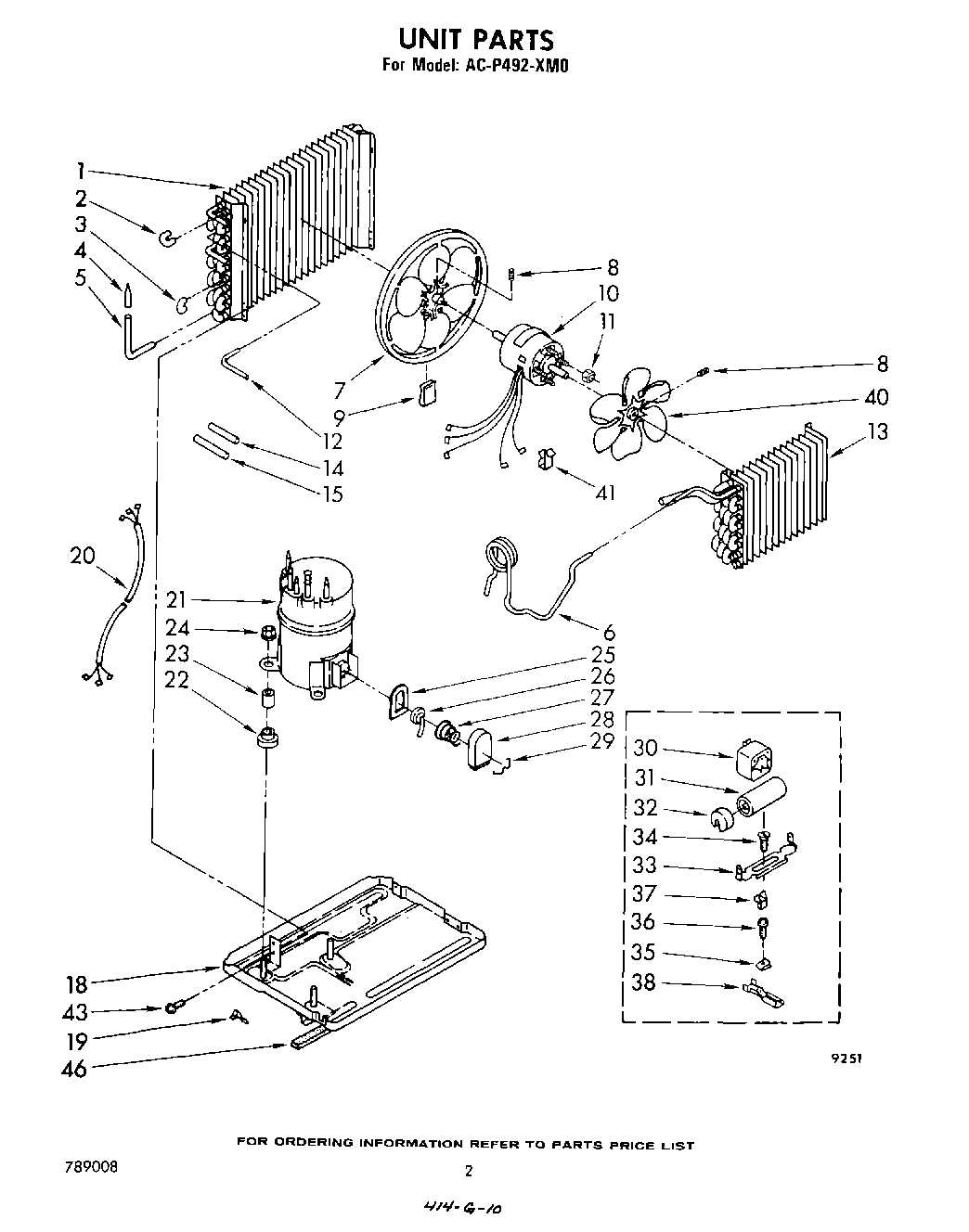

ACP492XM0 02 – UNIT PARTSadmin2025-04-26T10:56:09+00:00ACP492XM0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Condenser |
| 2 | Bend, Return |
| 3 | Bend, Return Evaporator (11) |
| 4 | Strainer |
| 5 | Tube & Strainer (Includes Item 23) |
| 6 | Tube, Restrictor (Length 33.0``) |
| 7 | Blade, Fan |
| 8 | Setscrew, 5/16 x 1/4 |
| 9 | Clip, Balancing |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | Tube, 90~ Connect (1) |
| 13 | Evaporator |
| 14 | Damper, Split |
| 15 | Damper, Split |
| 18 | Base |
| 19 | Clamp, Tube (2) |
| 20 | Harness, Wiring |
| 21 | Compressor |
| 22 | Grommet (4) |
| 23 | Sleeve (3) |
| 24 | Locknut (3) |
| 25 | Gasket, Terminal Cover |
| 26 | Overload |
| 27 | Spring, Overload |
| 28 | Cover, Terminal |
| 29 | Strap, Terminal Cover |
| 30 | Relay (Component Of Start Kit) |
| 31 | capacitor (component of start kit) |
| 32 | cap, capacitor (component of start kit) |
| 33 | Bracket, Capacitor (Component Of Start Kit) |
| 34 | Screw, 10 x 5/8 (Component Of Start Kit) |
| 35 | 488660 Whirlpool Refrigerator Nut |
| 36 | WP965173 Whirlpool Dishwasher Screw |
| 37 | Multiplier, Terminal (Component Of Start Kit) |
| 38 | Clip, Terminal (Component Of Start Kit) |
| 40 | Fan, Blade Evaporator |
| 41 | Clamp, Wiring |
| 43 | Screw, Repair |
| 43 | WP489069 Whirlpool Compactor Screw |
| 46 | 978026 Whirlpool Refrigerator Primary Valve |
| 46 | 978027 Whirlpool Refrigerator Primary Valve |
| 46 | WP978025 Whirlpool Refrigerator Valve |
| 46 | VALVE, ACCESS (1/2``) |
| 46 | 978030 Whirlpool Refrigerator Valve |
| 46 | VALVE, ACCESS (5/8``) |
| 46 | Kit, Evaporator Repair (Aluminum Epoxy) |
| 46 | Cover, Winter (19``x12``x14``) |
| 46 | WPL 484220 |
| 46 | Seal, Base (R.S.) |
| 46 | WPL 485608 |
