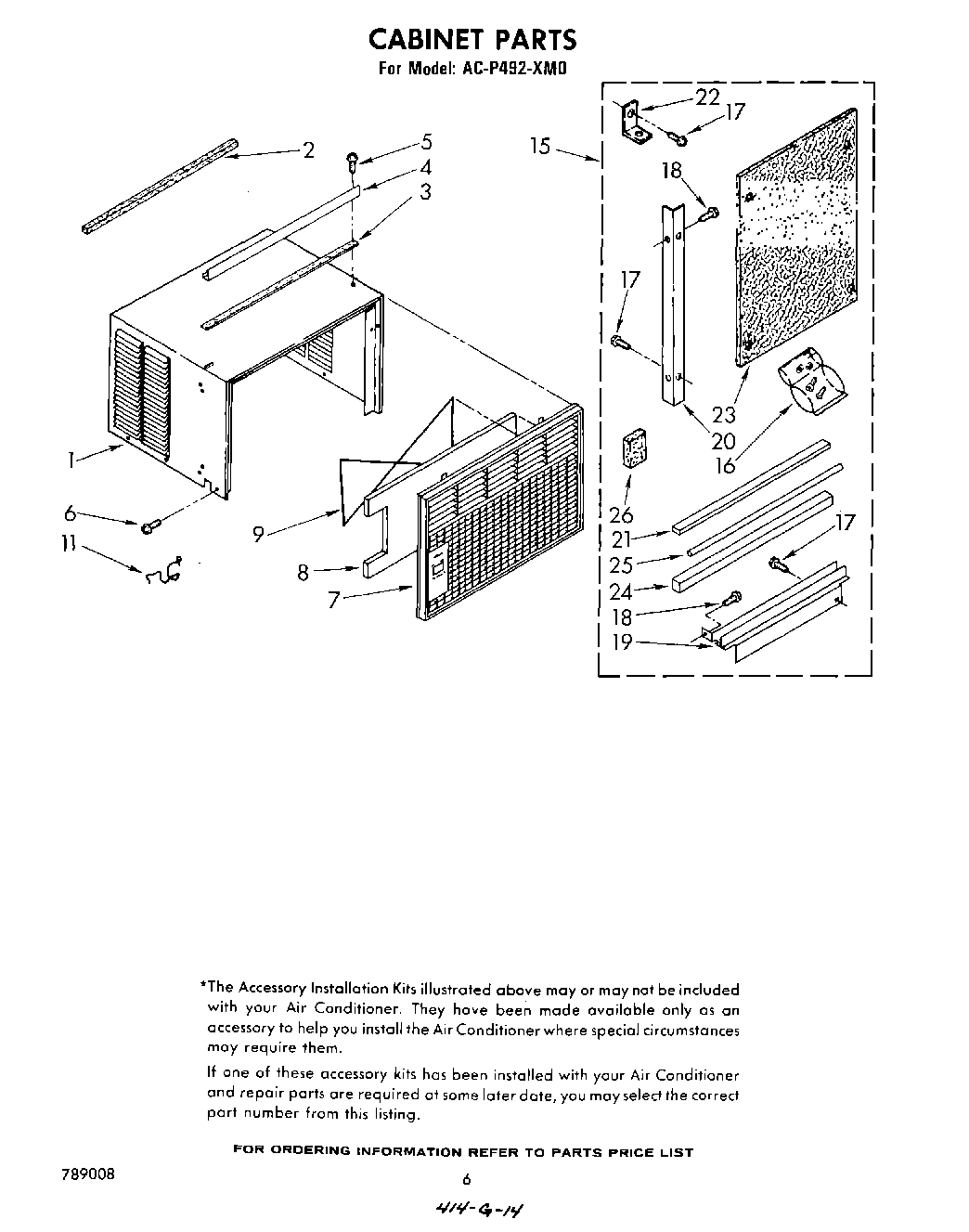

ACP492XM0 04 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Seal, Rear Cabinet Flange
3Seal, Strip
4Channel, Top
5Screw, 10 x 3/4
6WP489128 Whirlpool Refrigerator Screw
7Front, Cabinet
8Filter
9Retainer, Filter
11Clip, Mtg. (2) (Base to Front)
15Kit, Standard Window Installation
16Bag, Accessory
17Screw, Wood 8-15 x .750
18WP965173 Whirlpool Dishwasher Screw
19Bracket, R.S.
20Angle, Side (2)
21Strip, Seal
22Bracket
23Board, Filler (2)
24Gasket, Meeting Rail
25212643 Whirlpool Refrigerator Permagum Sealer
26Spacer, Block (4)
