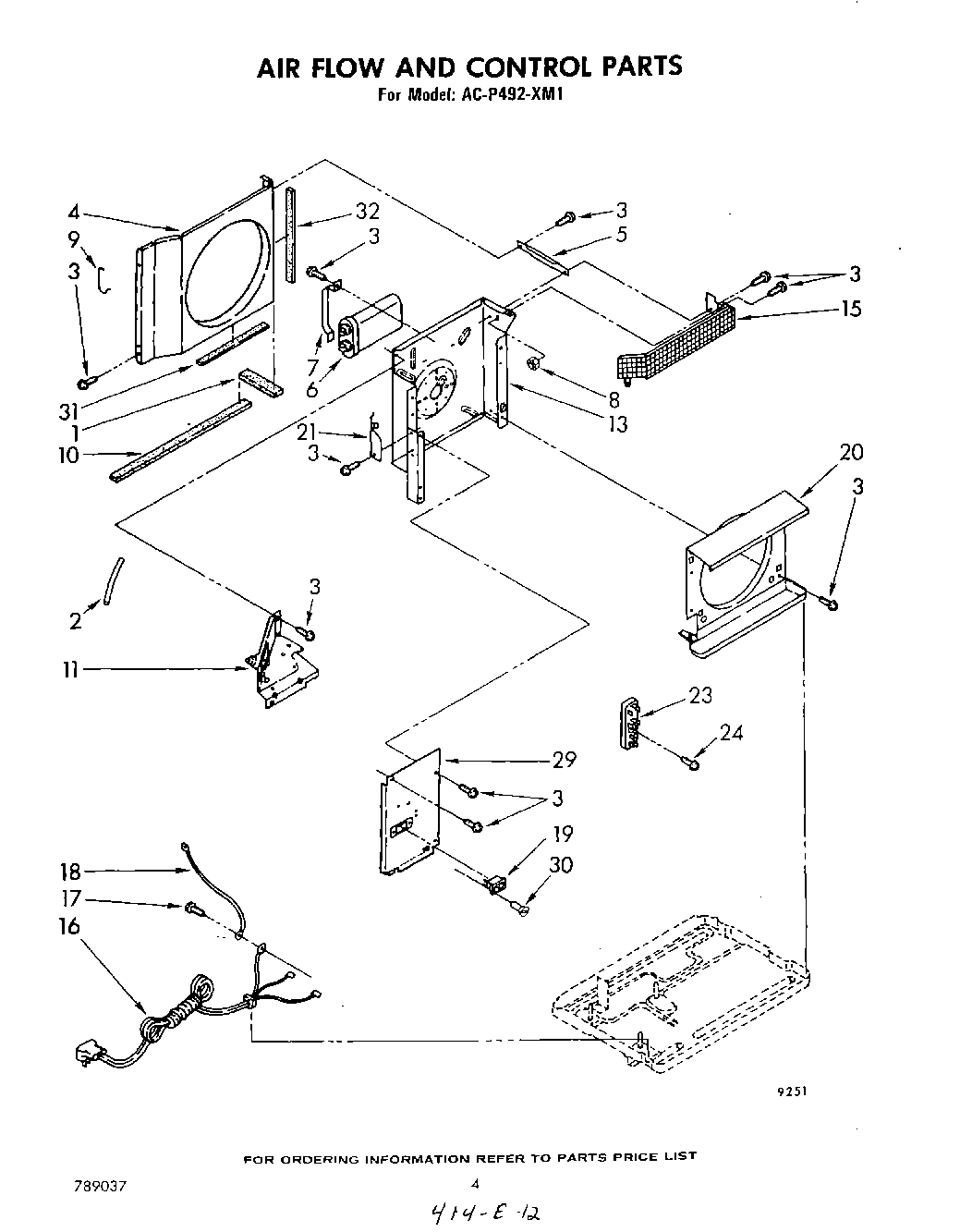

ACP492XM1 03 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Seal, Condensate
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	WP854334 Whirlpool Air Conditioner Sealing Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Switch, Rocker
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Board, Terminal
24	WPL 488966
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
32	212643 Whirlpool Refrigerator Permagum Sealer
32	Wire, 25“ Roll (White 12 GA.)
32	List, Repair Parts
32	Guide, Energy
32	Guide, Use & Care
32	Sheet, Service Tech (Service Information)
32	Wire, 25“ Roll (Black 12 GA.)
32	WPL 799351
32	Oil, Turbine 1 Fl. Oz.
32	Seal, Condenser (R.S.)
32	Insulation, Fiberglass (1/4“ x 24“ x 48“)
32	Wire, Red, (25 Ft.)
32	Lacquer, Starlight Gray (1/2 Pt. Uncut)
32	No Drip Tape (For Sweating Tubes)
32	WPL 649939
32	Guide, Consumer Buy
