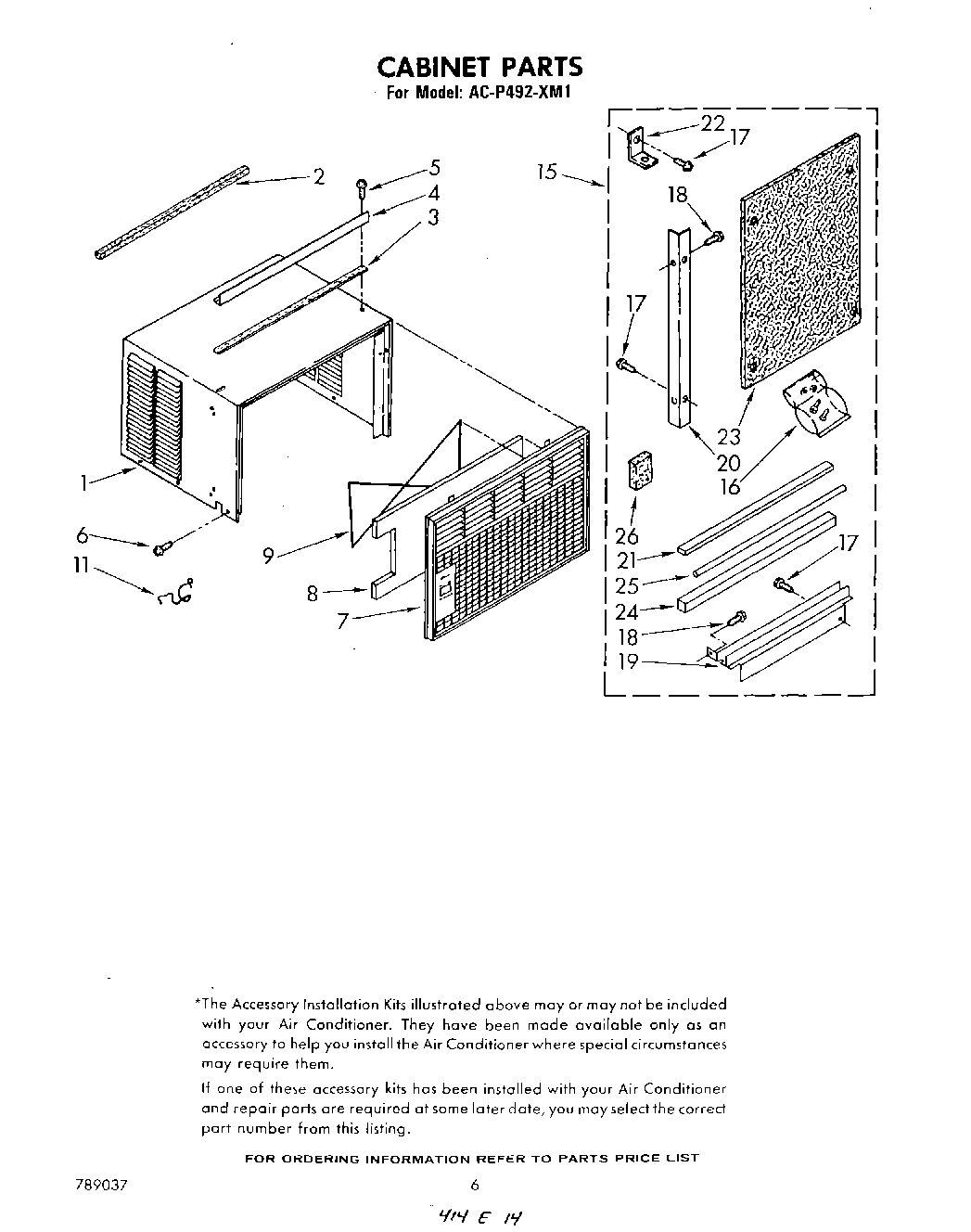

ACP492XM1 04 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Seal, Rear Cabinet Flange
3	Seal, Strip
4	Channel, Top
5	Screw, 10 x 3/4
6	WP489128 Whirlpool Refrigerator Screw
7	Front, Cabinet
8	Filter
9	Retainer, Filter
11	Clip, Mtg. (2) (Base to Front)
15	Kit, Standard Window Installation
16	Bag, Accessory
17	Screw, Wood 8-15 x .750
18	WP965173 Whirlpool Dishwasher Screw
19	Bracket, L.S.
19	Bracket, R.S.
20	Angle, Side (2)
21	Strip, Seal
22	Bracket
23	Board, Filler (2)
24	Gasket, Meeting Rail
25	212643 Whirlpool Refrigerator Permagum Sealer
26	Spacer, Block (4)
