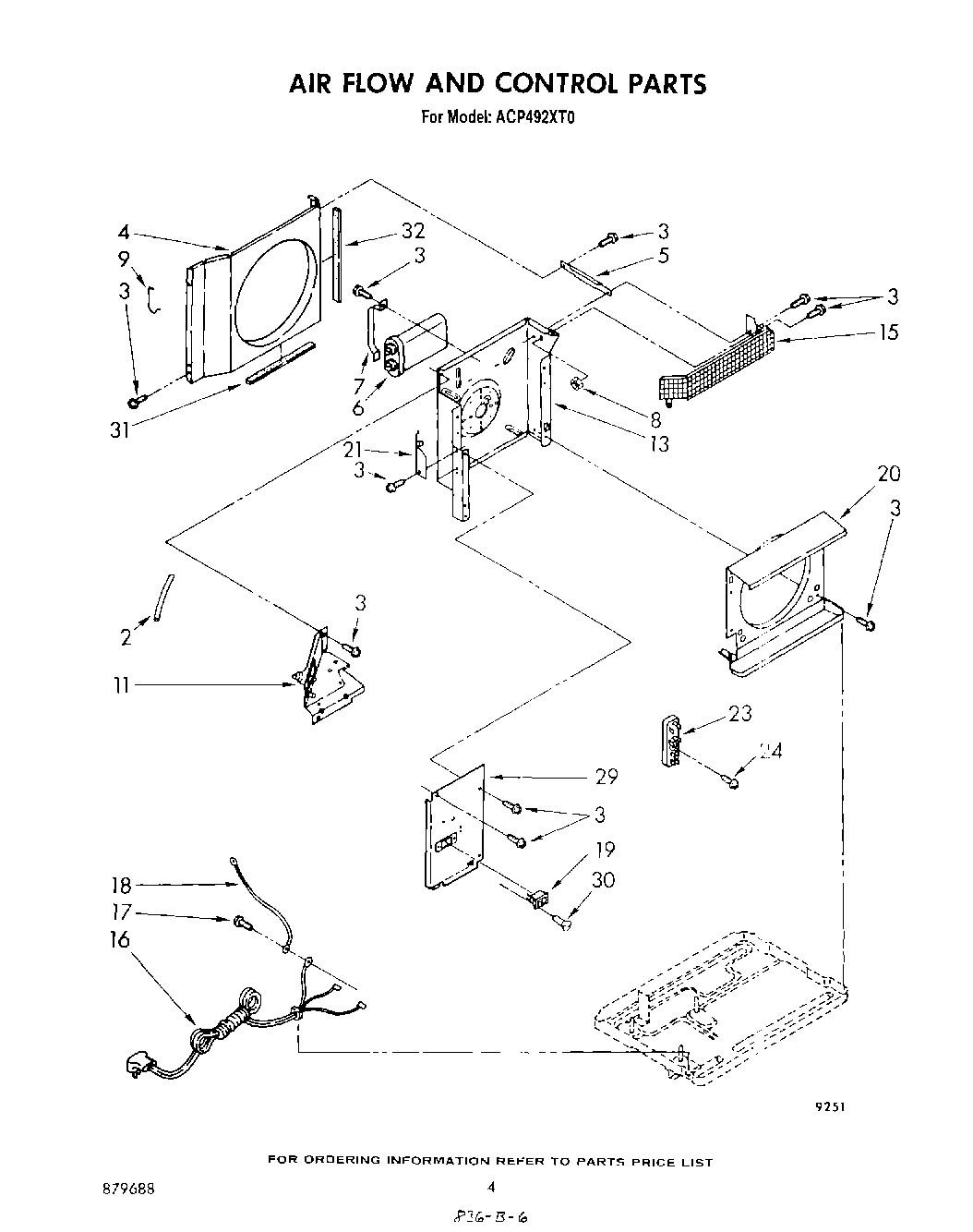

ACP492XT0 03 – AIR FLOW AND CONTROLadmin2025-04-26T12:01:52+00:00ACP492XT0 03 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 2 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 3 | WP489069 Whirlpool Compactor Screw |
| 3 | Screw, Repair |
| 4 | Shroud, Condenser |
| 5 | Support, Unit |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 8 | Nut, Speed No.8A |
| 9 | Clip, Shroud (2) |
| 11 | Extension, Dividing Wall (Requires Insulation Part No. 469938) |
| 13 | Wall, Dividing Assembly (Requires Insulation Part No. 469938) |
| 15 | Guard, Evaporator Impeller |
| 16 | Cord, Appliance |
| 17 | WPW10141604 Whirlpool Screw |
| 18 | Wire, Ground |
| 19 | Switch, Rocker |
| 20 | Shroud, Evaporator |
| 21 | Plate, Dividing Wall |
| 23 | Board, Terminal |
| 24 | WPL 488966 |
| 29 | Panel, Control |
| 30 | Screw, 6-32 x .175 |
| 31 | Seal, Condenser |
| 32 | Seal, Condenser (R.S.) |
