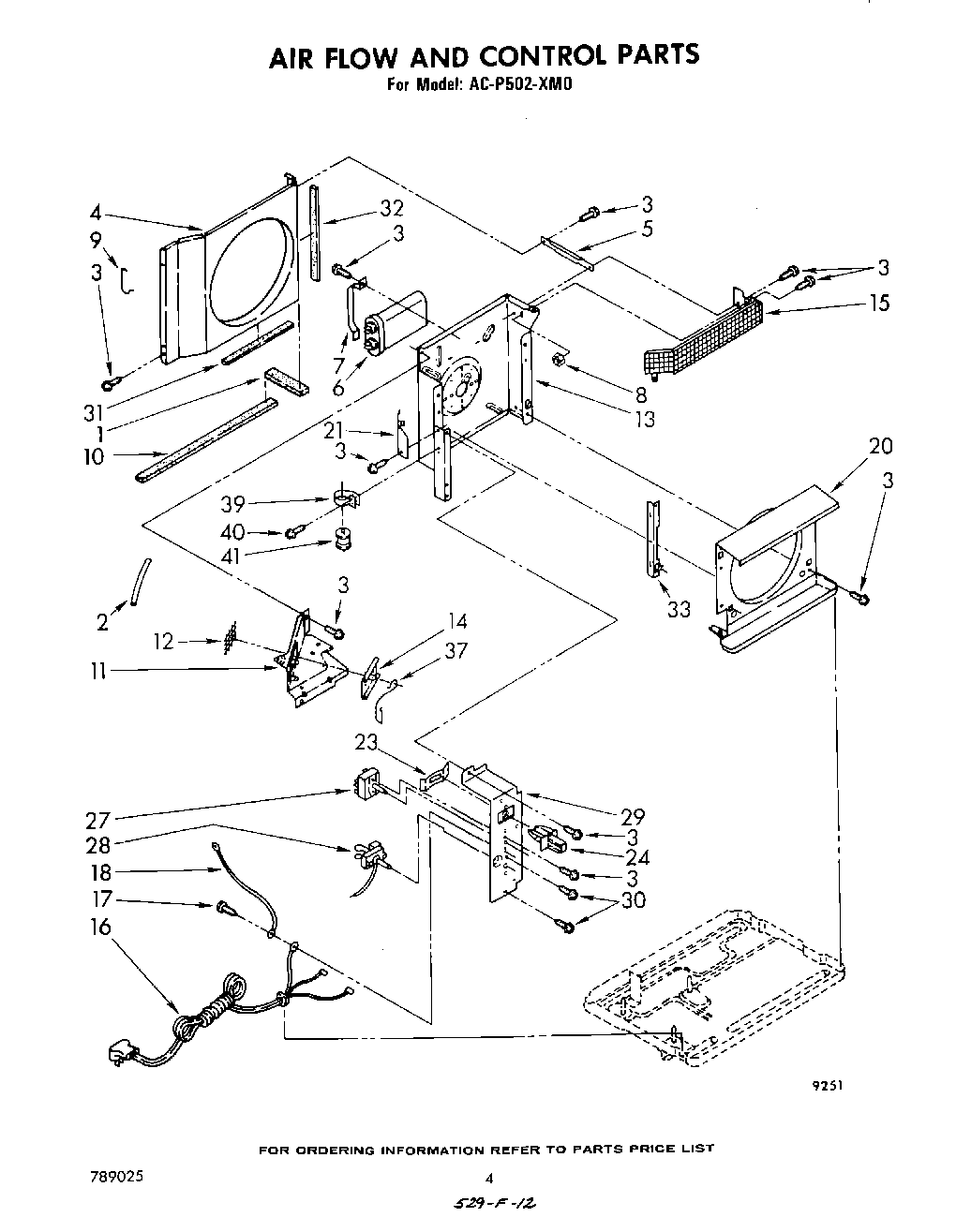

ACP502XM0 03 – AIRFLOW AND CONTROL PARTS
Written by
in
ACP502XM0 03 – AIRFLOW AND CONTROL PARTS
Products
Position
Product
1
Seal, Condensate
3
WP489069 Whirlpool Compactor Screw
3
Screw, Repair
4
Shroud, Condenser
5
Support, Unit
6
Capacitor, Running
7
Bracket, Capacitor
8
Nut, Speed No.8A
9
Clip, Shroud (2)
10
Seal, Strip
11
Extension, Dividing Wall (Requires Insulation Part No. 469938)
12
Screen, Exhaust Door
13
Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14
Door, Exhaust
15
Guard, Evaporator Impeller
16
Cord, Appliance
17
WPW10141604 Whirlpool Screw
18
Wire, Ground
20
Shroud, Evaporator
21
Plate, Dividing Wall
23
Retainer, Detent Spring
24
Actuator, Exhaust Door
27
Switch, Rotary
28
Control, Temperature
29
Panel, Control
30
Screw, 6-32 x .175
31
Seal, Condenser
32
Seal, Condenser (R.S.)
33
Bracket, Evaporator Mounting
37
Arm, Exhaust Door
39
Clamp, Mounting
40
WP965173 Whirlpool Dishwasher Screw
41
WPL 950225
41
WPL 950282
41
List, Repair Parts
41
WPL 949177
41
WPL 950318
41
WPL 649939
41
WPL 799351
41
No Drip Tape (For Sweating Tubes)
41
Lacquer, Starlight Gray (1/2 Pt. Uncut)
41
Wire, Red, (25 Ft.)
41
Insulation, Fiberglass (1/4“ x 24“ x 48“)
41
Oil, Turbine 1 Fl. Oz.
41
Wire, 25“ Roll (White 12 GA.)
41
Wire, 25“ Roll (Black 12 GA.)
41
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
41
212643 Whirlpool Refrigerator Permagum Sealer
41
WPL 950326
←
