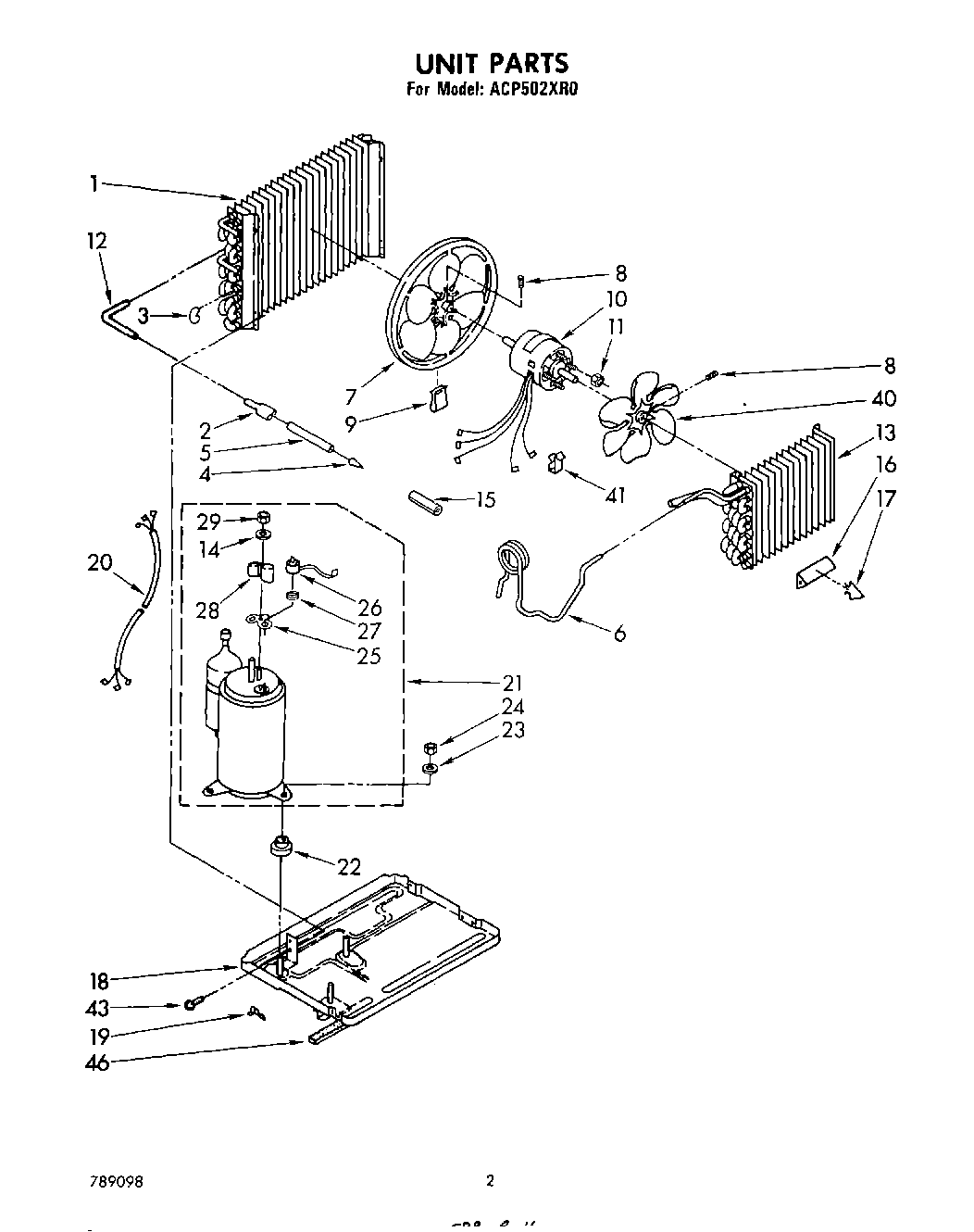

ACP502XR0 02 – UNIT PARTS

Products

Position	Product
1	Condenser
2	Tube, Flow Divider
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 40.0“)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Outlet
13	Evaporator
14	Gasket, Nut
15	Dampener, Split
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
43	Screw, Repair
46	VALVE, ACCESS (5/8“)
46	VALVE, ACCESS (1/2“)
46	WP978025 Whirlpool Refrigerator Valve
46	978030 Whirlpool Refrigerator Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	Kit, Evaporator Repair (Aluminum Epoxy)
46	978026 Whirlpool Refrigerator Primary Valve
46	Cover, Winter (19“x12“x14“)
46	Seal, Base (R.S.)
