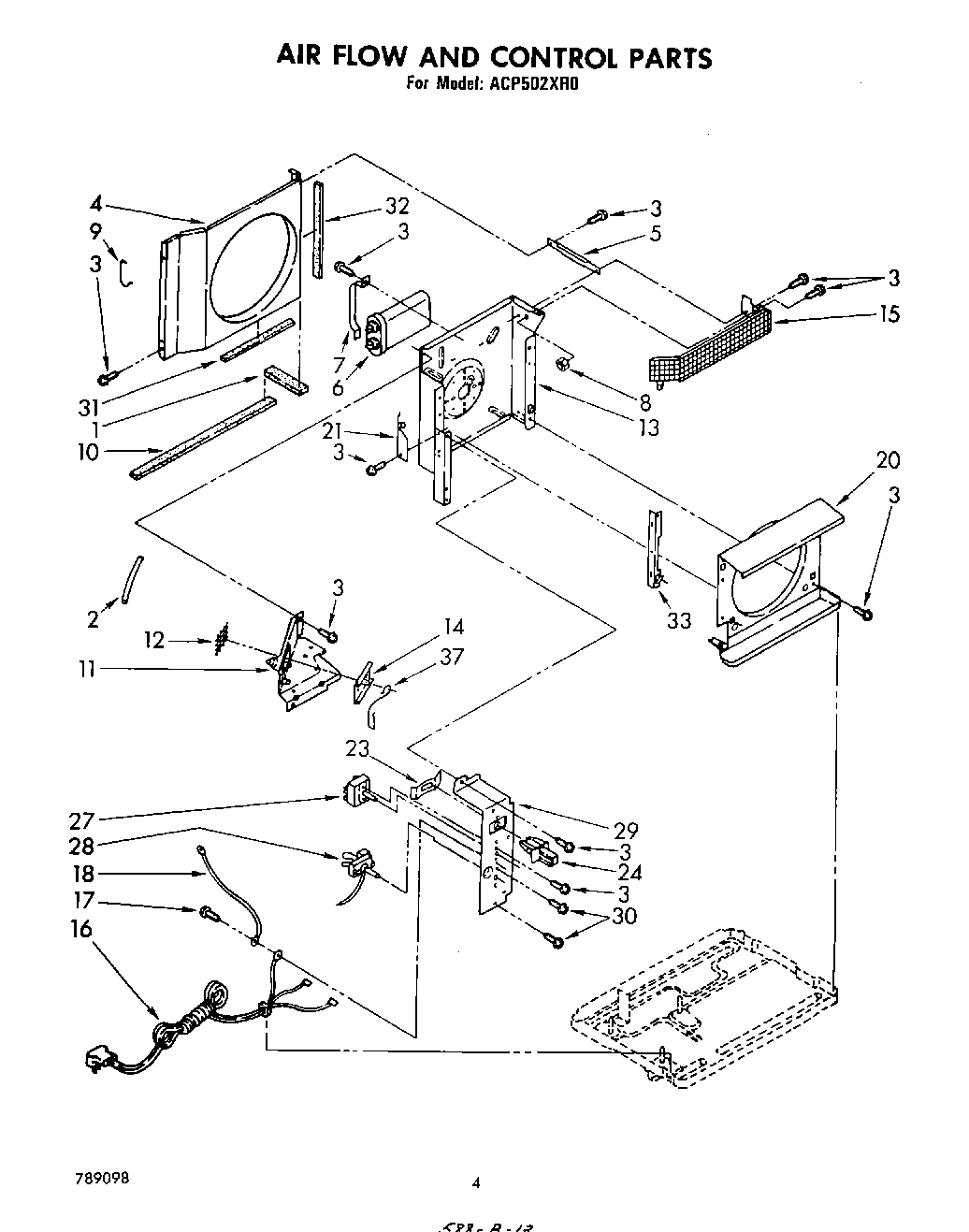

ACP502XR0 03 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
	WPL LIT952514
	Sheet, Service Tech (Service Information)
	List, Repair Parts
	Literature Parts (Use & Care Guide)
1	Seal, Condensate
3	Screw, Repair
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	Seal, Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Retainer, Detent Spring
24	Actuator, Exhaust Door
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
33	Bracket, Evaporator Mounting
37	212643 Whirlpool Refrigerator Permagum Sealer
37	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
37	Wire, 25“ Roll (Black 12 GA.)
37	Oil, Turbine 1 Fl. Oz.
37	No Drip Tape (For Sweating Tubes)
37	Arm, Exhaust Door
37	Wire, 25“ Roll (White 12 GA.)
37	Lacquer, Starlight Gray (1/2 Pt. Uncut)
37	Insulation, Fiberglass (1/4“ x 24“ x 48“)
37	Wire, Red, (25 Ft.)
37	WPL 649939
