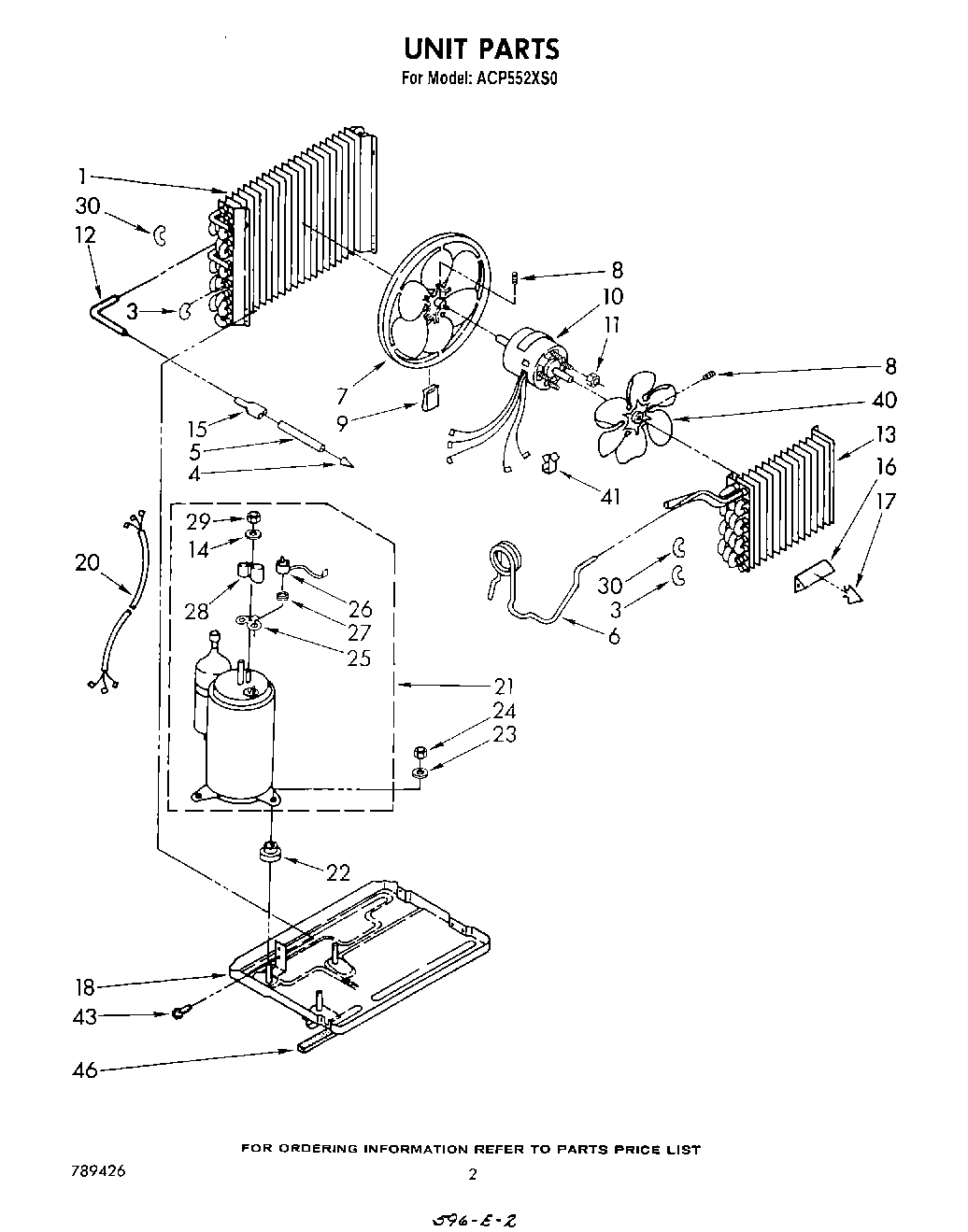

ACP552XS0 02 – UNIT

Products

Position	Product
1	Condenser
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 50.0“)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Outlet
13	Evaporator
14	Gasket, Nut
15	Tube, Flow Divider
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
20	Harness, Wiring
21	Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Bend, Return Evaporator (4)
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	Screw, Repair
43	WP489069 Whirlpool Compactor Screw
46	Seal, Condenser (R.S.)
