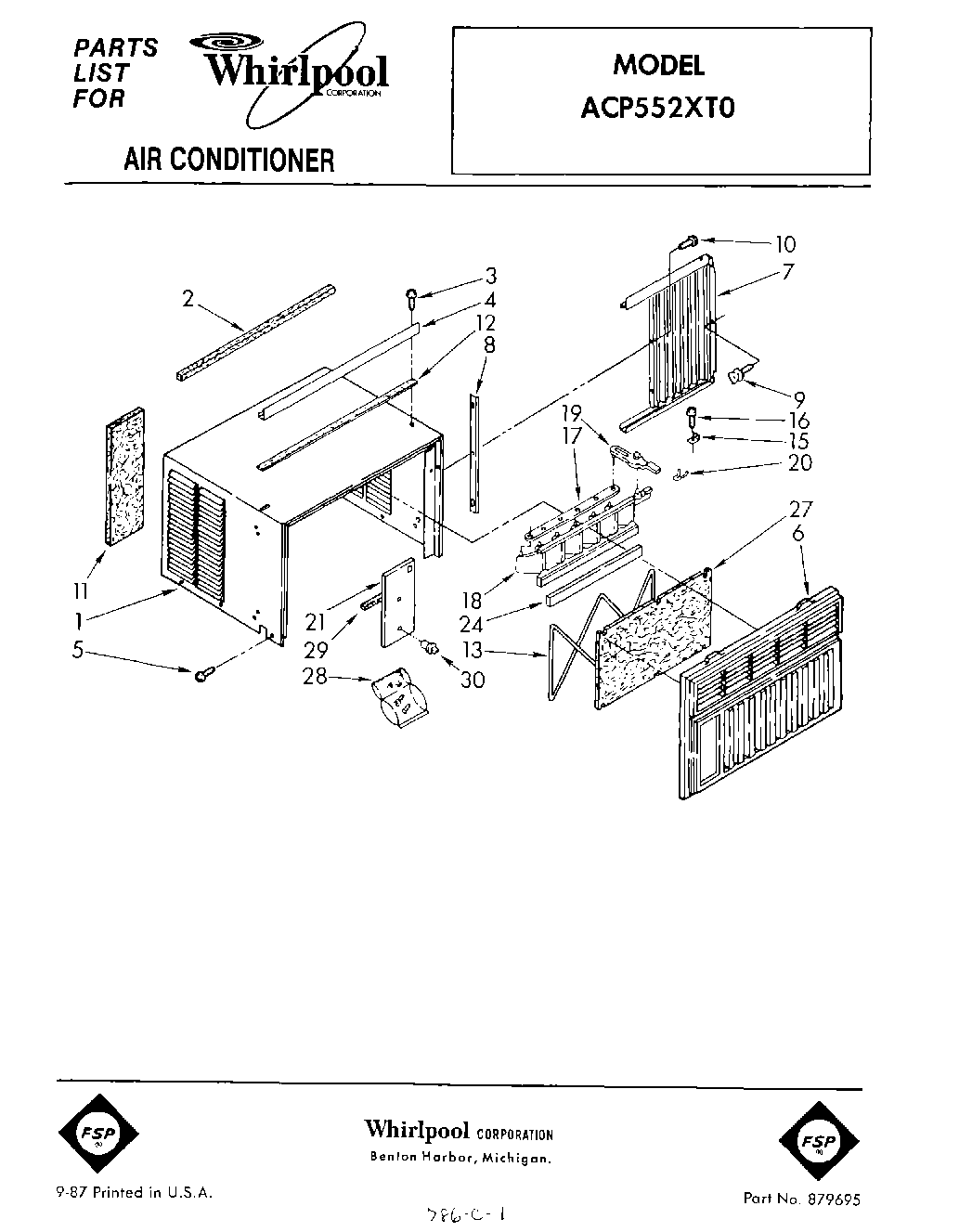

ACP552XT0 01 – CABINET AND FRONT

ACP552XT0 01 – CABINET AND FRONT

Written by

in

ACP552XT0 01 – CABINET AND FRONT

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489128 Whirlpool Refrigerator Screw
6Front, Cabinet Assembly
7Housing, Curtain (L.S.)
7Housing, Curtain (R.S.)
8Retainer, Curtain (2)
9Thumbscrew (2)
10Screw, 8 x 7/16
11Seal, Rear Cabinet Flange
12Seal, Strip
13Retainer, Filter
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver (2)
20Detent Spring (2)
21Plate, Escutcheon
24Seal, Vertical Louver
27Filter
28Bag, Accessory
29WP854334 Whirlpool Air Conditioner Sealing Strip
30Knob, Control
