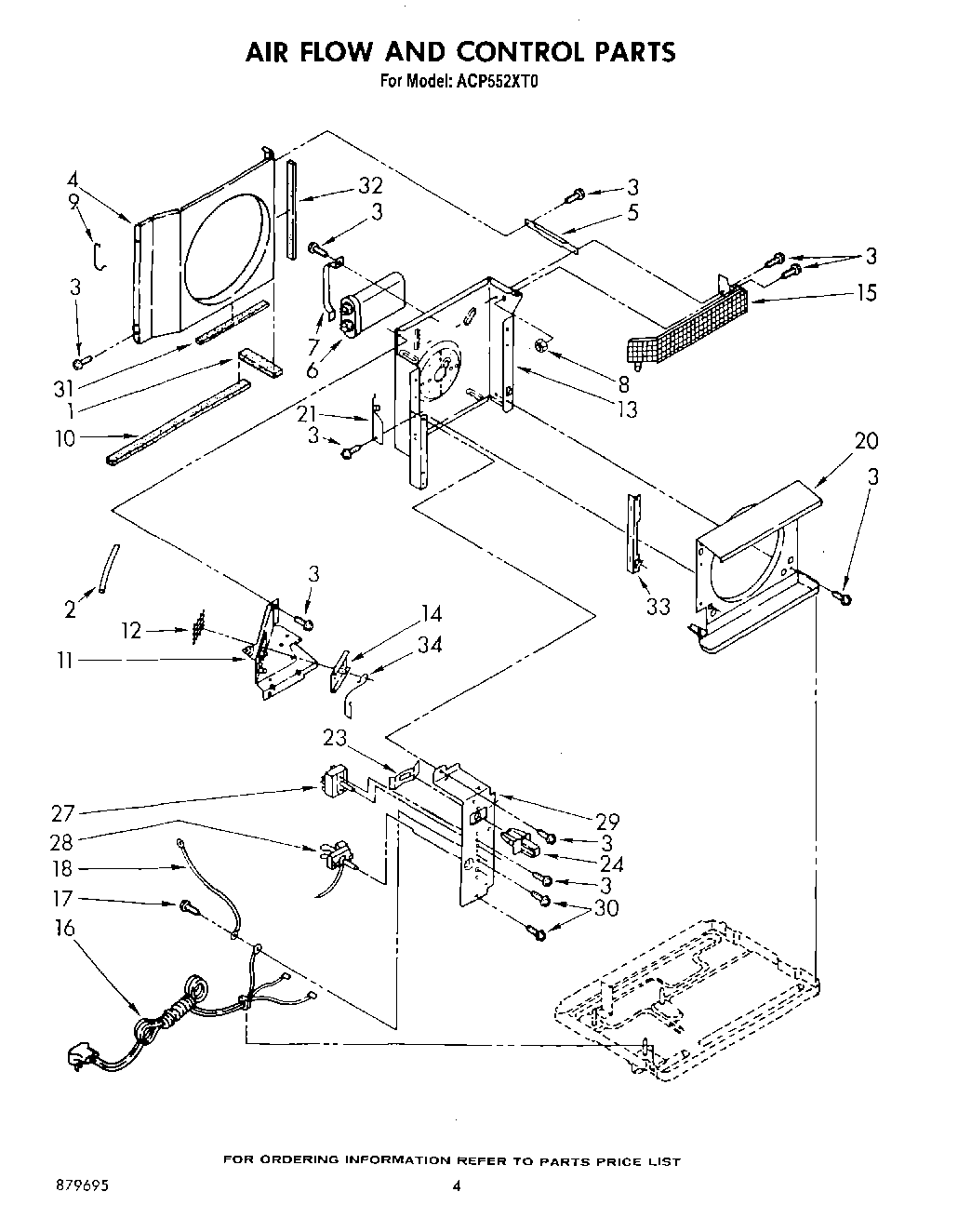

ACP552XT0 03 – AIRFLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
2212643 Whirlpool Refrigerator Permagum Sealer
3WP489069 Whirlpool Compactor Screw
3Screw, Repair
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Nut, Speed No.8A
9Clip, Shroud (2)
10Seal, Condenser
11Extension, Dividing Wall (Requires Insulation Part No. 469938)
12Screen, Exhaust Door
13Wall, Dividing
14Door, Exhaust
15Guard, Evaporator Impeller
16Cord, Appliance
17WPW10141604 Whirlpool Screw
18Wire, Ground
20Shroud, Evaporator
21Plate, Dividing Wall
23Retainer, Detent Spring
24Actuator, Door
27Switch, Rotary
28Control, Temperature
29Panel, Control
30Screw, 6-32 x .175
31WP854334 Whirlpool Air Conditioner Sealing Strip
32Seal, Condenser (R.S.)
33Bracket, Evaporator Mounting
34Arm, Exhaust Door
