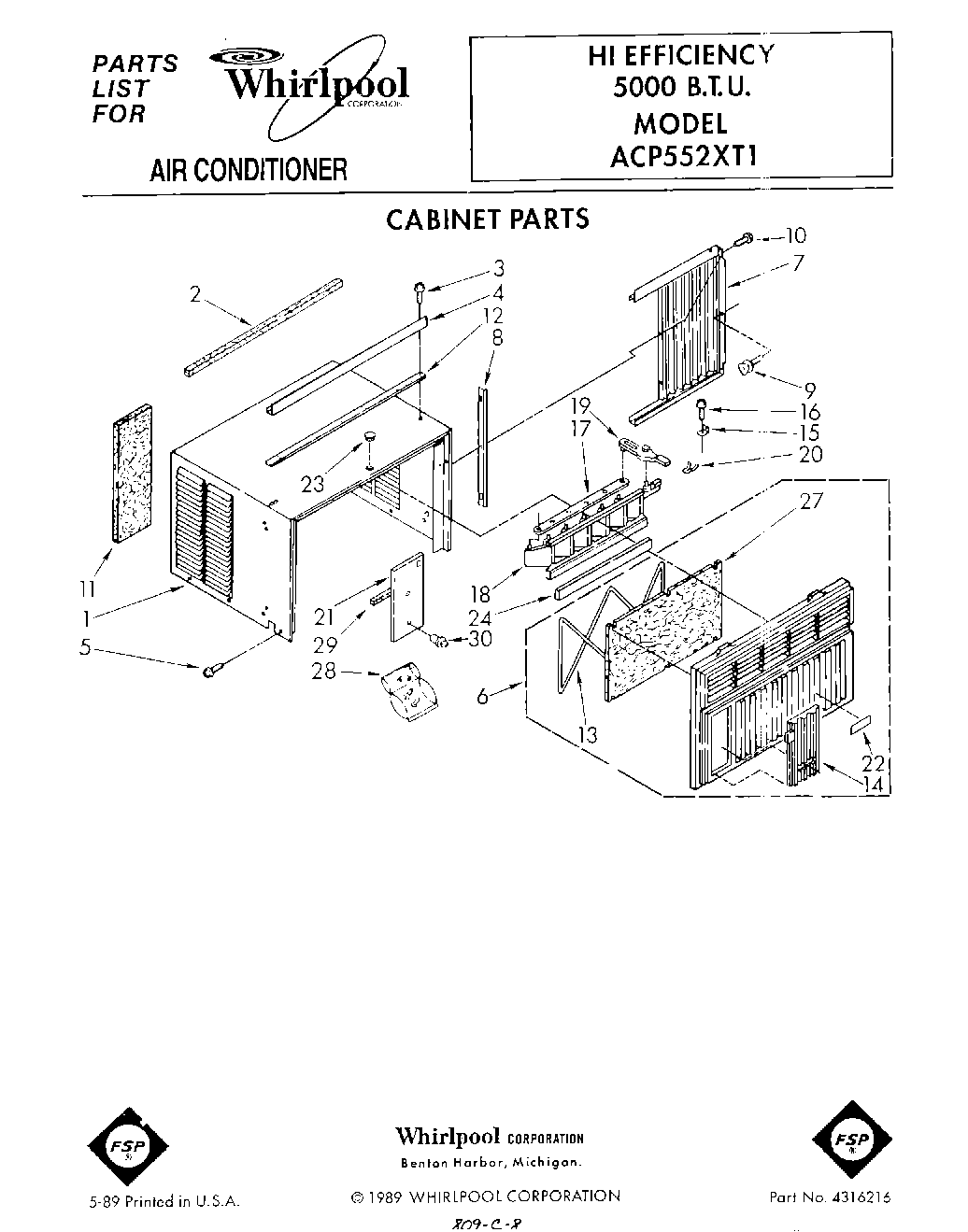

ACP552XT1 01 – CABINET

Products

Position	Product
1	Cabinet
1	Insulation Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489128 Whirlpool Refrigerator Screw
6	Front, Cabinet Assembly
7	Housing, Curtain (R.S.)
7	Housing, Curtain (L.S.)
8	Retainer, Curtain (2)
9	Thumbscrew (2)
10	Screw, 8 x 7/16
11	Seal, Rear Cabinet Flange
12	Seal, Strip
13	Retainer, Filter
14	Door, Control
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Plate, Escutcheon
22	Plate, Name
23	Cover, Hole
24	Seal, Vertical Louver
27	Filter
28	Bag, Accessory
29	WP854334 Whirlpool Air Conditioner Sealing Strip
30	Knob, Control
