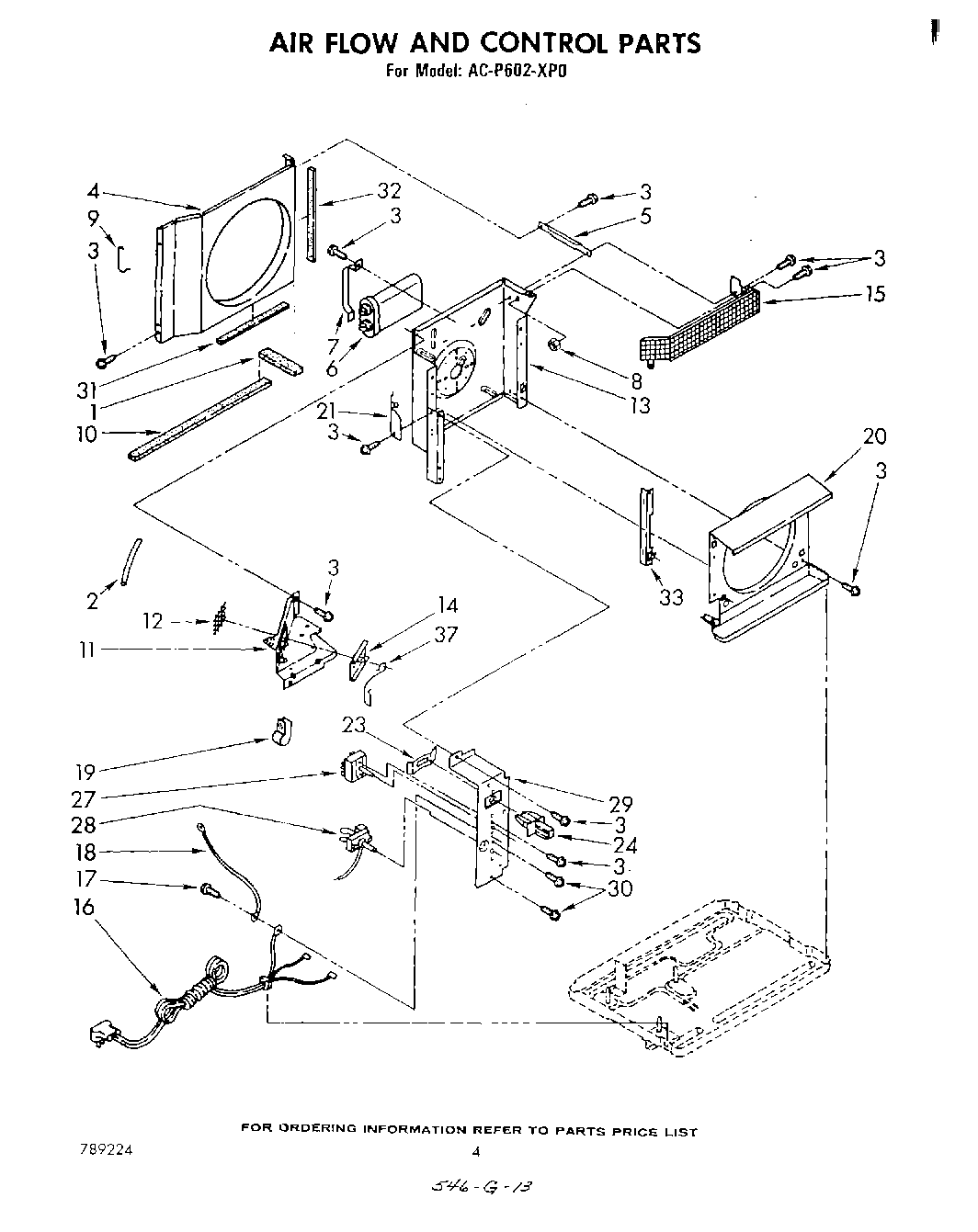

ACP602XP0 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
3	Screw, Repair
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	Seal, Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Clamp, Cable
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Retainer, Detent Spring
24	Actuator, Exhaust Door
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
33	Bracket, Evaporator Mounting
37	Guide, Energy
37	List, Repair Parts
37	212643 Whirlpool Refrigerator Permagum Sealer
37	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
37	Arm, Exhaust Door
37	WPL 950318
37	WPL 649939
37	Wire, 25“ Roll (Black 12 GA.)
37	Wire, 25“ Roll (White 12 GA.)
37	Insulation, Fiberglass (1/4“ x 24“ x 48“)
37	Wire, Red, (25 Ft.)
37	Lacquer, Starlight Gray (1/2 Pt. Uncut)
37	Cover, Winter (19“x12“x14“)
37	WPL 799351
37	Sheet, Service Tec
