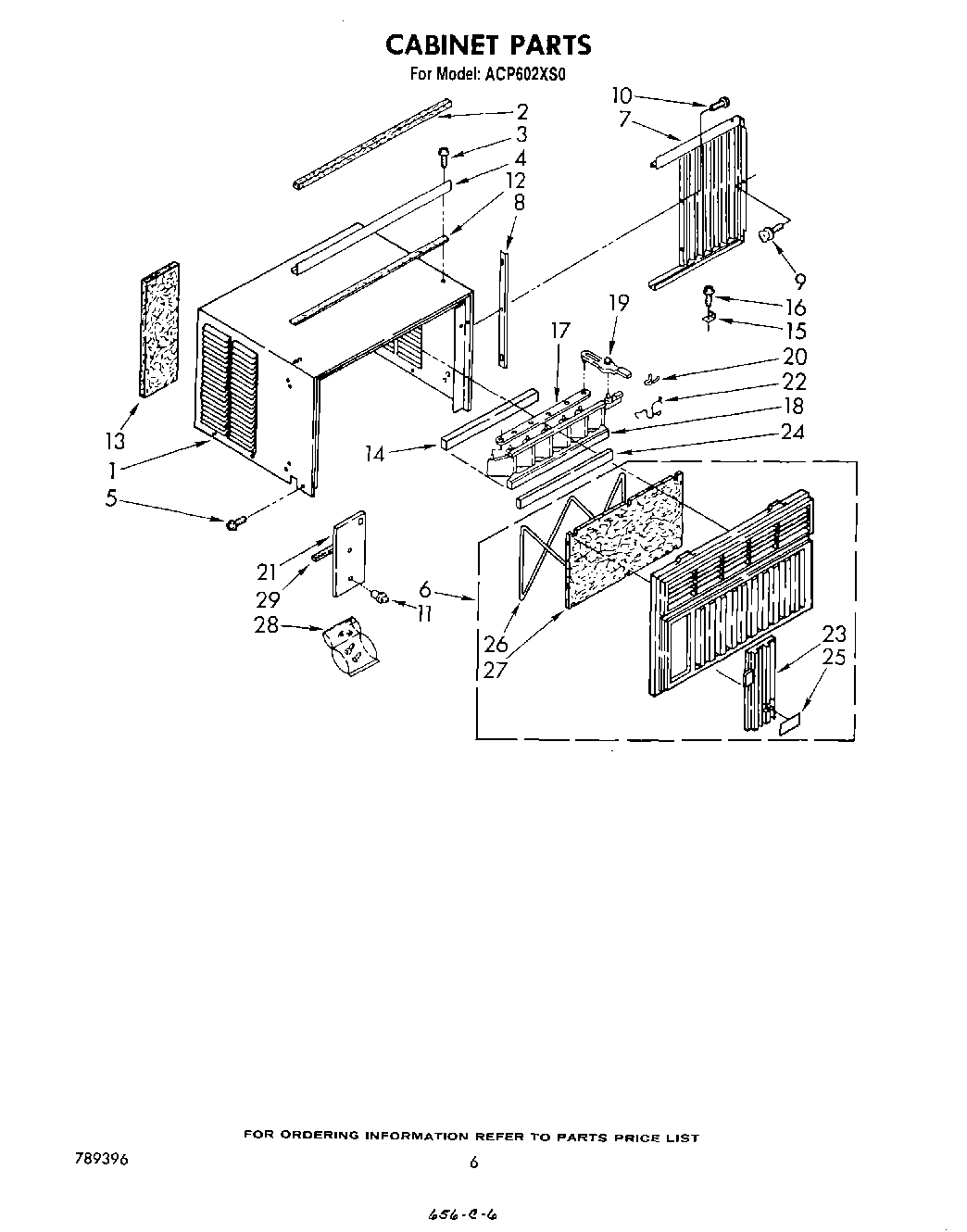

ACP602XS0 04 – CABINET

Products

Position	Product
	Installation, Instructions
	Sheet, Tech And Wiring Daigram
	Guide, Use and Care
	List, Repair Parts
	Guide, Energy
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489128 Whirlpool Refrigerator Screw
6	Front, Cabinet Assembly
7	Housing, Curtain (R.S.)
7	Housing, Curtain (L.S.)
8	Retainer, Curtain (2)
9	Thumbscrew (2)
10	Screw, 8 x 7/16
11	Knob, Control
12	Seal, Strip
13	Seal, Rear Cabinet Flange
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Plate, Escutcheon
22	Clip, Mtg. (2) (Base to Front)
23	Door, Control
24	Seal, Vertical Louver
25	Plate, Name
26	Retainer, Filter
27	Filter
28	Bag, Accessory
29	WP854334 Whirlpool Air Conditioner Sealing Strip
