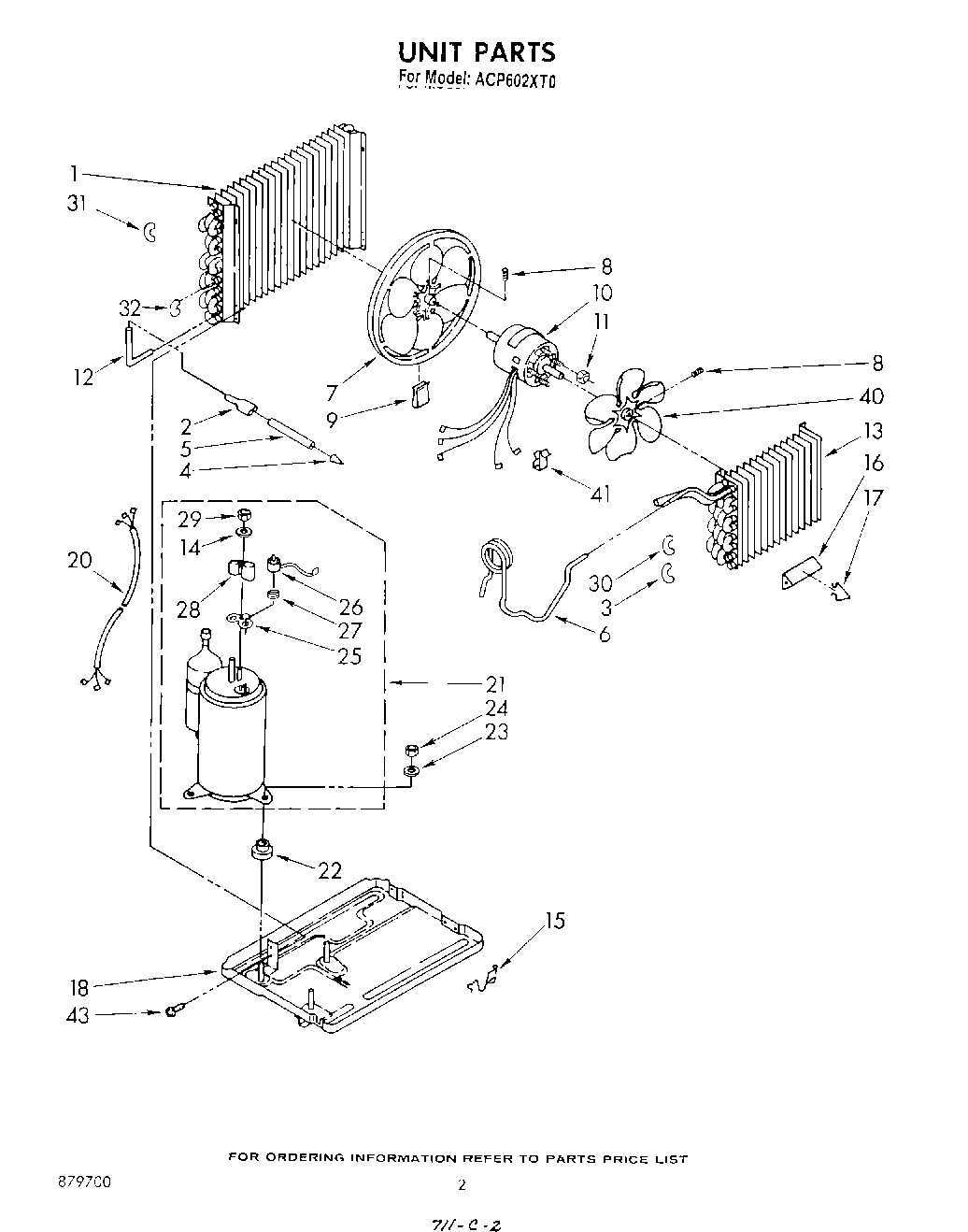

ACP602XT0 02 – UNIT , LITERATUREadmin2025-04-26T10:57:26+00:00ACP602XT0 02 – UNIT , LITERATURE
Products
| Position | Product |
|---|
| Installation, Instructions |
| Guide, Use and Care |
| Sheet, Tech And Wiring Daigram |
| Guide, Energy |
| List, Repair Parts |
| 1 | Condenser |
| 2 | Tube, Flow Divider |
| 3 | Bend, Return Evaporator (11) |
| 4 | Strainer |
| 5 | Tube & Strainer (Includes Item 23) |
| 6 | Tube, Restrictor (Length 46.0``) |
| 7 | Blade, Fan |
| 8 | Setscrew, 5/16 x 1/4 |
| 9 | Clip, Fan Balancing |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | Tube, 90~ Connect |
| 13 | Evaporator |
| 14 | Gasket, Nut |
| 15 | Clip, Mtg. (2) (Base to Front) |
| 16 | Anticipator, Temperature |
| 17 | Clip, Anticipator |
| 18 | Base |
| 20 | Harness, Wiring |
| 21 | Compressor Assembly |
| 22 | Grommet |
| 23 | WP120393 Whirlpool Washer Assembly |
| 24 | Nut, Hex (4) |
| 25 | WP950035 Whirlpool Cover Gasket |
| 26 | WP1161170 Whirlpool Air Conditioner Overload |
| 27 | Spring, Overload |
| 28 | WP950036 Whirlpool Cover Assembly |
| 29 | WP950027 Whirlpool Mounting Nut |
| 30 | Bend, Return Evaporator (4) |
| 31 | Bend, Return Condenser (4) |
| 32 | Bend, Return Condenser (10) |
| 40 | Fan, Blade Evaporator |
| 41 | Clamp, Wiring |
| 43 | Screw, Repair |
| 43 | WP489069 Whirlpool Compactor Screw |
